8.1.2 Function
Fig.22:
Whenconnecting thecontrol unit forthe first time,a lubricationstarts.
Every time the voltage (ignition) is activated, the red and green LED glow for 1,5 sec and show the function of the control
unit.
If voltage is interrupted during the cycle or lubrication process (ignition switched off) the data are stored in the data
memory of the control unit. When the voltage (ignition) is switched on again, the cycle process starts from where it has
beeninterrupted.
If the voltage is activated, an intermediate lubrication can be initiated at any time by pressing the according button. The
currentcycle dataare deleted anda new lubricationstarts immediately.
Some errors have to be reset by pressing the intermediate lubrication button. Then the pump immediately starts with a
newlubrication.

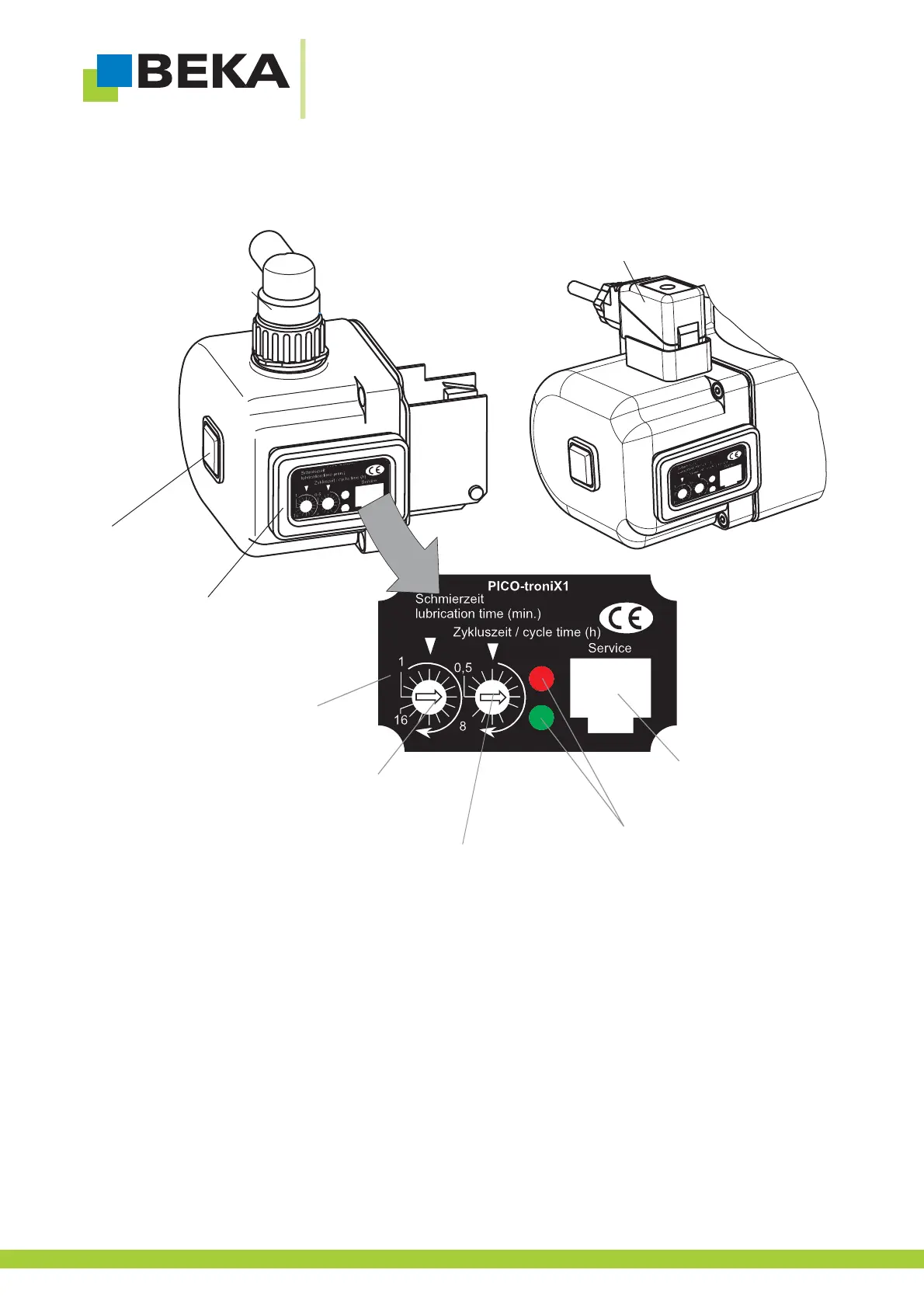

Switch to set
lubrication duration
Switch to set cycle time
Connection for
system diagnose
Control unit display
Intermediate
lubrication button
Connection plug
bayonet plug 7-poles
Connection plug
Hirschmann plug 7-poles
Display sticker
LEDs to display function condition
