13. Repair
Immediatelyrepair thepump if youfind damages duringthe maintenance.
Possiblenecessary spareparts are listedin 17. sparepart drawingand 18. sparepart list.
Avoid electrostatic discharge! There are electronic components integrated into the central lubrication pumps
which might be destroyed by electrostatic discharge. Observe the safety precautions against electrostatic
discharge according toDIN EN61340-5-1/-3. Ensure thatthe environment(persons, workplaceand packing)
iswell groundedwhen handling thesecentral lubrication pumps.

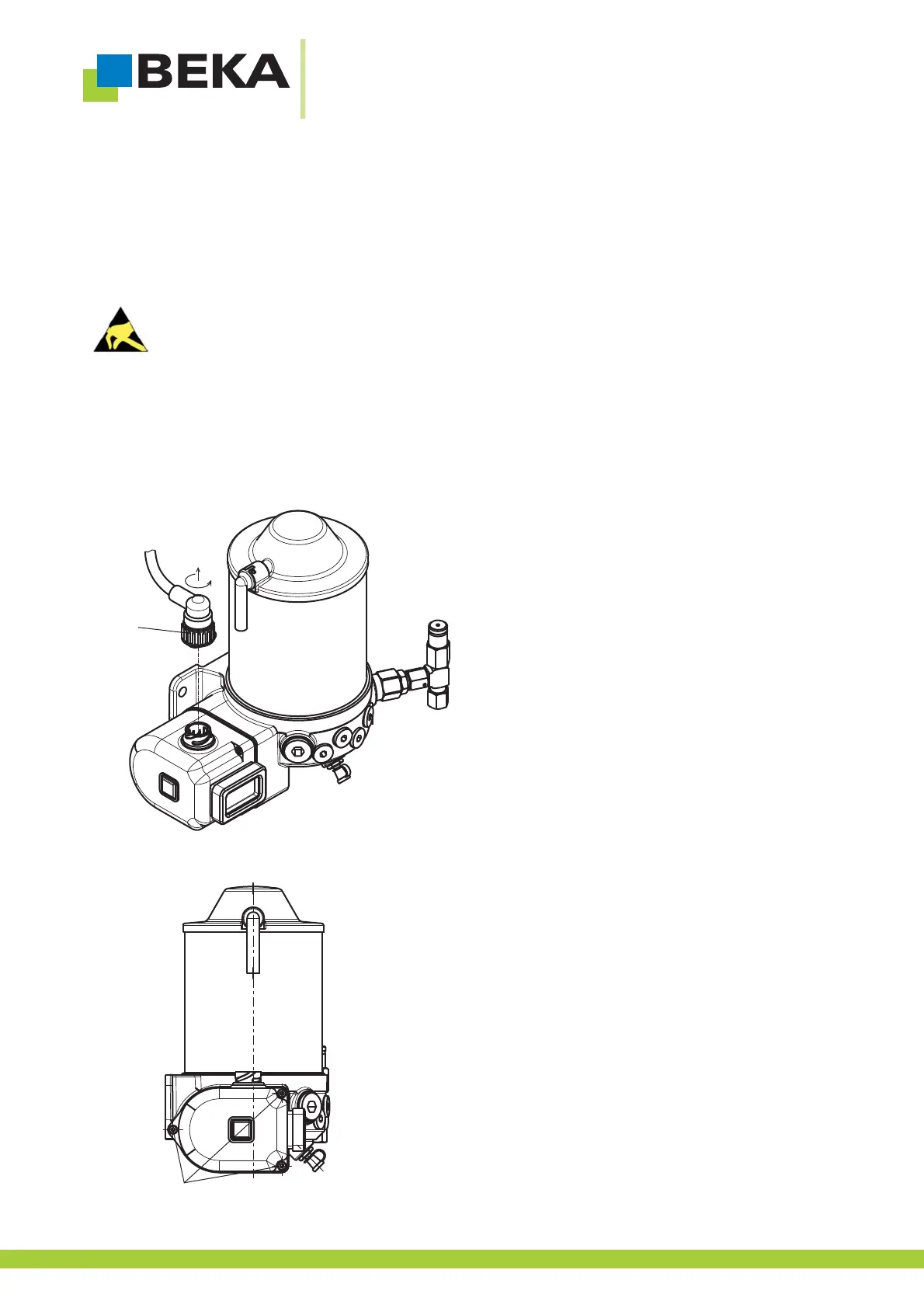

13.1 Change of the integrated control unit
a) Pull off the plug from the central lubrication pump (see 10.3 electric connection) (pos. 1, fig. 62) and protect the
systemfrom unintentionalactivation.
Fig.62:
b) Removethree cylinderscrews (Pos. 2,Fig. 63) bymeans ofahexagon wrenchAF3.
Fig.63:
