FULL SIDE WASHER
16 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation
Utilities
Pneumatic

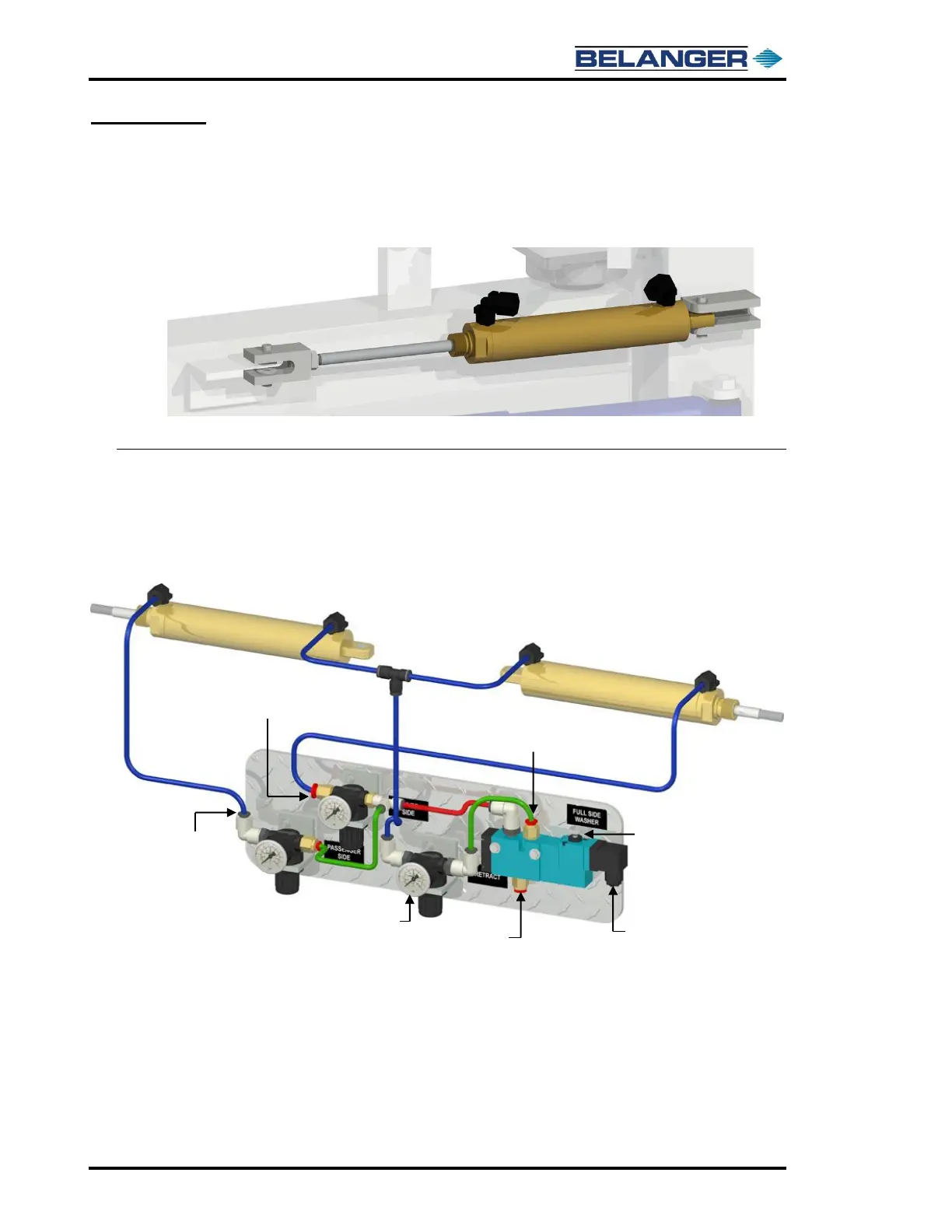

1) Connect the supplied 1/4" airline to the Extend and Retract plastic elbows located on the boom
cylinders.
Boom cylinders with 1/4" plastic elbows
Pneumatic Air Panel: Hydraulic (if applicable)
1) Supply 110VAC to the MAC valve.
2) Complete air circuit connections as shown below.
Retract
Extend
Manual Over-ride
110VAC In
Main air supply
90-PSI minimum
120-PSI maximum
Wheel retract regulator
Regulated air supply
to passenger side
boom cylinder
(extend), 1/4” airline
Regulated air supply to driver side
boom cylinder (extend), 1/4” airline
Regulated air supply to driver and passenger
side boom cylinders (retract), 1/4” airline
