FULL SIDE WASHER
1MANUL854 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167 -5470 * Ph (248) 349-7010 * Fax (248) 380-9681 17
Installation

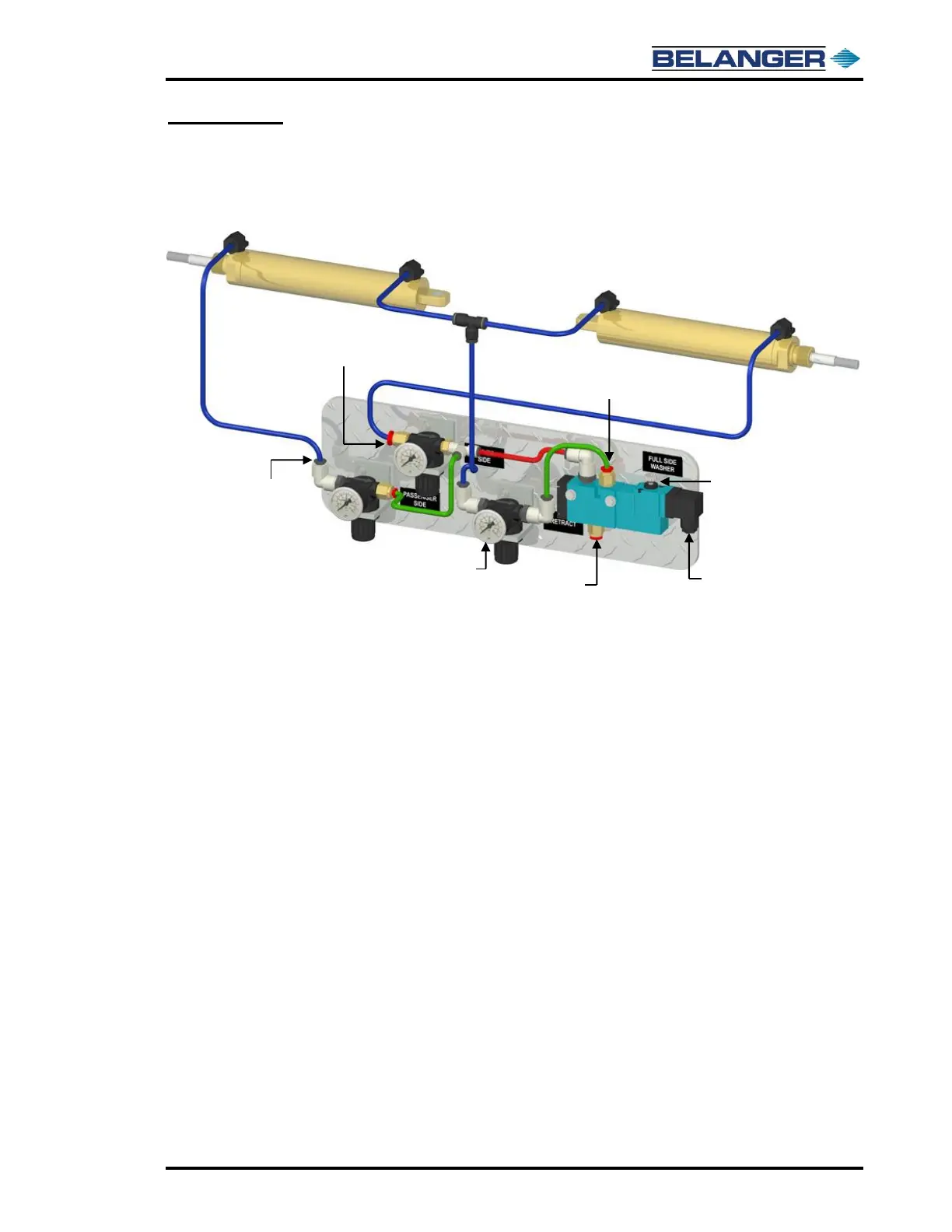

Utilities
Pneumatic Air Panel: Electric (if applicable)
Manual Over-ride
110VAC In
Main air supply
90-PSI minimum
120-PSI maximum
Wheel retract regulator
Regulated air supply
to passenger side
boom cylinder
(extend), 1/4” airline
Regulated air supply to driver side
boom cylinder (extend), 1/4” airline
Regulated air supply to driver and passenger
side boom cylinders (retract), 1/4” airline
