FULL SIDE WASHER
22 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation
Waves and Fins Cleaning Material
Lower Side Wheels
The fill for the lower side wheels is the same as the Belanger, Inc. Low Side Washer. This
section will assist in the installation of the lower side-wheel wash material.
Do not install any cleaning material until all equipment has been installed, turned on, and
checked for hydraulic, pneumatic, and water leaks.

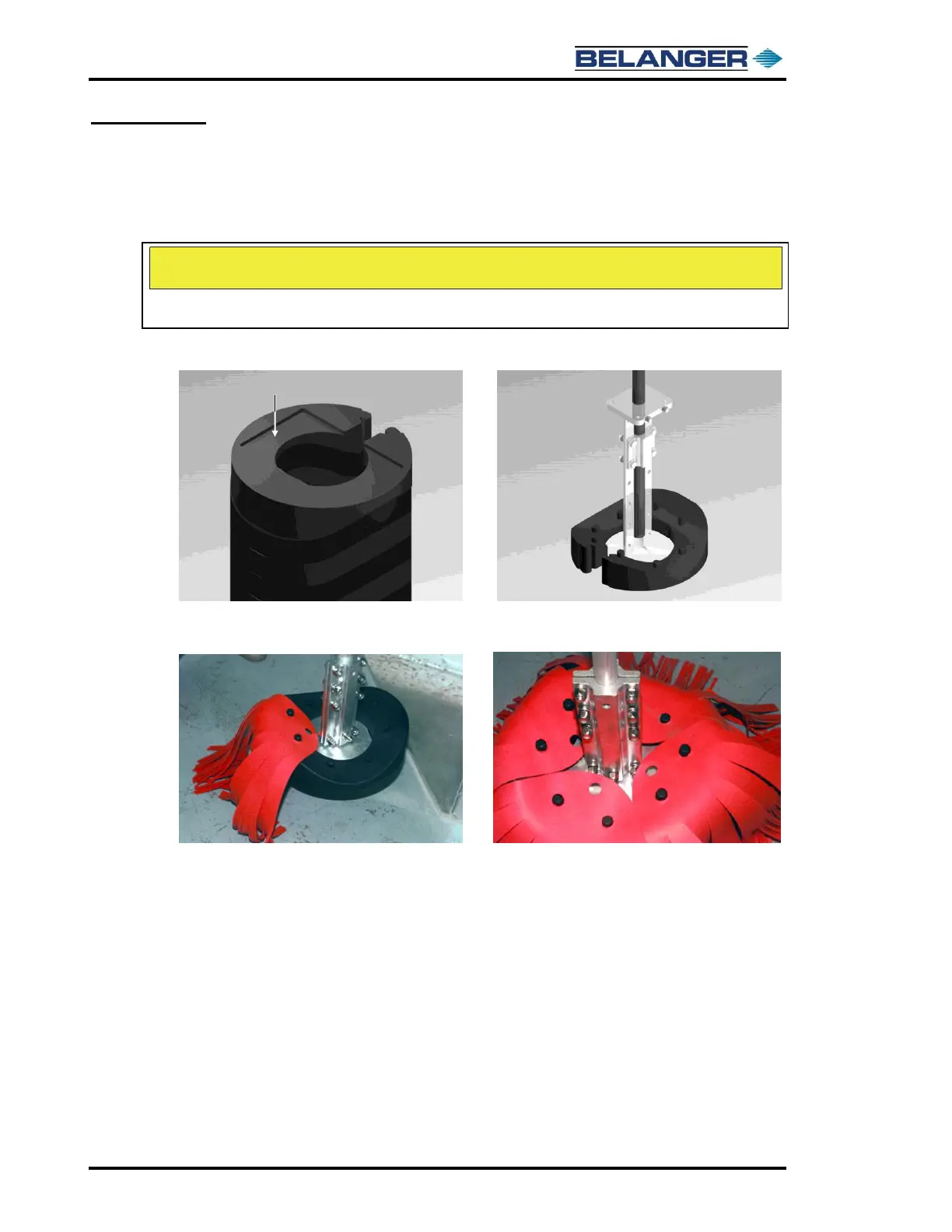

1) Install the bottom drive wave and seat counter-bore over the drive plate.
2) Locate the 24” Fins™. Place 4 pieces over pins on the bottom drive Wave™. One piece of wash
material should straddle the opening on each Wave™.
3) Install next Wave™ with slot opposite the opening on the previous one.
4) Repeat steps 2 and 3 until 9 waves have been stacked on top of the bottom Wave™ (total of 10
rows of wash material).
5) Press down on the top Wave™ stack to seat the wash material and verify the bottom Wave™ is
on the drive plate.
