FULL SIDE WASHER
1MANUL854 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167 -5470 * Ph (248) 349-7010 * Fax (248) 380-9681 23

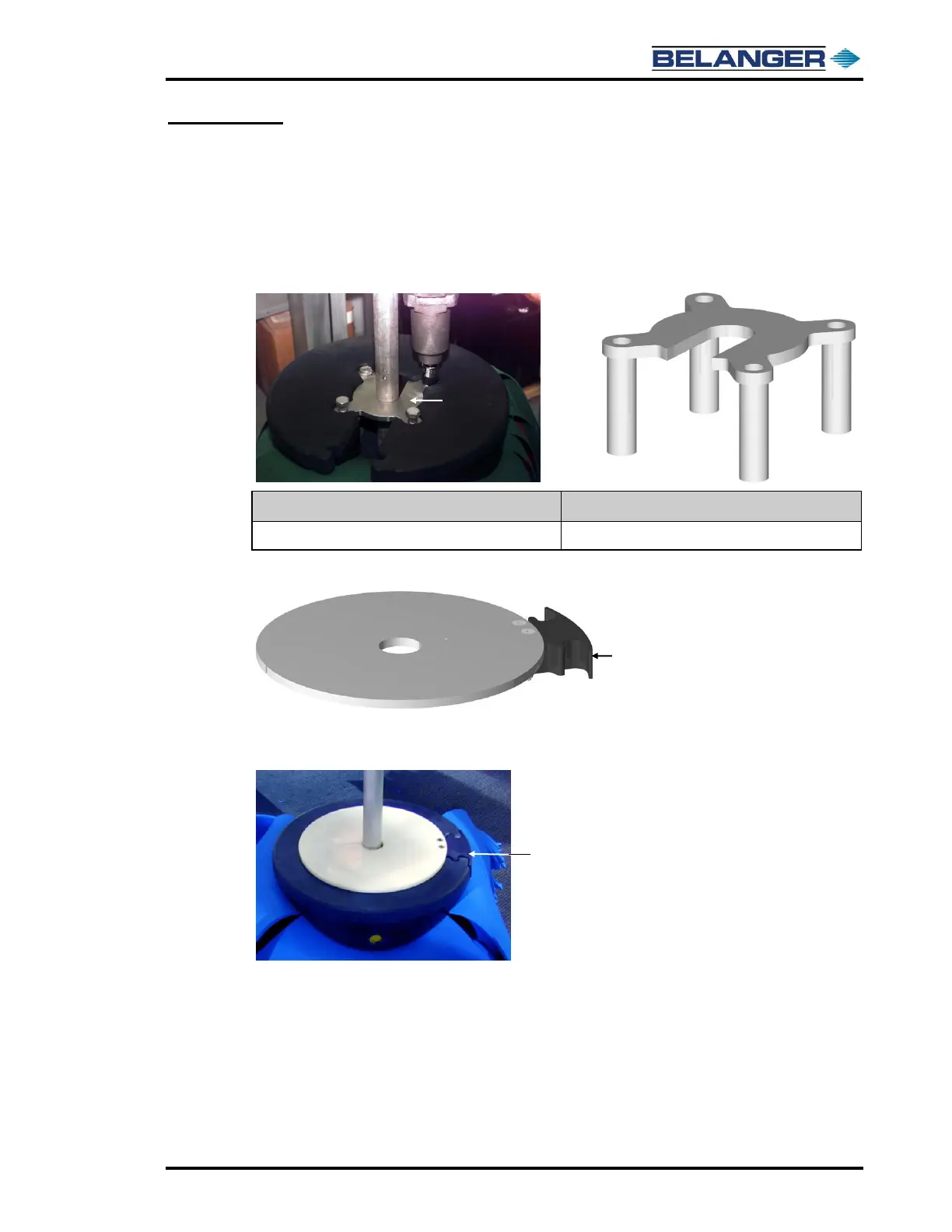

Installation
Waves and Fins Cleaning Material
Hitch Hiker Hubs
The Hitch Hiker is a clutched wheel that periodically spins independently from the lower side
wheel. This section will assist in the installation of the Hitch Hiker hubs.
1) Install the top Wave™ cap and the cloverleaf assembly.
2) Secure with (4) 9/16-12 bolts and tighten until cloverleaf bottoms out on the shaft clamp.
Cloth bolts
Neo-Tex™ bolts
9/16-12 x 6-1/2”
9/16-12 x 8”
3) Locate the Neolite discs and the plastic filler inserts and fasten them together.
4) Place it on top of the hub assembly and press it down until the insert is flush with the surface of
the lower side-wheel top cap.
Cloverleaf Close-up
Plastic Disc
Plastic Filler Insert
Plastic Filler Insert
Cloverleaf
Assembly
