FULL SIDE WASHER
24 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL854
Installation
Waves and Fins Cleaning Material
Hitch Hiker Hubs

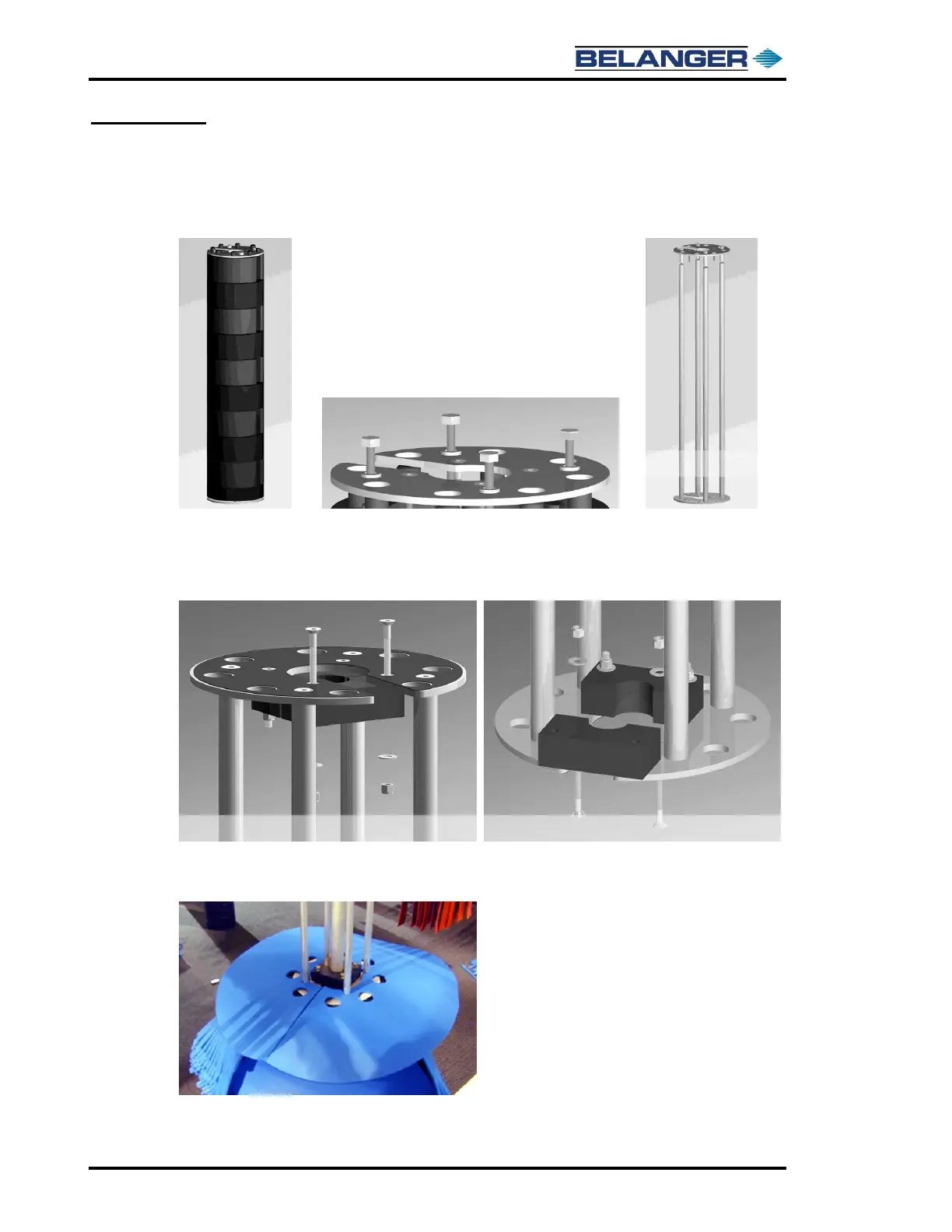

5) Remove the Hitch Hiker Waves™ from their packages (below, left). Remove the top retainer plate
and remove the plastic Waves™ from the Hitch Hiker frame assembly (below, center).
6) Turn the frame assembly upside down and remove the front half of the plastic bushing on both
ends (the side that covers the slotted opening is the front) as shown below, left. Turn the frame
back over and place it on top of the white plastic disc. While holding the frame assembly up,
replace the lower front side bushing and tighten it from the bottom (below, right).
7) Locate the skirts and place one of them on top of the hub assembly. Place a second skirt on top of
the opposite wheel.
