SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 12
Inspection
Equipment to Inspect Before Installation
1) The Motor & LED Electrical Cables have been pre-routed through the Arm Assemblies and
the ends are extending out through the conduit fittings.
It is recommended that a licensed electrician is contracted to perform all electrical installations.
2) The Motor Cable and LED Cable, on the Pivot end of the Arm, will be connected to their
corresponding Main Power Supply Line in the Electrical Enclosure on the Leg Assembly. The
other end of the Motor Cable will be connected to the Motor. These electrical connections will
be explained in the Utilities Section of this manual and should be performed by a licensed
electrician.
3) The other end of the LED Cable has a quick connector and will be connected to the Slip Ring
Wire inside the Motor/Gearbox Cover during the Installation of the SpinLite® FSW
Assemblies.

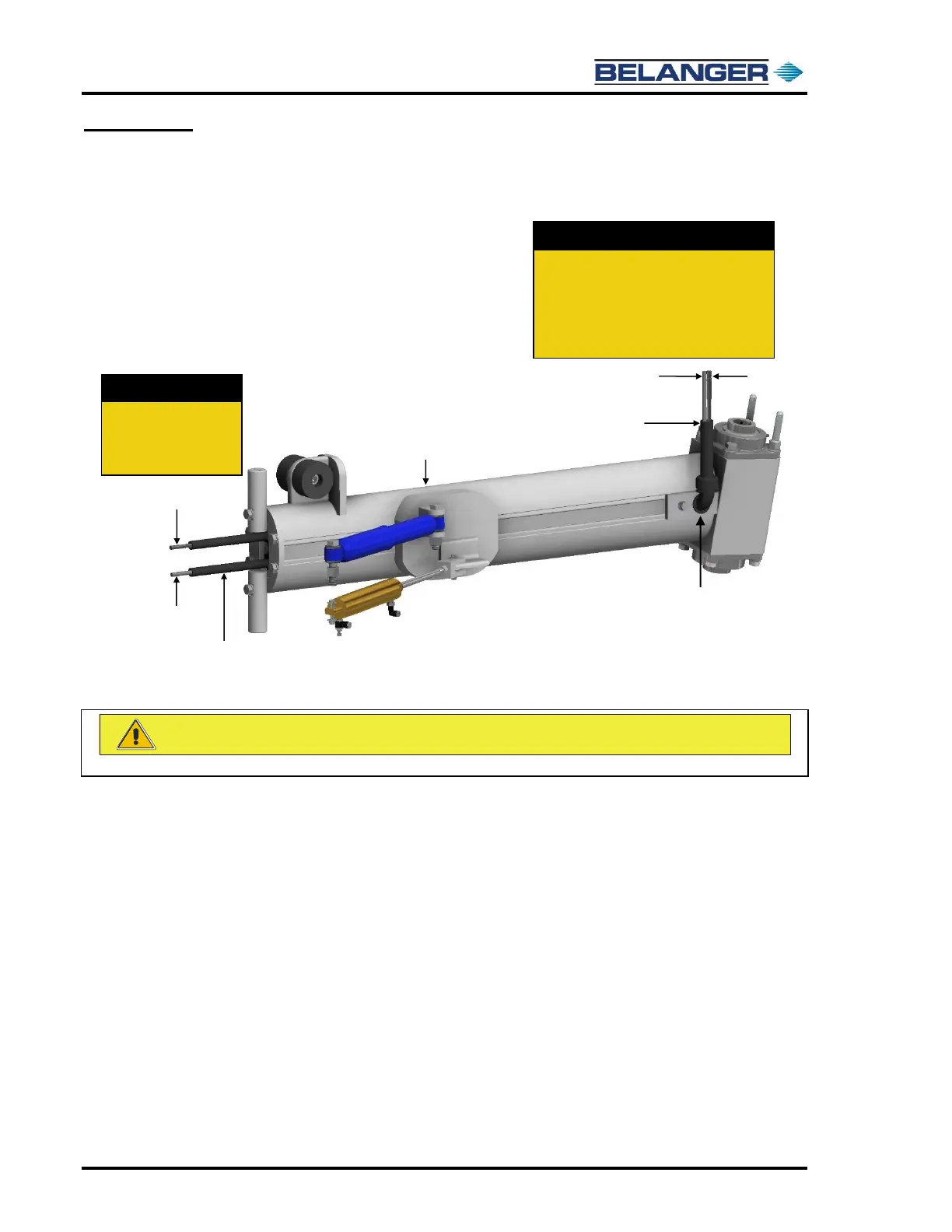

This end of the cables will
be routed to the Electrical
Junction Box on the Leg
Assemblies.
3/4” LiquidTite Conduit
encloses both Cables
This end of the Motor & LED Cables will be
routed into Motor/Gearbox Cover and the
LED Cable will be connected to the Slip Ring.
Then when the utilities are connected the
Motor Cable will be wired to the Motor by a
licensed electrician.
