SpinLite® Full Side Washer

1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 88

Maintenance

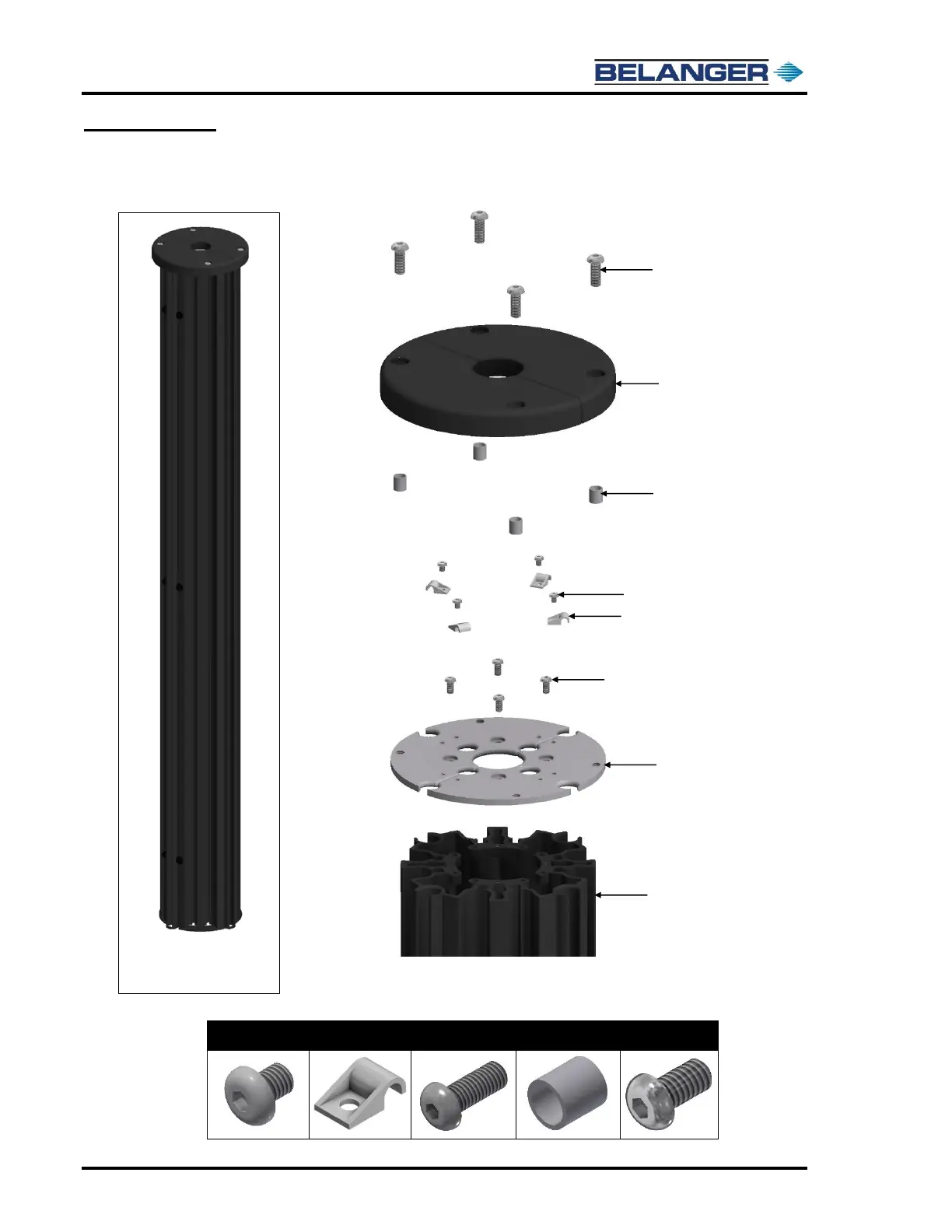

Exploded Parts View

Hub Assembly 111673: Hub Cover Components

1FSTNR- BH155

CLAMP330

1FSTNR-BH505

6144

1FSTNR-BH370

Complete Hub Assembly:

111673

1FSTNR-BH505 (4)

10354 (2)

6144 (4)

1FSTNR-BH155 (4)

1CLAMP330 (4)

1FSTNR-BH370 (4)

10353 (2)

111681 (2)
