Installation
Utilities
Pneumatic Connections: Air Panel to Cylinders
1) Mount the Air Regulation Panel in the equipment room and route a 1/4” poly-flow airline from
the Main Air Supply to the Air Panel and connect to the location shown below.
2) Label the Air Panel for the SpinLite® FSW. All labels for the Air Panel are to be field supplied.
3) Use 1/4” field supplied black poly-flow airlines for extending the Cylinders and 1/4” field
supplied gray poly-flow airlines for retracting the Cylinders on the SpinLite® FSW assemblies.
4) Measure the distance from the Air Panel to the Cylinders on the driver side and passenger
side SpinLite® FSW assemblies.
5) Cut two 1/4” black airlines to these measured lengths.

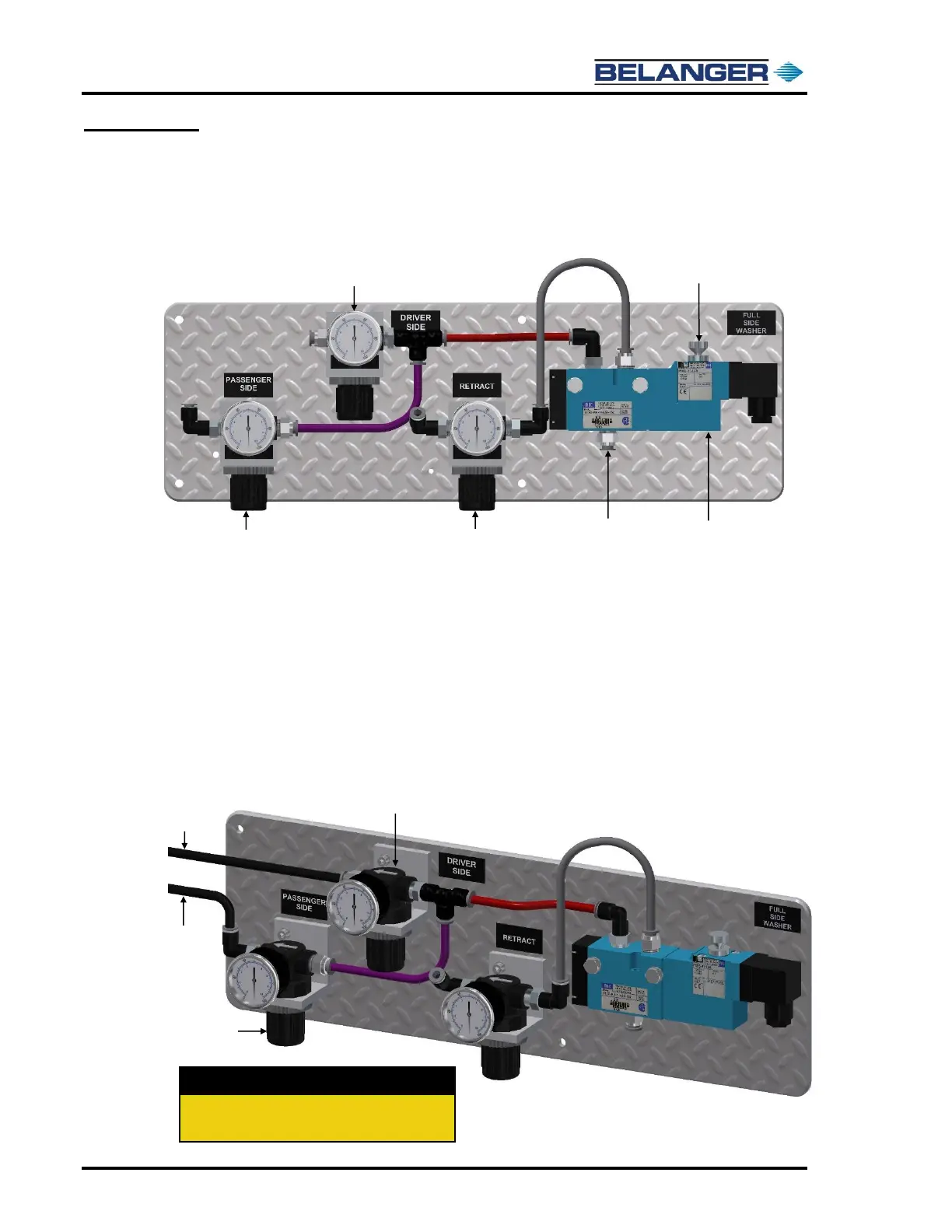

6) On the Air Panel, connect the driver side black airline to the Driver Side Extend Regulator and
the passenger side black airline to the Passenger Side Extend Regulator, shown below.
Manual Over-ride
Retract Regulator for
both DS & PS FSW
20 PSI
Retract Valve
Main Air Supply
90-PSI minimum
120-PSI maximum
Extend Regulator for
Driver Side FSW
90 PSI
Air Panel for
Cylinder on SpinLite®
FSW Assemblies
1/4” Black Airline
to Extend Driver
Side Cylinder
1/4” Black Airline
to Extend Passenger
Side Cylinder
DS Extend Regulator
PS Extend Regulator
Helpful Hint
Labels for the Air Panel Regulators are not provided
however, they are recommended for clarity.
Extend Regulator for
Passenger Side FSW
90 PSI
