Installation

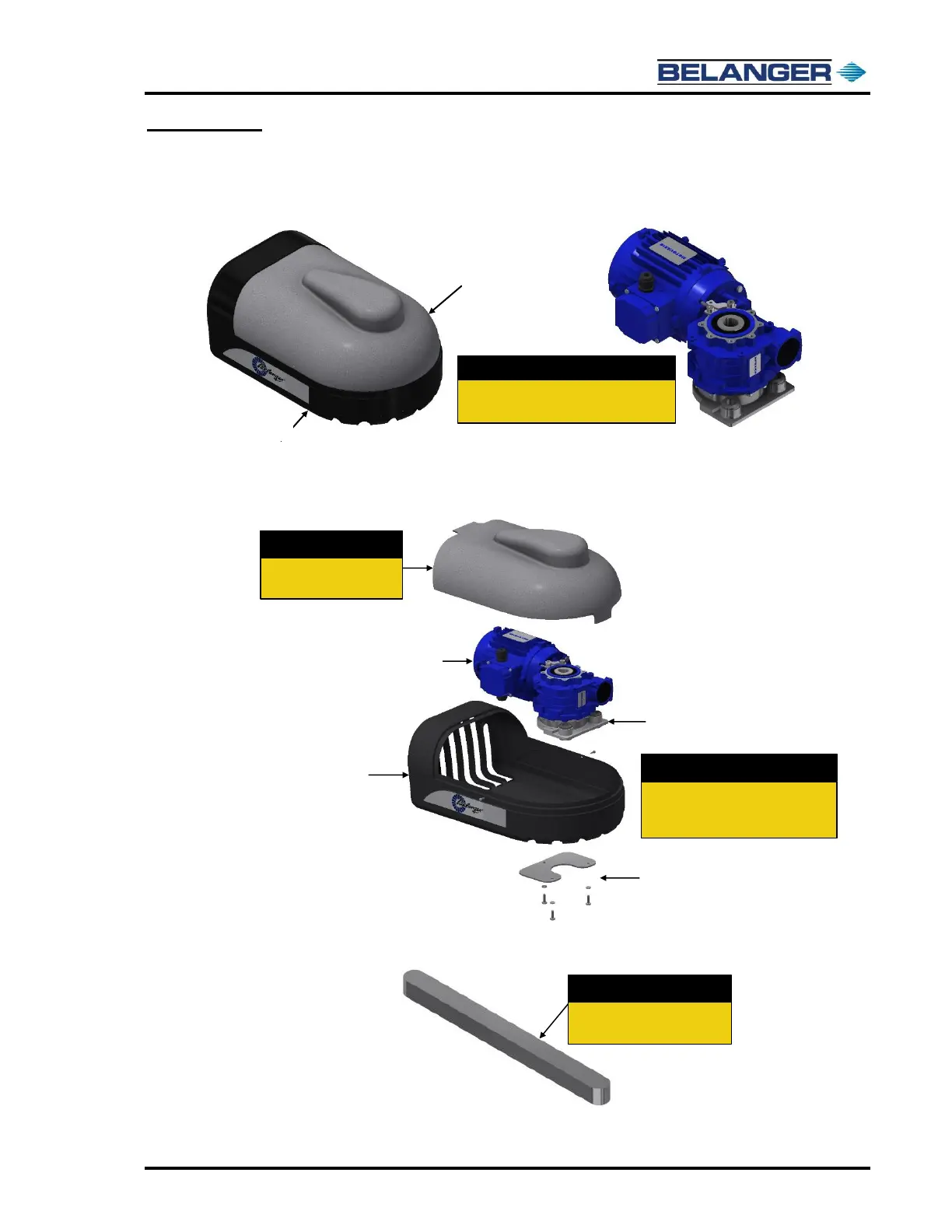

Connect the Motor/Gearbox and Slip Ring to the Drive Shaft
1) In the Accessory Box locate the two (2) Motor/Gearbox Cover with Mount Plate Assemblies and
the two (2) Motor /Gearboxes.
2) Remove the top of the cover from the Motor/Gearbox Cover Assemblies. Using the Mount Plate
and fasteners secure the bottom Motor Cover to the Torque Plate on the Motor/Gearboxes as
shown below.
3) Retrieve the two (2) Drive Keys from the Accessory Box.
4) Then for both the driver and passenger side SpinLite® FSW Assemblies do the following steps.
Torque Plate
Motor/Gearbox
Motor/Gearbox
Cover Assembly
Top Cover
Bottom Cover
Motor/Gearbox
Motor/Gearbox
Bottom Cover
Remove the top of the
Motor/ Gearbox Cover.
Step 2a:
Locate the two (2) Motor/Gearbox
Covers and two (2) Motor/Gearboxes.
Step 1:
Mount Plate
& Fasteners
Use the Mount Plate & Fasteners to
secure the bottom Motor Cover to
the Motor Torque Plate.
Step 2b:
Drive Key
Locate the Drive Keys (2) in
the Accessory Box.
Step 3:
