SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 28
Installation

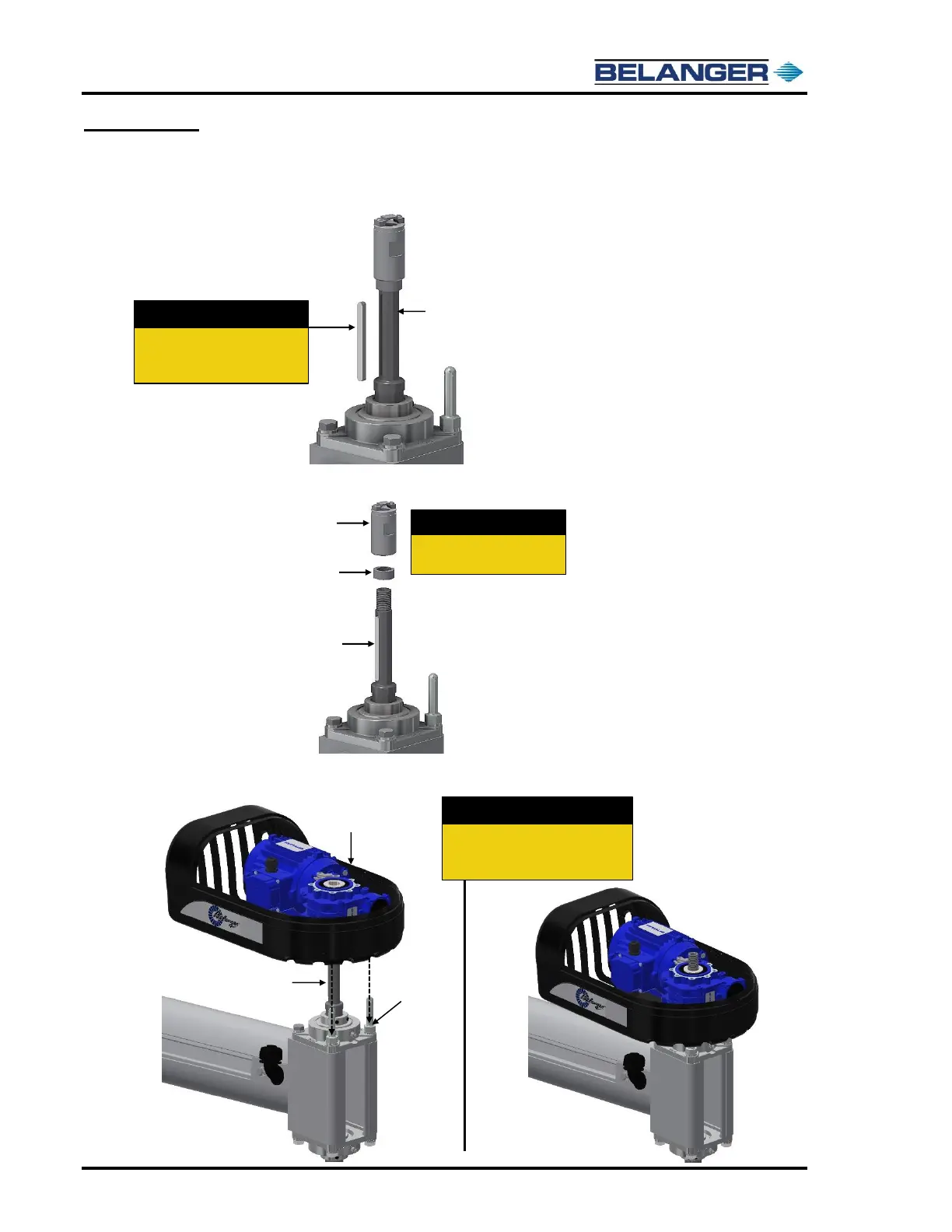

Connect the Motor/Gearbox and Slip Ring to the Drive Shaft
5) Apply Anti-Seize™ to the Drive Shaft, the Key, and the Key Slot. Place the Key into the Key Slot
on the Drive Shaft.
6) Remove the Slip Ring Shaft and Jam Nut from the Drive Shaft and set them aside.
7) Slide the Motor/Gearbox and Cover Assembly onto the Drive Shaft and into place over the Torque
Studs as shown below.
Key (apply Anti-
Seize™ to the
Key and the Key
Slot)
Slip Ring Shaft
Slip Ring
Jam Nut
Drive Shaft & Key
Drive Shaft
Torque
Studs (2)
Drive Shaft
Motor/Gearbox &
Cover Assembly
Slide the Motor/Gearbox & Cover
Assembly onto the Drive Shaft and
over the Torque Studs.
Step 7:
Remove the Slip Ring Shaft
and Jam Nut.
Step 6:
Apply Anti-Seize™ to the Key
and Key Slot then place the Key
into the Key Slot.
Step 5:
