SpinLite® Full Side Washer

1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 81

Maintenance

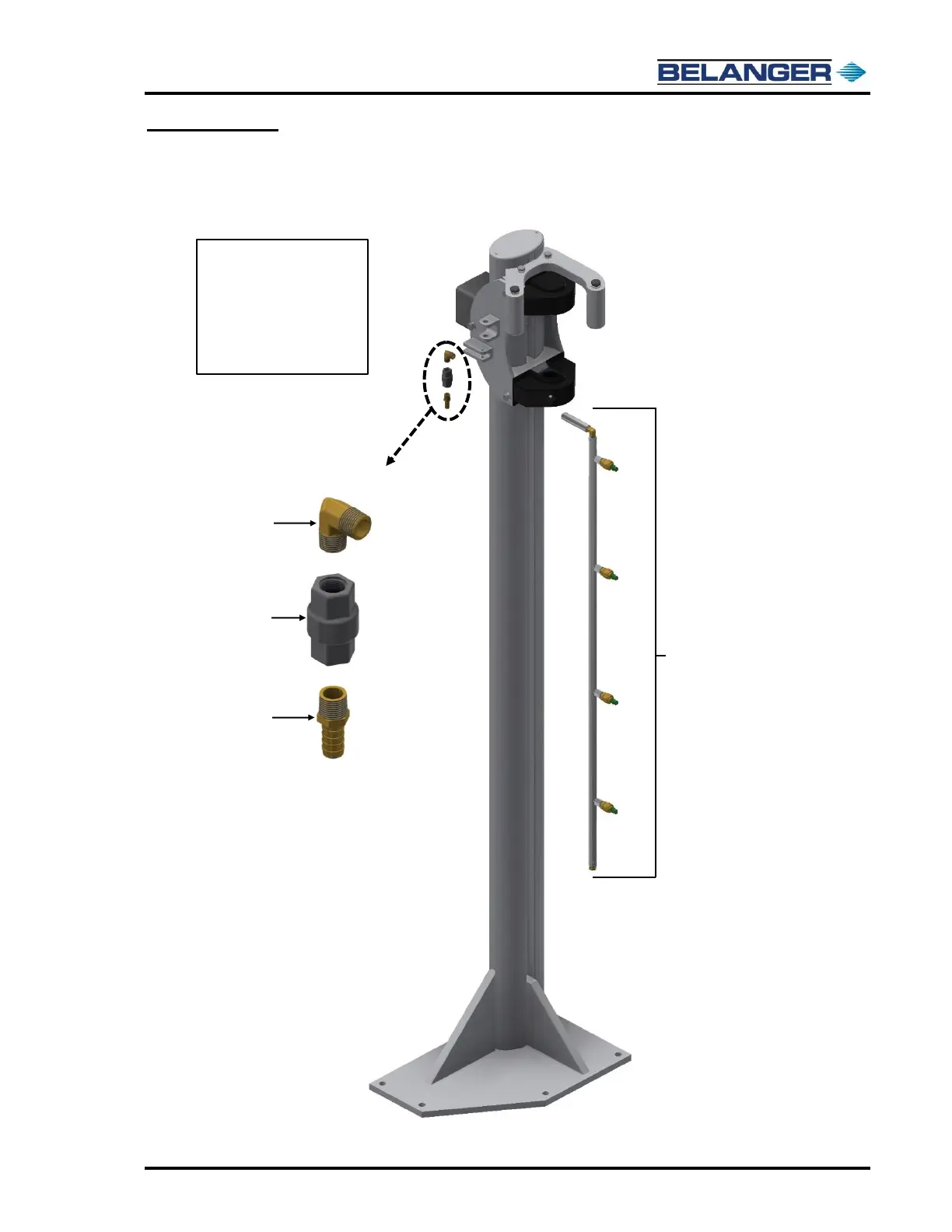

Exploded Parts View

Leg Assembly Components: Water Feed & Manifold Assembly

Complete Leg Assembly

Driver Side:

Silver PC: 111996

Aluminum: 110700

Passenger Side:

Silver PC: 111997

Aluminum: 110702

1VALVE-WA231

1ELBOW-BR381

1FTTNG-BH269

Manifold Assembly: 108730

See Exploded View

on following page
