SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 46
Installation
Utilities
Water Connections: Water Line to the SpinLite® Full Side Washers
At this point, the SpinLite® FSW assemblies have been installed in the tunnel and are ready to be
connected to the utilities. Begin by routing and connecting the water lines to the SpinLite® FSW
assemblies.
It is imperative that no foreign materials are in the supply lines before final connections are made.
To be sure of this, the lines should be blown out before the final hookup.
All utilities MUST be installed in accordance with all local and national codes.
1) Connect a field supplied 3/4" water hose line to the manifold in the back room and route it out to
the center of the tunnel.
2) Insert a field supplied 3/4" x 1/2" tee fitting into the water line and secure it with a 3/4” hose clamp,
as shown below.
3) Measure the distance from the tee to the Water Manifold on the driver side and passenger side
SpinLite® FSW assemblies.
4) Cut two 1/2” water hose lines, one for each SpinLite® FSW, to the measured length.

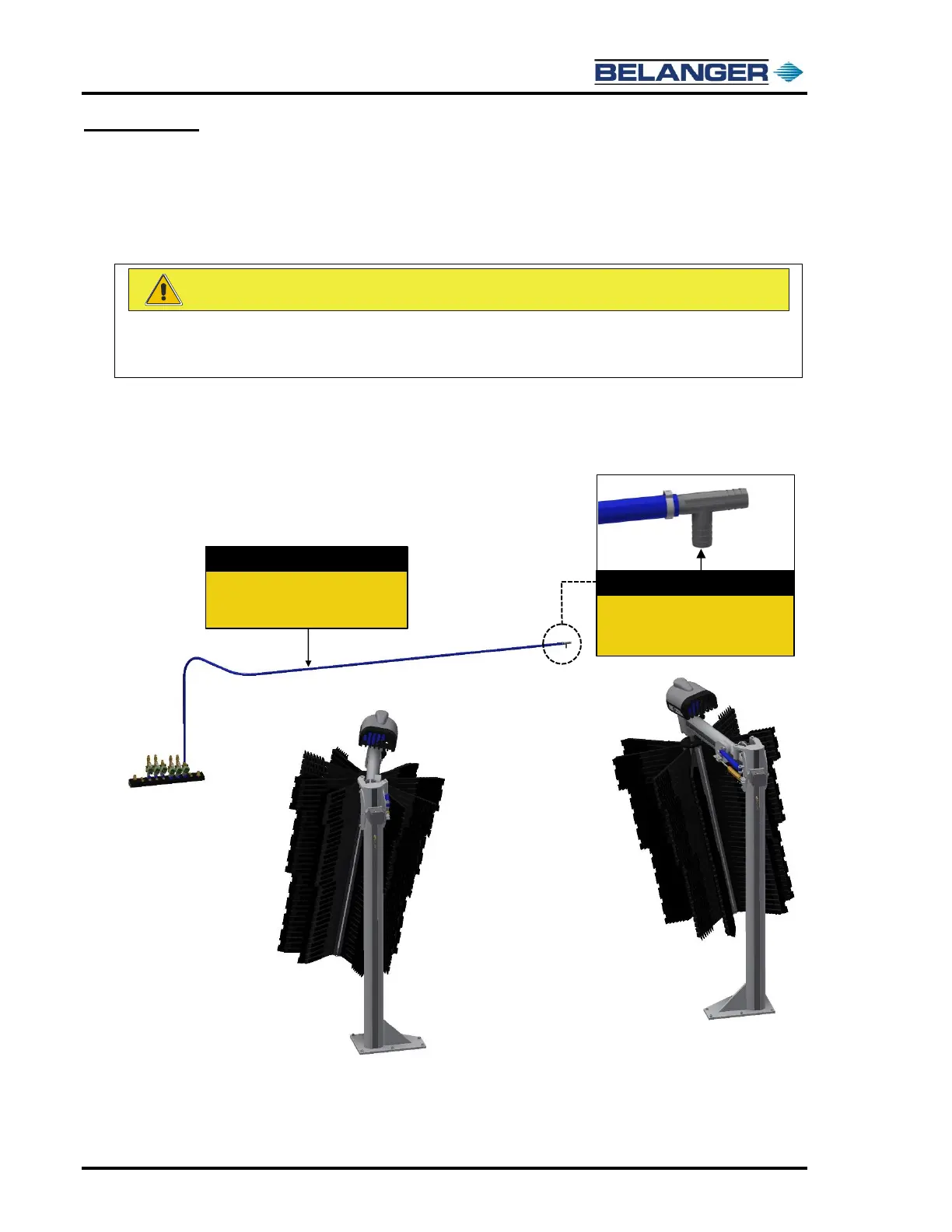

3/4” Water Hose
(Field Supplied)
Route a field supplied 3/4" Water
Hose from the backroom Manifold to
the center of the tunnel.
Insert a field supplied 3/4” x 1/2” tee
in the ¾” Water Hose and secure it
with a field supplied 3/4” hose clamp.
To Next Page
