SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 45
Installation
Filler Strip Installation for the SpinLite® FSW Assemblies

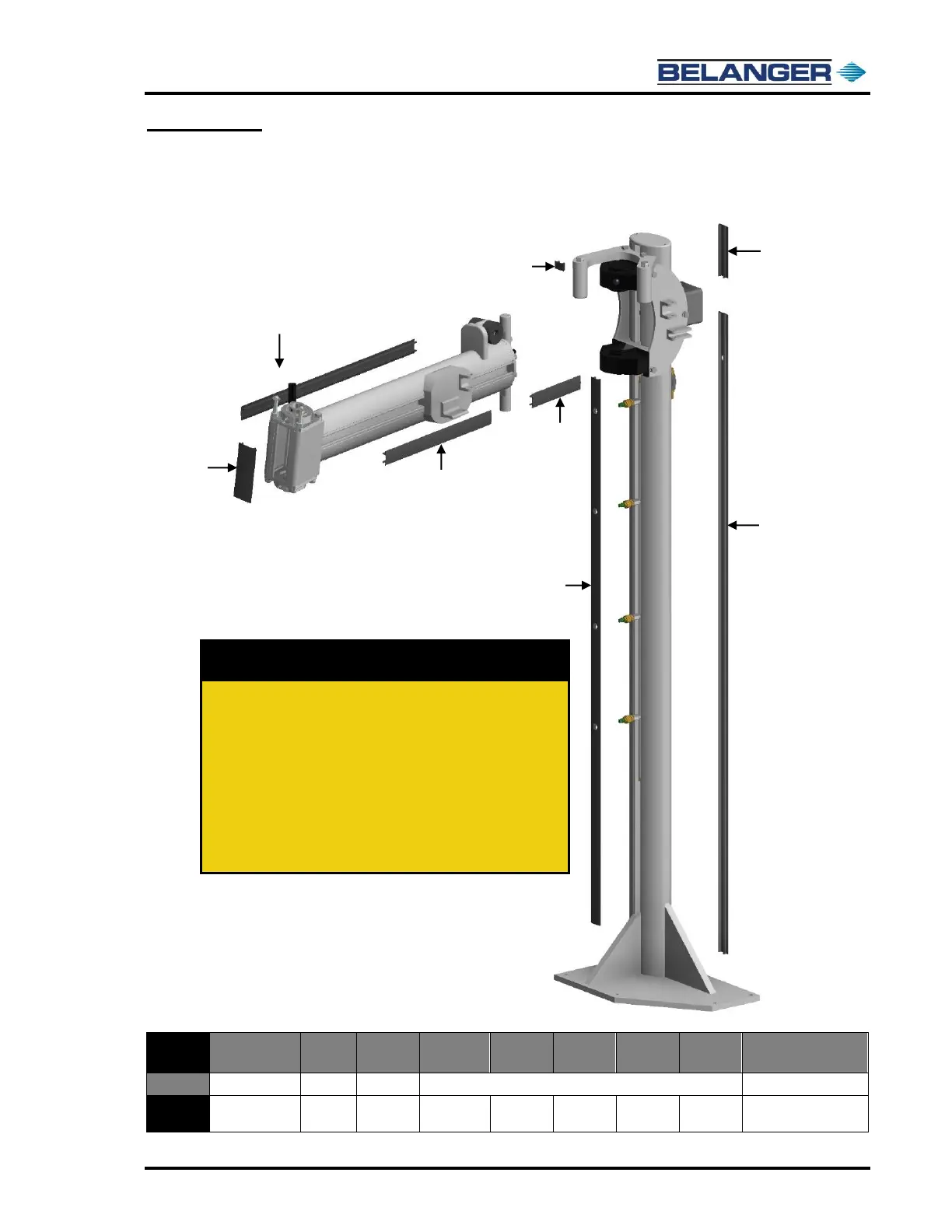

3) For the passenger side SpinLite® FSW Assembly use the image and chart below to cut the
Filler Strip sections to the lengths specified and secure them in place.
Item
A
B
C
D
E
F
G
H
Filler Strip Kit
Assembly
Silver
1PLSTC-EX082
7966
9774
1PLSTC-EX062: Use a 12’ Filler Strip to cut into specified lengths.
110746
Length
8”
75-1/4”
88-5/16”
7-1/16”
1”
37-15/16”
10-1/2”
23-1/4”
This Kit is for both DS
& PS FSW Assemblies
Passenger Side
SpinLite® FSW Assembly
B
* A
C
D **
** E
F **
H **
G **
Directions for Cutting Filler Strip Sections:
1.) For the length to cut each filler strip section refer to the chart
below.
2.) The * denotes filler strip section “A” (for the driver and
passenger side SpinLite® FSW assemblies) is to be cut from
the wider 2” x 18” filler strip 1PLSTC-EX082.
3.) Filler strip sections “B” and “C” are pre-cut to the correct
length and are ready to be installed.
4.) The ** denotes filler strip sections “D” thru “H” (for the driver
and passenger side FSW assemblies) are to be cut from the
narrower 12 ft. length of filler strip 1PLSTC-EX062.
