SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 53
Installation
Utilities
Electrical Connections: Motor
Verify Proper Rotation of Hub Assemblies
1) Test to see if the SpinLite® FSW assemblies are functioning properly by using the Controller
to turn on each of the SpinLite® FSW assemblies.

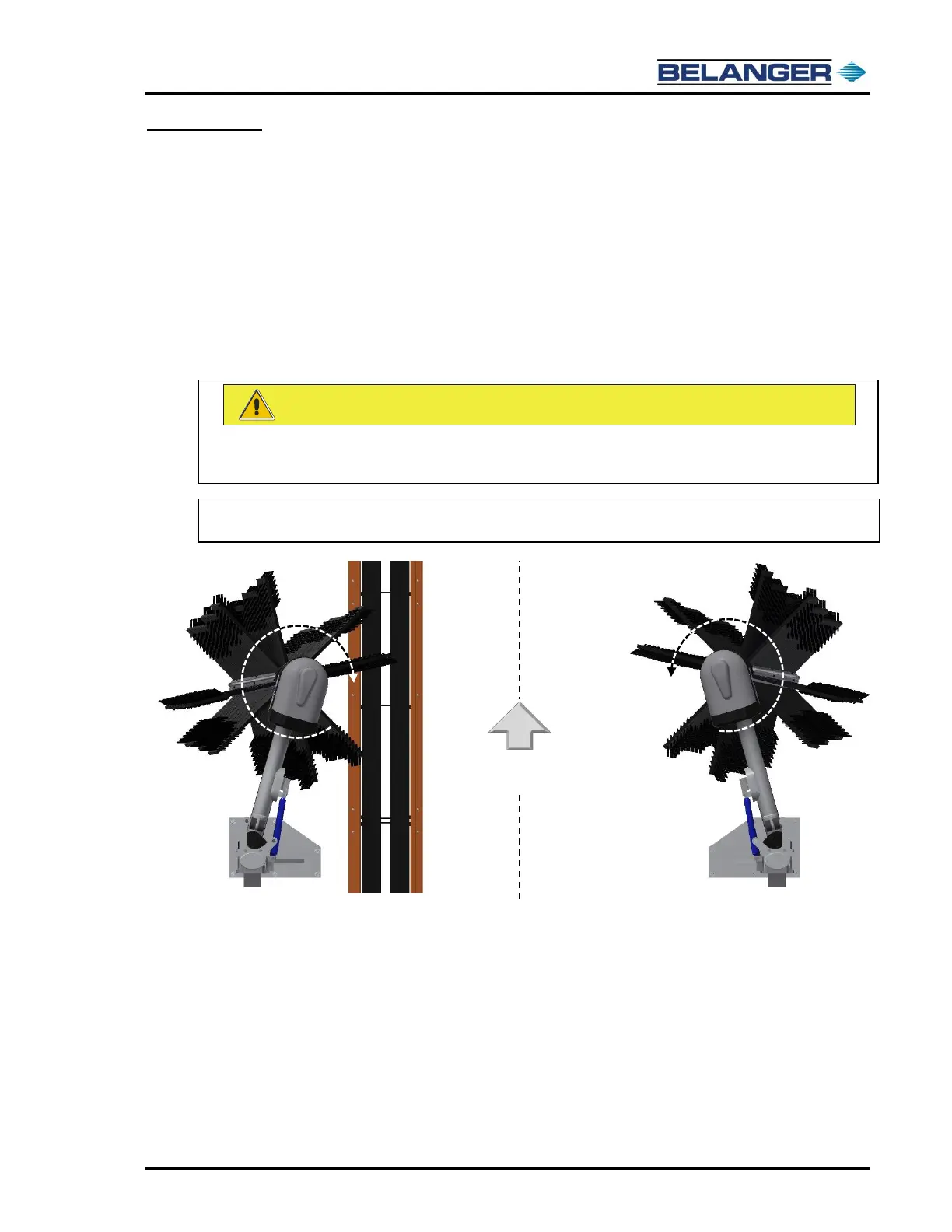

2) Confirm that the Hubs are rotating in the proper direction, see images below.
Rotation Direction:
• Driver Side: Clockwise
• Passenger Side: Counter Clockwise
It is recommended that licensed technicians are contracted to perform all utility installations.
All utilities MUST be installed in accordance with all local and national codes
Note: Be sure to match the hub rotation shown below. If the rotation is opposite as shown below,
reverse two leads to the electric motors on the overload located in the Control Panel.
3) If the Hubs are not rotating in the proper direction then reverse the two leads to the Motors on
the overload located in the Control Panel.
