Installation

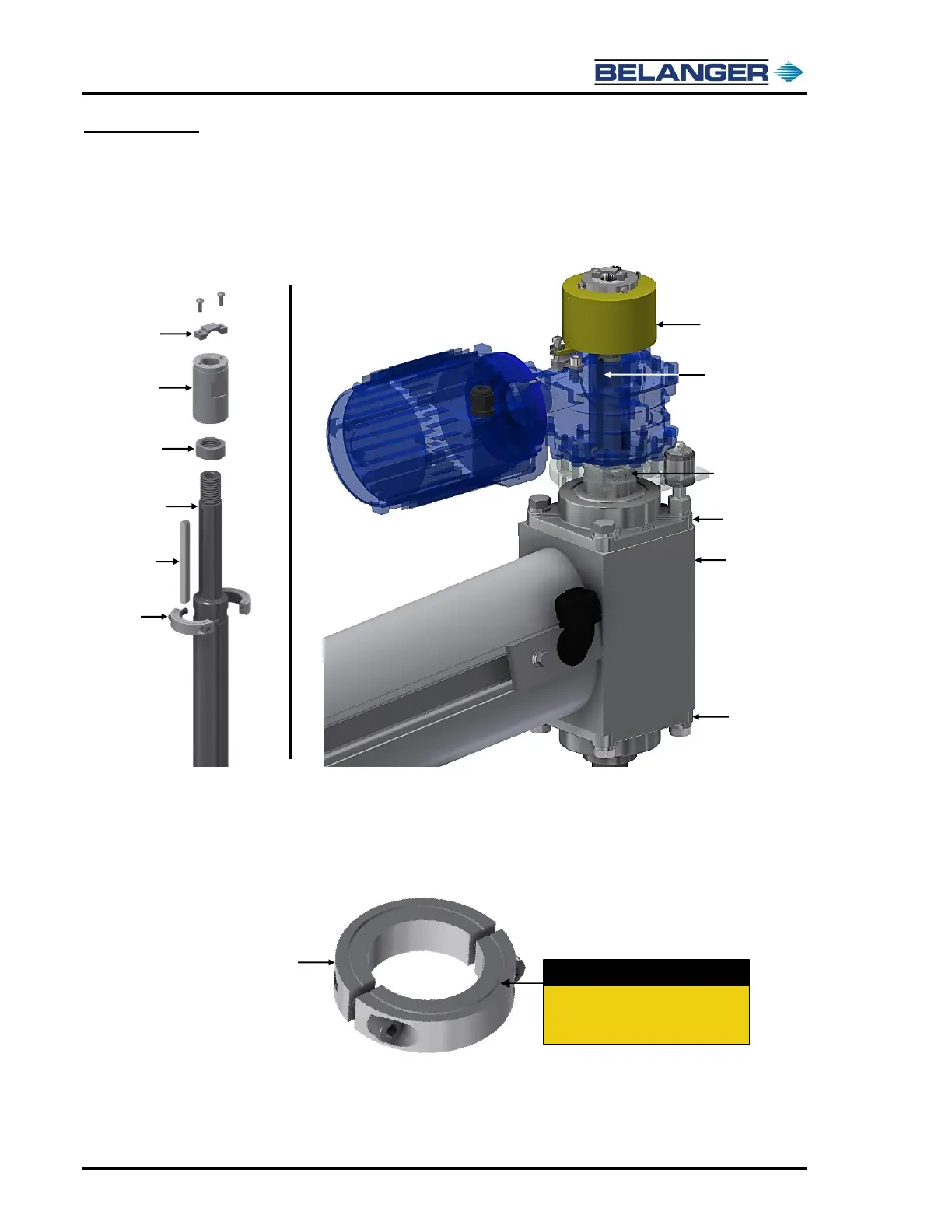

Install the Drive Shaft Components
The driveshaft is held in place using a steel key, two setscrews in each of the two shaft bearings, and a
split-locking collar. There is a groove in the driveshaft to accommodate the locking collar. See the images
below to understand how the complete assembly goes together then follow the instructions to properly
install the driveshaft components.
1) Locate the two (2) Drive Shafts that shipped with the SpinLite® FSW Assemblies. Verify that
the length of the Drive Shafts is 87-13/16”.
2) Locate the two (2) Locking Collars from the Accessory Box.
Key
Slip Ring
Locking Collar
Shaft Bearing
Bearing Mount
Locking
Collar
Drive Key
Slip Ring Shaft
Slip Ring
Jam Nut
Slip Ring
Wire Clamp
Drive Shaft
Shaft Bearing
Locking Collar
Orient the Locking Collar; it is to be
installed with the groove facing up;
away from the Shaft Bearing.
Step 2:
