SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 50
Installation
Utilities
Pneumatic Connections: Air Panels to Cylinders
10) Measure the distance from the tee to the Cylinder on the driver side and passenger side
SpinLite® FSW. Cut two 1/4” gray airlines, one for each FSW, to the measured length.
11) Connect the airlines to the tee fitting and route them to the appropriate SpinLite® FSW.
12) Connect each airline to the retract port on the Arm Cylinder, refer to the image below.
Electrical Connections: Air Panel to Controller
1) Supply 110 VAC to the retract valve on the air regulation panel from the carwash controller
unit.
It is recommended that a licensed electrician is contracted to perform all electrical installations.
All utilities MUST be installed in accordance with all local and national codes.

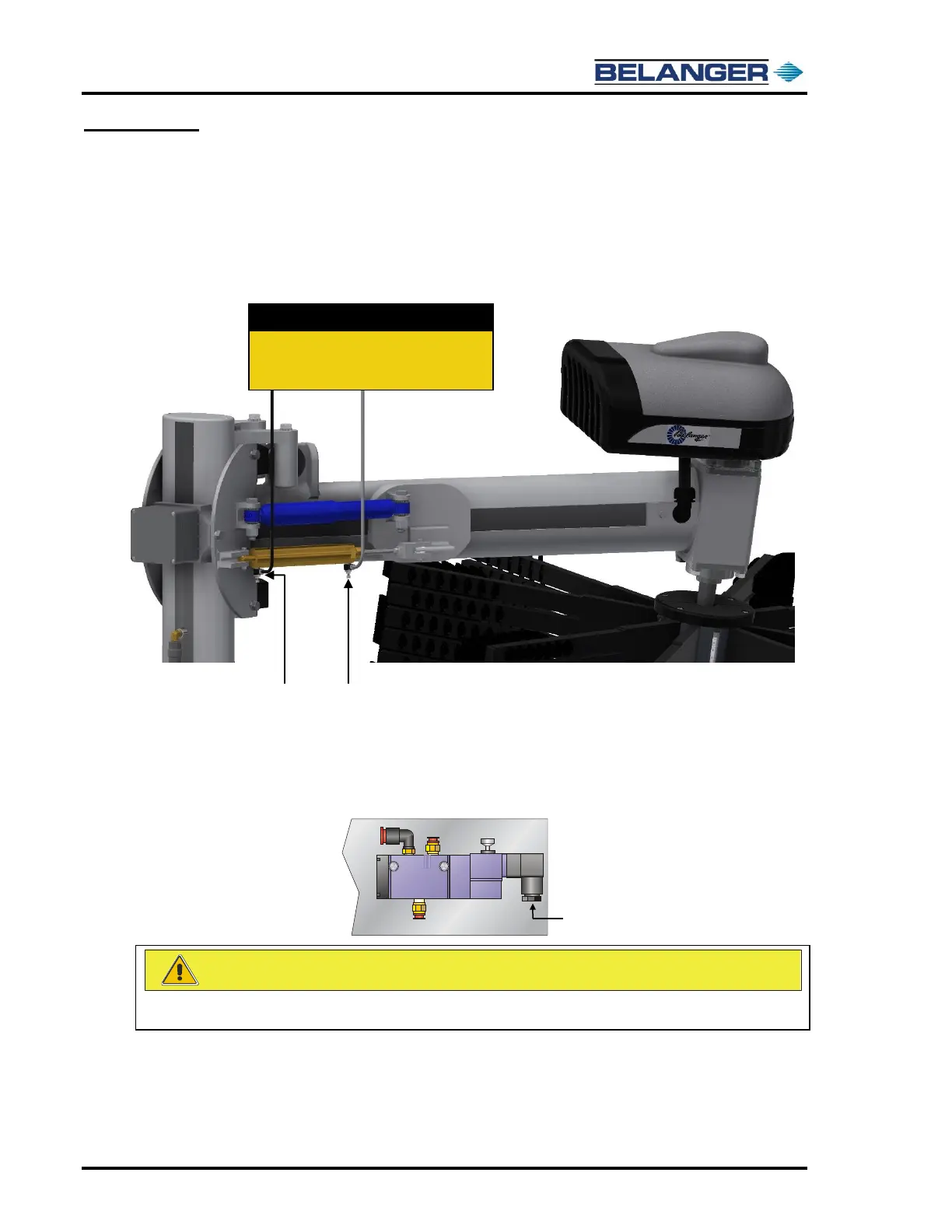

This image shows routing the gray ¼” Cylinder
Retract Airline to the driver side FSW unit;
repeat for the passenger side FSW unit.
