SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 14
Installation
Tunnel Placement: Overview
When placing the SpinLite® Full Side Washer assemblies, tunnel depth will vary from site to site. Be sure
to allow an adequate operating envelope.
There are two traditional installation configurations for the SpinLite® Full Side Washer assemblies.
• Standard, stand-alone
• Staggered with a set of QuickFire
®
Plus assemblies
Figures 1A and 1B show the floor dimensions for each configuration. The equipment around the
SpinLite® Full Side Washers should give ample room for the SpinLite® FSW arms with fully loaded hubs
to pivot within the working envelope.
Standard, Stand-Alone Configuration

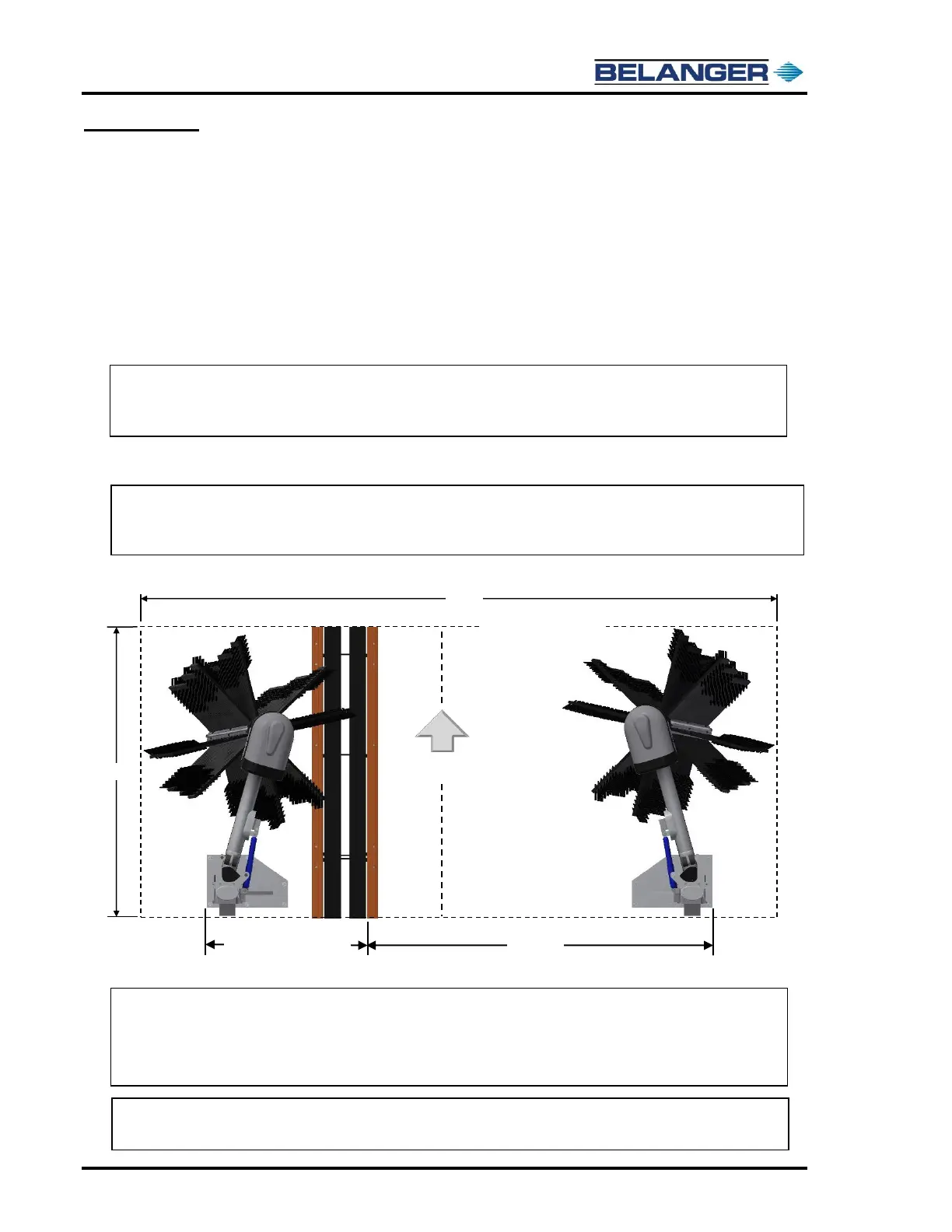

Figure 1A
Note: The above image is shown with cleaning material installed to indicate the operating envelope
required for proper function.
Note: Dimension (13” Conveyor: 47-1/2” / 14-1/2” Conveyor: 49”) is taken from the inside edge of the
inside conveyor guide rail to the back of the driver side baseplate.
Note: The 102-1/2” dimension is taken from the inside edge of the inside conveyor guide rail to the
back of the passenger side baseplate.
Note: The dimensions shown below can vary depending on surrounding equipment locations. It is
most important that the SpinLite® Full Side Washer is moved through its full range of motion
to ensure clearance of the conveyor and other equipment.
Note: In this manual, a 13” wide Conveyor is shown in all images. If a 14-1/2” wide Conveyor is installed
at the site be sure to add 1-1/2" to the dimensions to position the driver side Full Side Washer
assembly.
