SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 89
Maintenance

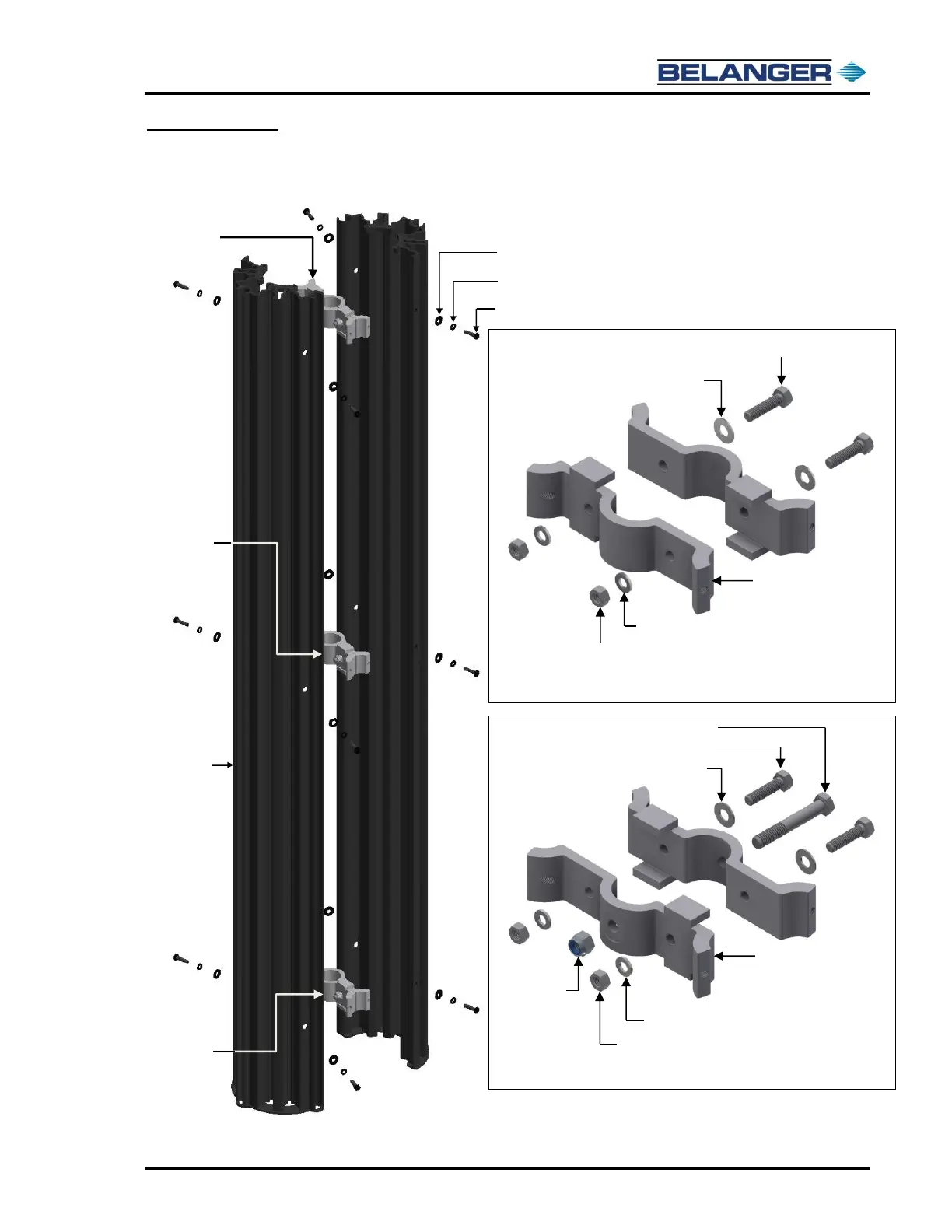

Exploded Parts View
Hub Assembly 111673: Skin and Spider Assembly
Upper & Lower Spider Assembly: 110715
1WASHR-FL415 (2)
1FSTNR-HH198 (2)
111343 (2)
1WASHR-LC270 (2)
1NUT-RG402 (2)
Middle Spider Assembly: 111349
1WASHR-FL415 (2)
111342 (2)
1WASHR-LC270 (2)
1NUT-RG402 (2)
1FSTNR-HH346
1FSTNR-HH198 (2)
1NUT-LC214
1WASHR-FL333 (4 per Skin)
1WASHR-LC126 (4 per Skin)
1FSTNR-HH055 (4 per Skin)
111681: 7” x 66.25”
Skin Assembly
(2 per wheel)
110715: 7” x 1-1/2”
Upper Spider Asy.
See enlarged view
to the right
111349: 7” x 1-1/2”
Middle Spider Asy.
See enlarged view
on the right
110715: 7” x 1-1/2”
Lower Spider Asy.
See enlarged view
above on right
