Belanger SpinLite - Arm Assembly Components

SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 83
Maintenance

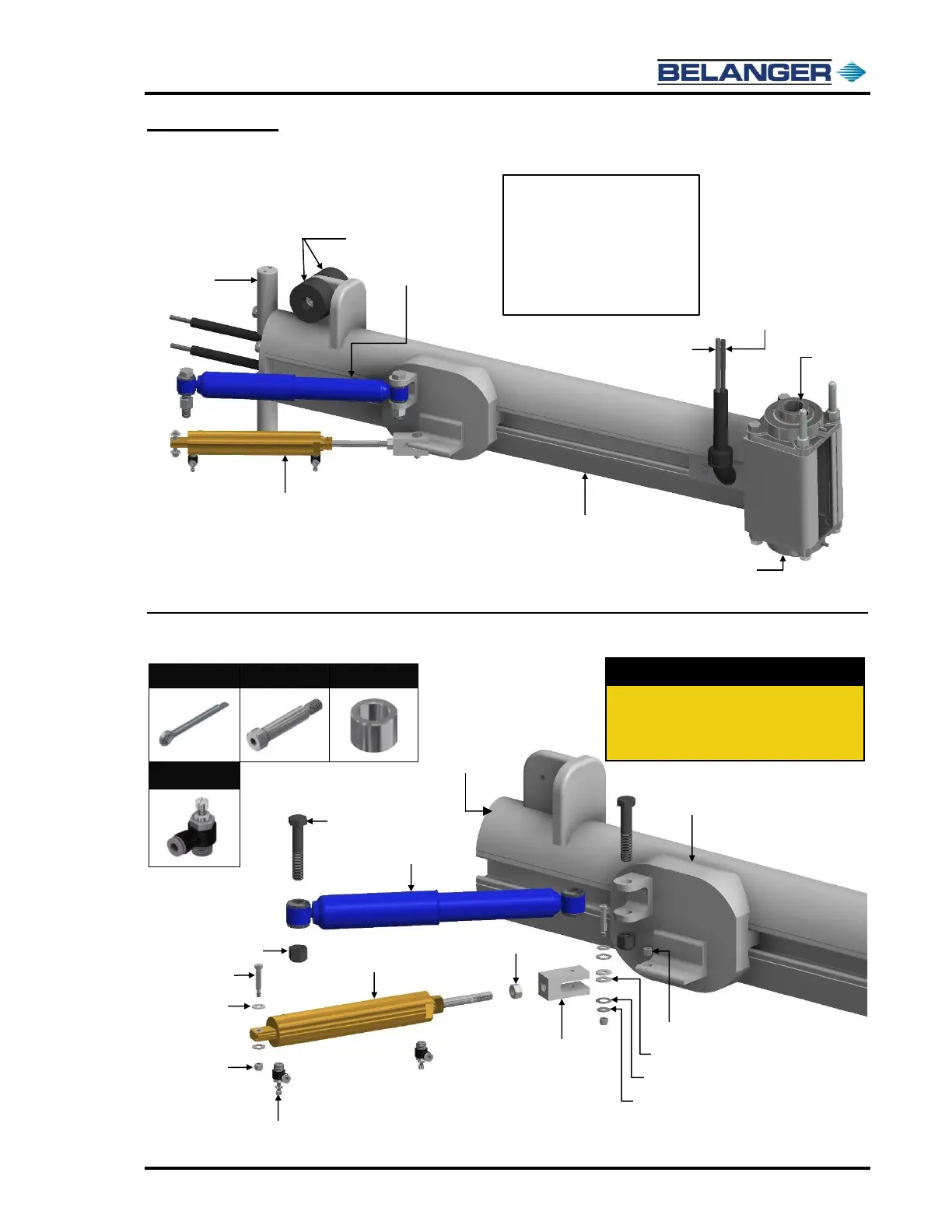

Exploded Parts View
Arm Assembly: Overview
Arm Assembly: Cylinder & Shock Assemblies
Complete Arm Assembly
Driver Side:
Silver PC: 111994
Aluminum: 110699
Passenger Side:
Silver PC: 111995
Aluminum: 110701
Cylinder
Assembly
Arm Bumper
Assembly
Arm Pivot
Shaft
Arm Weldment
16 Gage/4 Conductor
Cable for Motor
Shock
Assembly
1CYLND250
1NUT-LC210 (2)
Silver PC:
Aluminum: 110819
1WASHR-PL500 (2)
1SHOCK750
1WASHR-FL415 (2)
1FSTNR-SB125 (2)
1FSTNR-HH811 (2)
1NUT-LC220 (2)
1NUT-RG603
Black PC: 8311
Aluminum: 1034
1VALVE-PN193 (2)
1WASHR-PL504 (2)
1WASHR-FL415 (2)
1BSHNG364
Note:
The part numbers shown for the Cylinder and
Shock Assemblies are the same for both Driver
and Passenger Side SpinLite® Full Side Washer
except where specified.
1RETNR129
1FSTNR-SB125
1BSHNG364
1VALVE-PN193
Arm Weldment
Driver Side:
Silver PC: 111990
Aluminum: 111679
Passenger Side:
Silver PC: 111991
Aluminum: 111680
24 VDC Cable
for LED Lights
Bearing
Assembly
Bearing
Assembly
