SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 32
Installation
Install Hub Assemblies, LED Lights with Electrical Connections & ShineMitts™
Attach Hub Assemblies to Drive Shafts
The Hub Assemblies ship fully assembled, in order to install them onto the Drive Shaft, one of the
exterior skins and half of each of the spiders need to be removed. This section will provide instructions
on how to properly install the Hubs onto the Drive Shafts. Once the Hubs are installed, the LED lights
can be installed and the ShineMitt™ cleaning material can be loaded onto the Hubs.

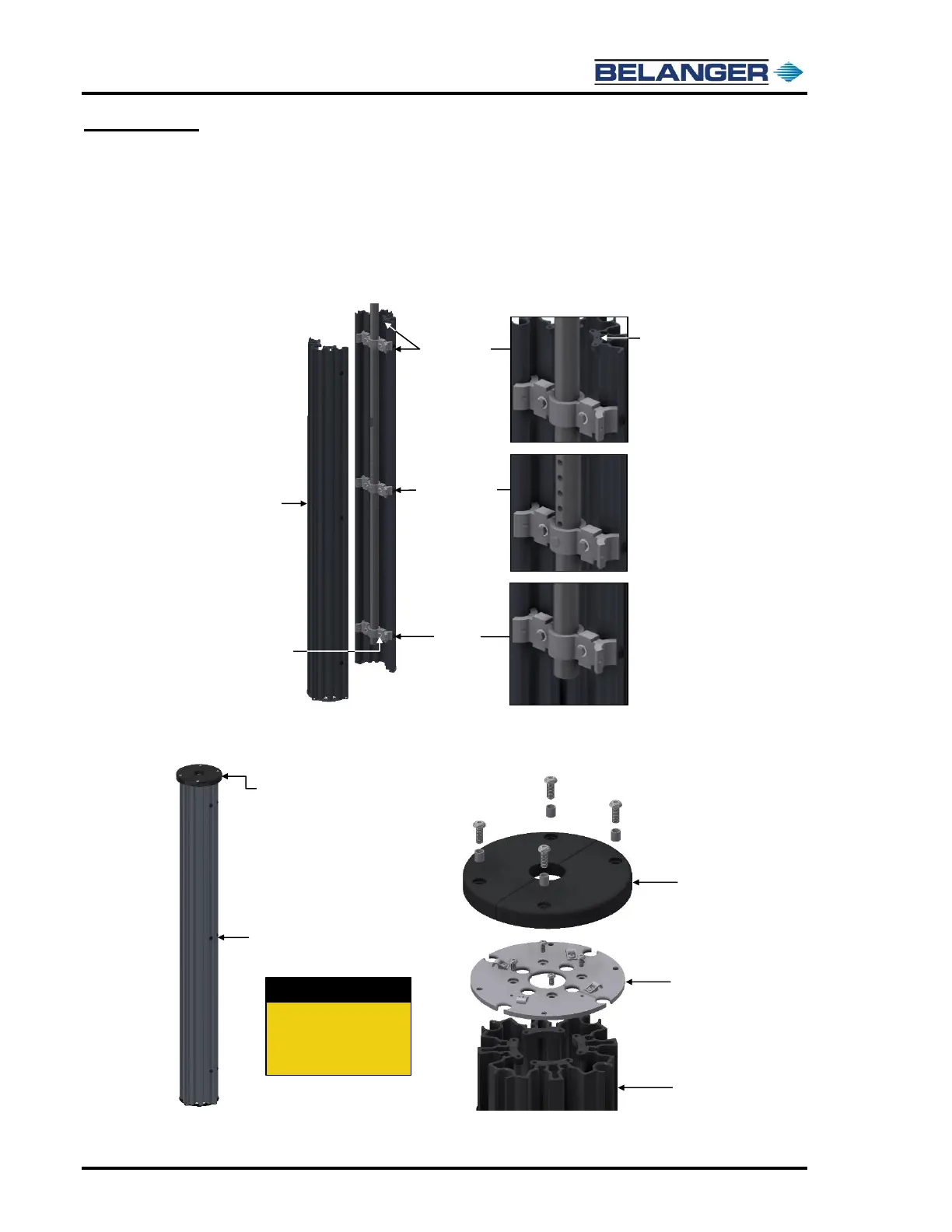

The following is an overview of the naming and placement typical of the Hubs.
1) Locate the two 7” diameter x 66-1/4” tall Hub Assemblies.
2) Remove the Hub Covers and Hub Plates from the Hub Assemblies and set them aside while you
attach the Hub onto the Drive Shaft.
