SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 33
Installation
Install Hub Assemblies, LED Lights with Electrical Connections & ShineMitts™
Attach Hub Assemblies to Drive Shafts

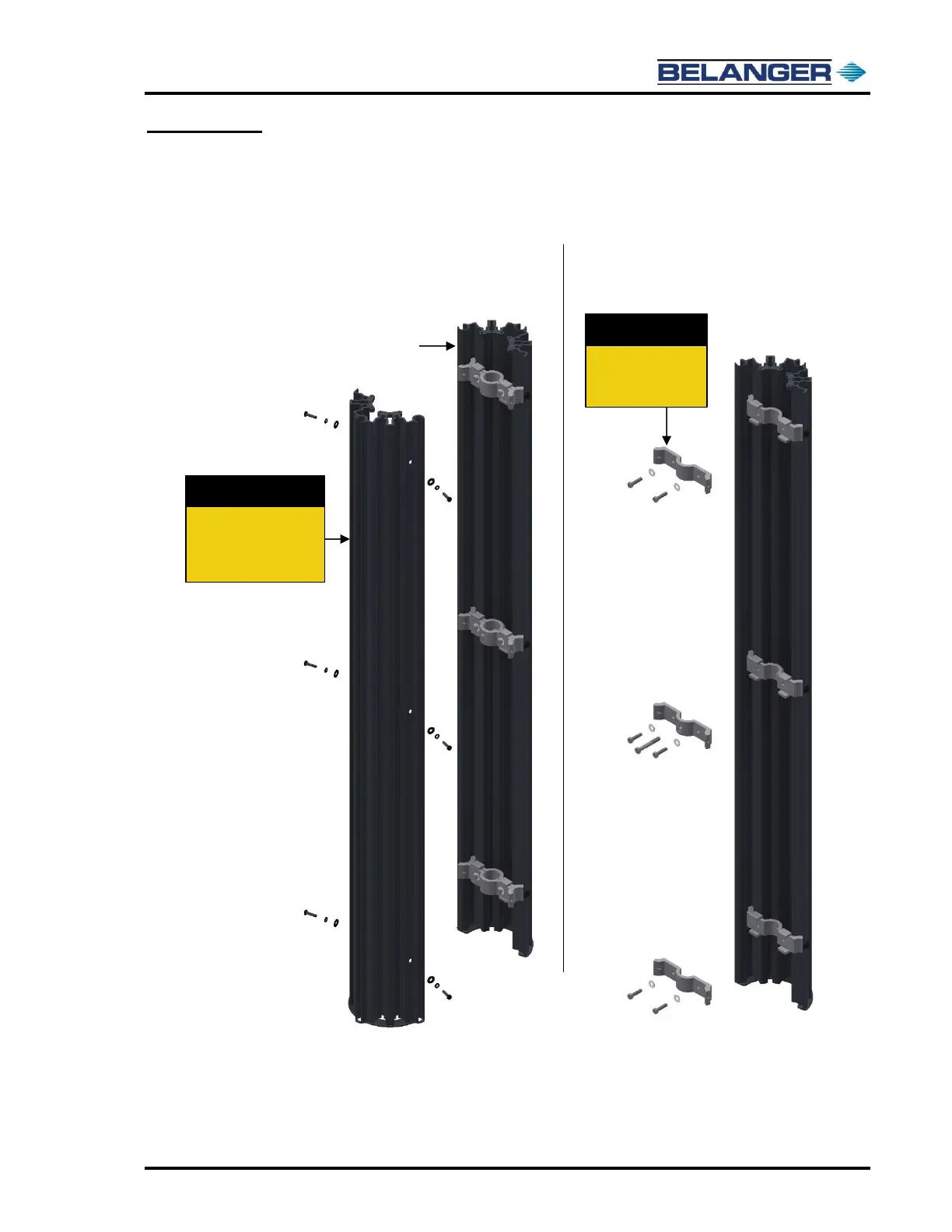

3) Remove a Skin on each of the Hub Assemblies to gain access to the inner fasteners on the
Spiders, as shown below.
4) Remove one-half of the top, middle, and bottom Spider assemblies, shown above.
Spider
Remove one Skin from
each Hub Assembly to
access to the Spider
Assemblies.
Step 3:
Remove one-half of
each of the Spider
Assemblies.
Step 4:
