Installation
Install Hub Assemblies, LED Lights with Electrical Connections & ShineMitts™
Hub LED Installation and Electrical Connections
Each SpinLite® FSW assembly has an electrical Slip Ring and Wire Harness to power the LEDs on
the Hub. The following electrical connections: Slip Ring to Wire Harness and Wire Harness to LEDs
need to be connected during installation. Each of these wire connections must be secure, protected
from water intrusion, and have adequate clearance from the spinning Hub Skins during operation.

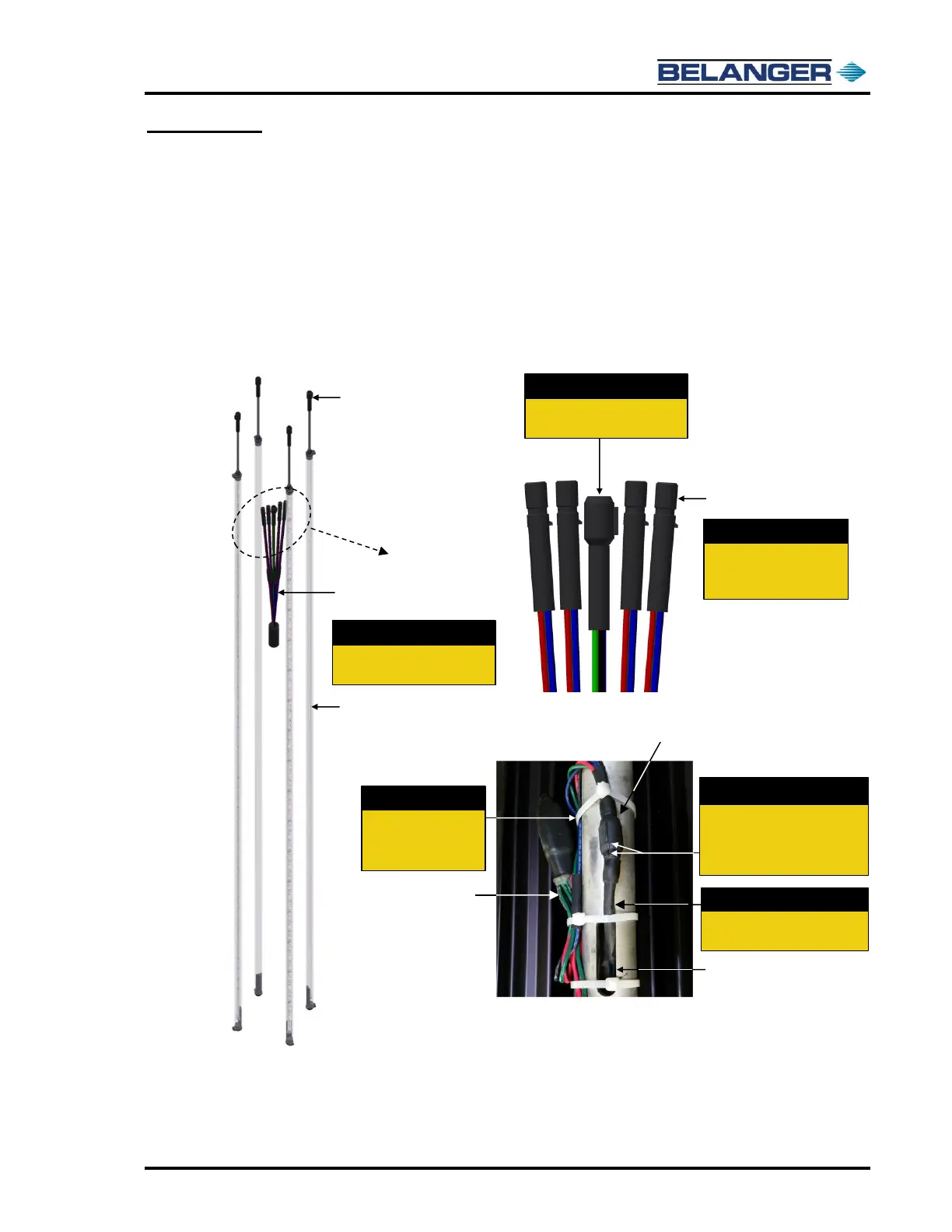

1) Locate the Wire Harness and Hub LED Assembly.
2) Locate the Slip Ring Wire that was routed down through the Drive Shaft. Pull enough of the
Slip Ring Wire out through the slot in the Drive Shaft so it can easily be connected to the Wire
Harness, shown in the image below.
3) Apply dielectric grease to the receptor on the Wire Harness align the indicators on the Slip Ring
and Wire Harness connectors and press them together gently. Wrap the connection with electrical
tape to protect them from the car wash elements.
Wire Harness
Assembly
Pull the Slip Ring Wire out of
the Drive Shaft Slot.
Step 2:
Align the indicators on the Slip
Ring Wire and Wire Harness
and press the connectors
together gently.
Step 3b:
Secure the Wire
Harness to the Drive
Shaft with tie straps.
Step 4b:
Drive Shaft Slot
Secure Wire Connection
toward top of Hub Assembly
so it is accessible
Hub LED Assembly
Wire Harness Assembly
Hub LED Receptors
Plugs (4) to connect to
Hub LED Receptors
Apply dielectric grease to the
Wire Harness Receptor.
Step 3a:
Route the Plugs on the
Wire Harness to the Top
of the Hub Assembly.
Step 4a:
Connecting Slip Ring to Wire Harness
Locate the Wire Harness and
Hub LED assemblies.
Step 1:
