SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 36
Installation
Install Hub Assemblies, LED Lights with Electrical Connections & ShineMitts™
Hub LED Installation and Electrical Connections

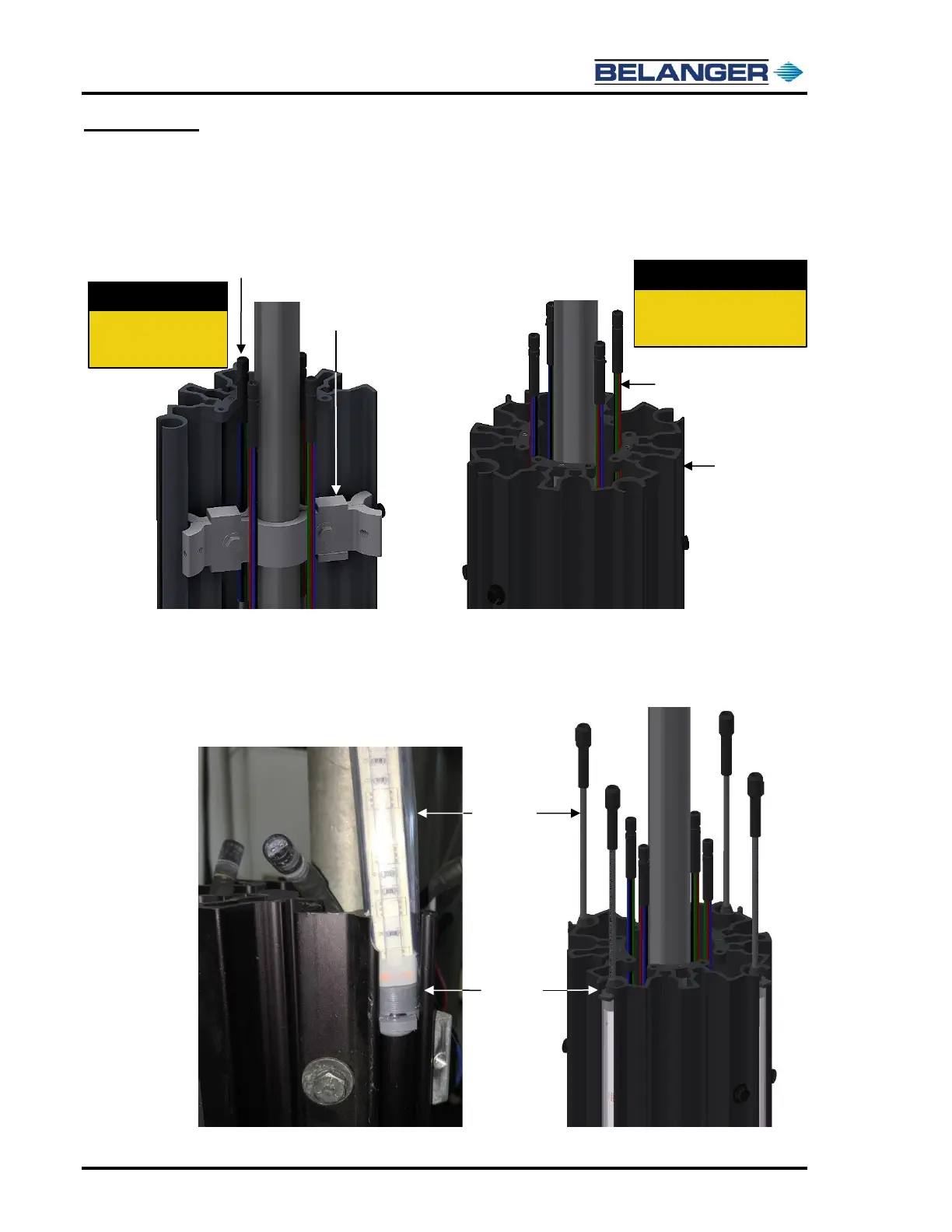

4) Route the LED Wires from the Wire Harness to above the Top Spider and the top of the Hub Skin,
shown in the images below. Use Tie Straps (shown in the image on the previous page) to secure
the Wire Harness to the Drive Shaft.
5) Reattach the Hub Skin to the Spiders and tighten all fasteners; be careful not to over tighten the
bolts or to crimp any of the wires, shown above.
6) Install the four (4) Hub LED light assemblies into their channels, shown below.
LED Wires
When reattaching the Hub Skin
be careful to not crimp any of
the LED Wires.
Step 5:
Hub Skin
Top Spider
LED
Assembly
Hub
Channel
Route the LED Wires to
the top of the Hub Skin.
Step 4:
LED Wires
