Maintenance
Motor Gearbox and Torque Plate Replacement

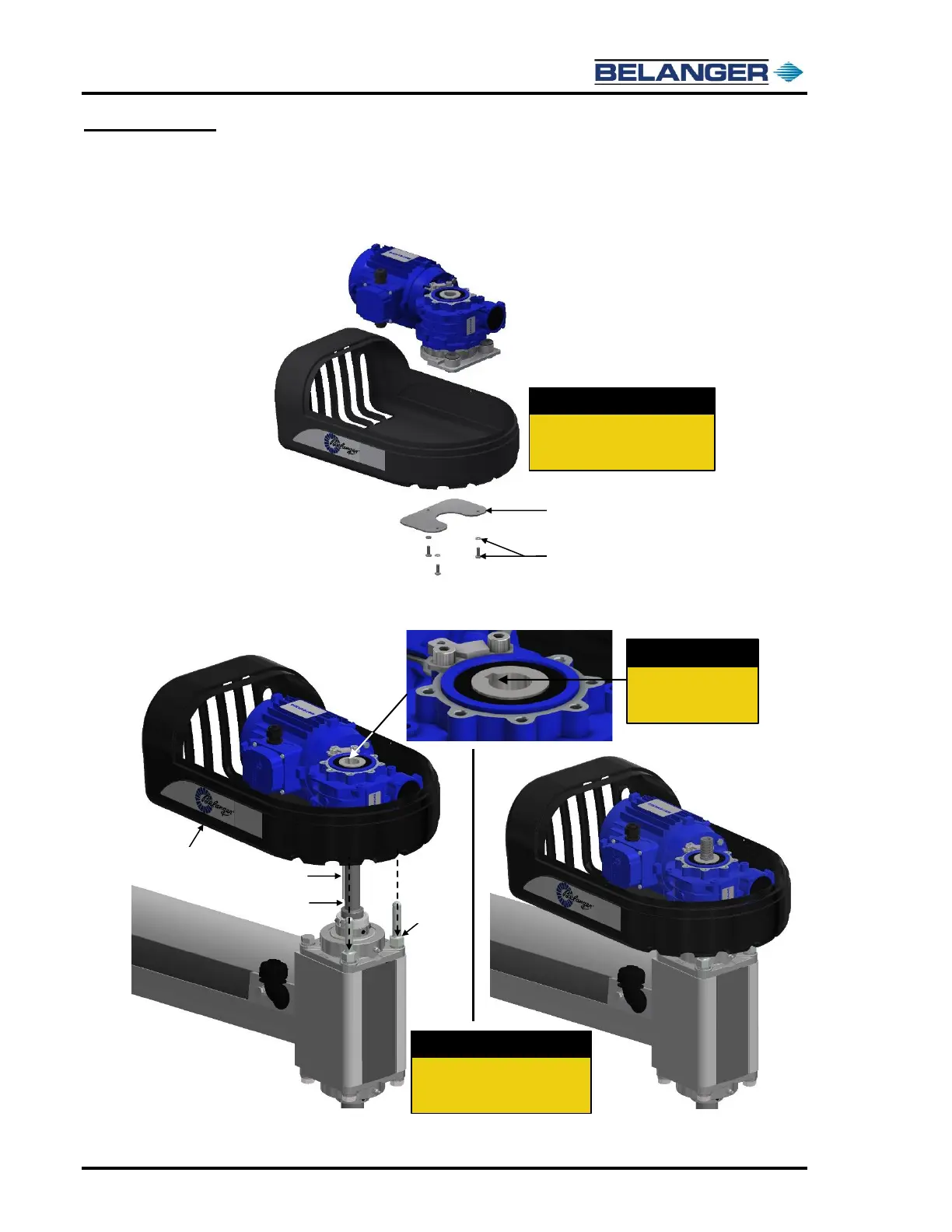

Install New Motor Gearbox & Torque Plate Assembly
1) Secure the Plastic Cover to the Motor Gearbox assembly using the Mount Plate and fasteners
as shown below.
2) Place the Motor Gearbox Assembly back onto the Drive Shaft using the keyway of the Motor to
line it up with the Key in the Drive Shaft.
3) Once the Key and Keyway are aligned, slide the Motor, Gearbox, and Cover Assembly onto
the Drive Shaft and into place over the Torque Studs as shown below.
Mount Plate
Fasteners: 1/4"-20 X3/4
& 1/4" Locking Washer
Slide the Motor/Gearbox & Cover
Assembly onto the Drive Shaft
and over the Torque Studs.
Step 3:
Use the Mount Plate & Fasteners
to secure the bottom Motor Cover
to the Motor Torque Plate.
Step 1:
Torque
Studs (2)
Drive Shaft
Motor/Gearbox &
Cover Assembly
Key
Align the Keyway in the
Gearbox with the Key
in the Drive Shaft.
Step 2:
