Belanger SpinLite - Staggered, with Quickfire Plus Assemblies

SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 15
Installation

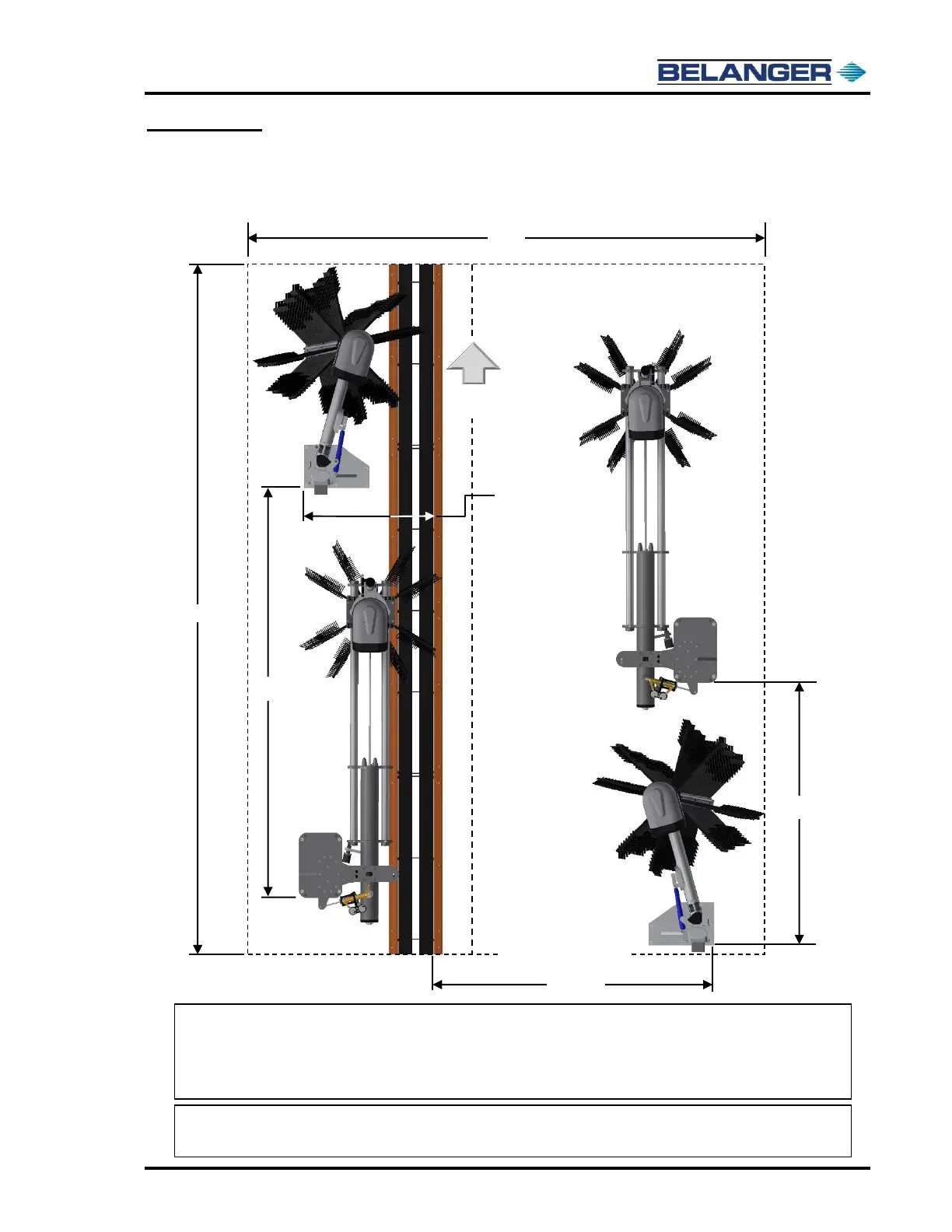

Tunnel Placement Overview
Staggered, with QuickFire® Plus assemblies
Figure 1B
187”
248”
150"
95-3/4”
Note: The above image is shown with cleaning material installed to indicate the operating envelope
required for proper function.
Note: Dimension (13” Conveyor: 47-1/2” / 14-1/2” Conveyor: 49”) is taken from the inside edge of
the inside conveyor guide rail to the back of the driver side baseplate.
Note: The 102-1/2” dimension is taken from the inside edge of the inside conveyor guide rail to the
back of the passenger side baseplate.
102-1/2”
Operating Envelope
Direction
of Travel
13” Conveyor: 47-1/2”
14-1/2” Conveyor: 49”
