SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 49
Installation
Utilities
Pneumatic Connections: Air Panels to Cylinders

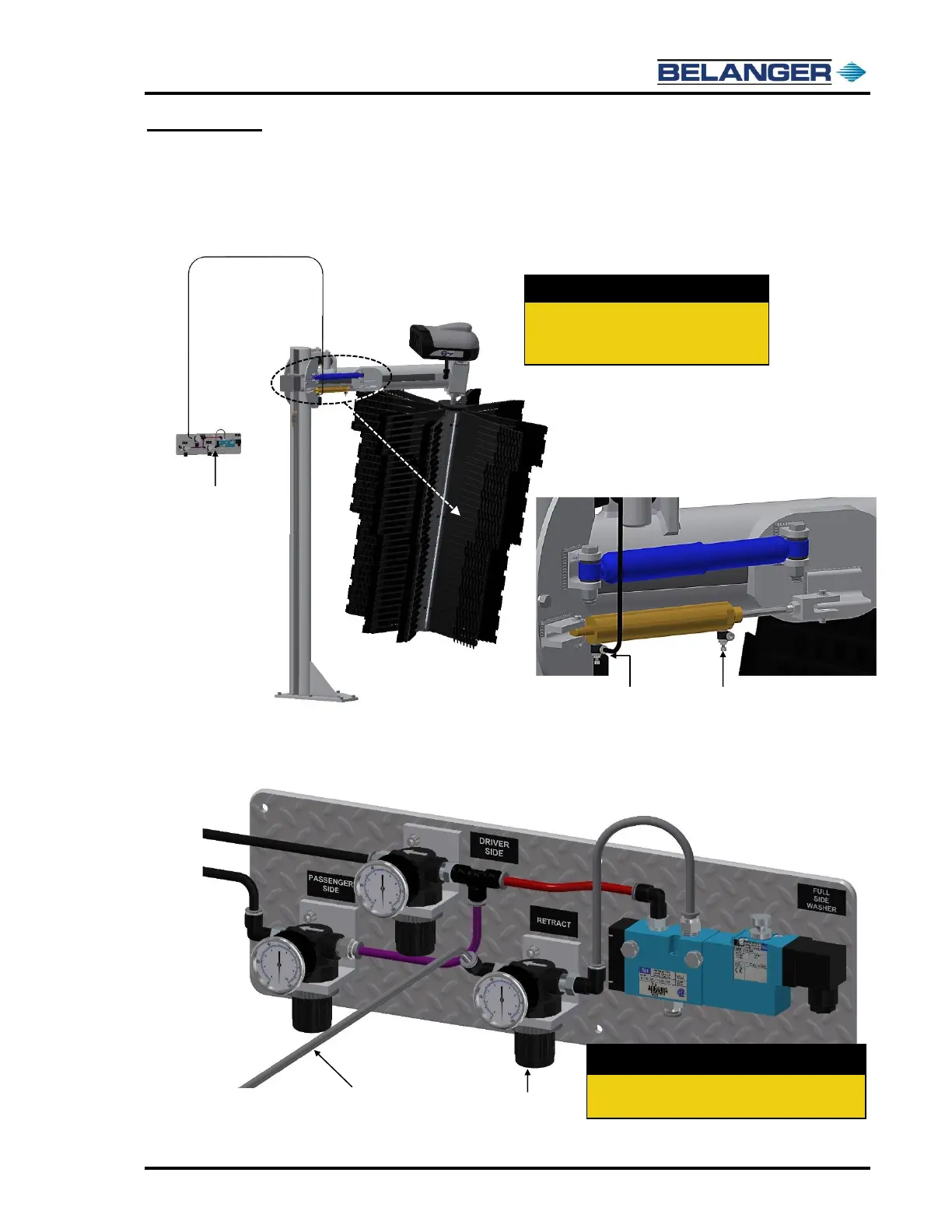

7) Route the two black Extend Airlines out to their appropriate SpinLite® FSW assembly and
connect each airline to the extend port on the Arm Cylinders, refer to the image below.
8) Route a field supplied 1/4” gray poly-flow airline from the Air Panel Retract Regulator out to
the center of the tunnel.
9) Cut the gray Retract Airline and insert a field supplied 1/4" tee fitting into the line.
1/4” Gray Airline to
Retract DS & PS
Arm Cylinders
Retract Regulator for
DS & PS Arm Cylinder
Helpful Hint
Labels for the Air Panel Regulators are not provided
however, they are recommended for clarity.
Air Panel for
Cylinder on SpinLite®
FSW Assemblies
Driver Side
Air Panel
Step 7
These images show routing the black ¼”
Cylinder Extend Airline to the driver side FSW
unit; repeat for the passenger side FSW unit.
Extend Port with
Flow Control Valve
Retract Port with
Flow Control Valve
