SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 23
Installation
Attach the Arm Assemblies
11) Swing the Arm Assembly back to the center. Reattach the previously removed Positive Stop
Mount with the Positive Stops to the Leg Assembly.
12) Secure the Cylinder and Shock on the Arm Assembly to the appropriate clevises on the Leg

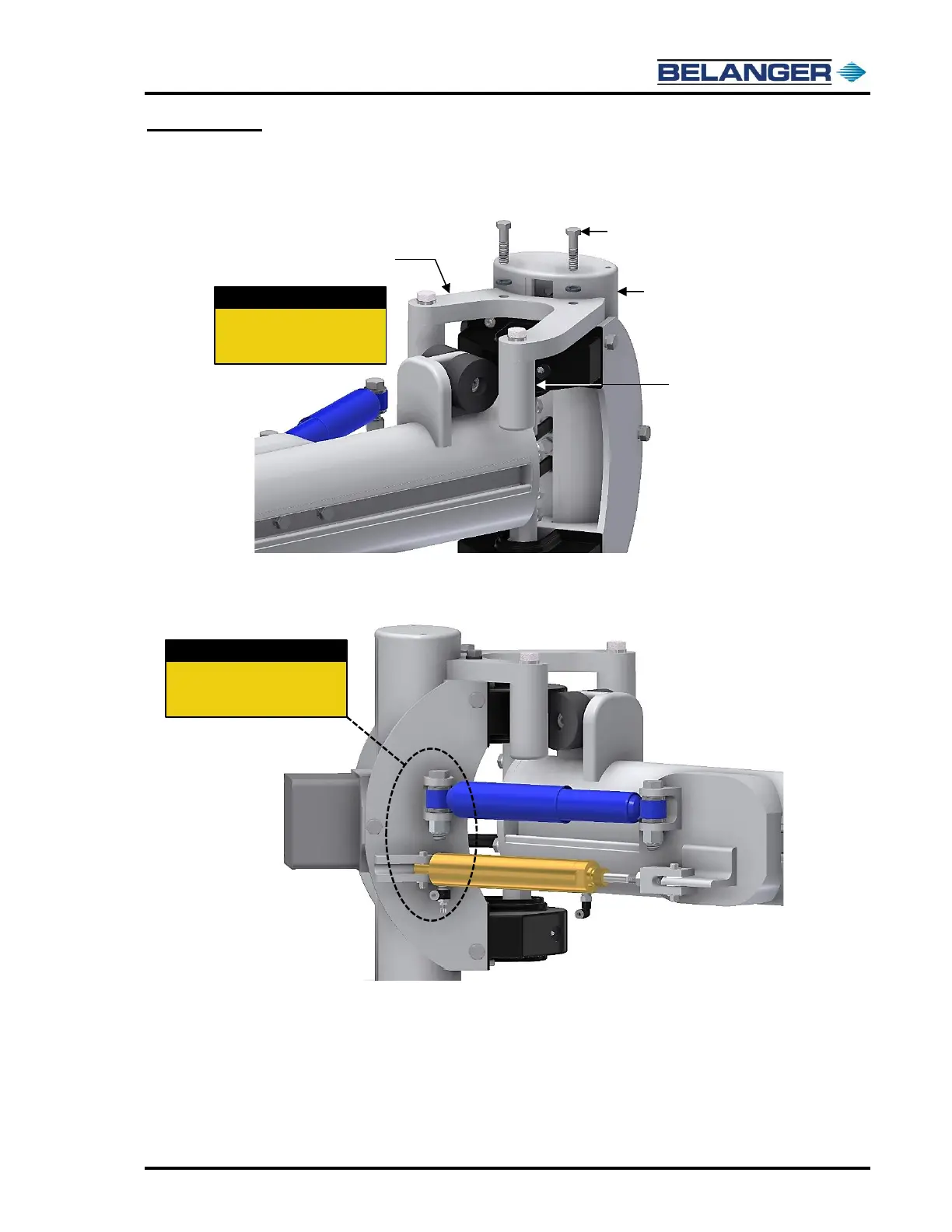

Assembly with the fasteners that shipped in place. Refer to the images below.
Positive Stop
Mount
Fasteners
Positive Stops
Leg Assembly
Step 12:
Secure the Cylinder and Shock to
the appropriate clevises on the
Leg Assembly.
Step 11:
Reattach the Positive Stop
Mount with Stops to the Leg
Assembly.
