SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 22
Installation
Attach the Arm Assemblies

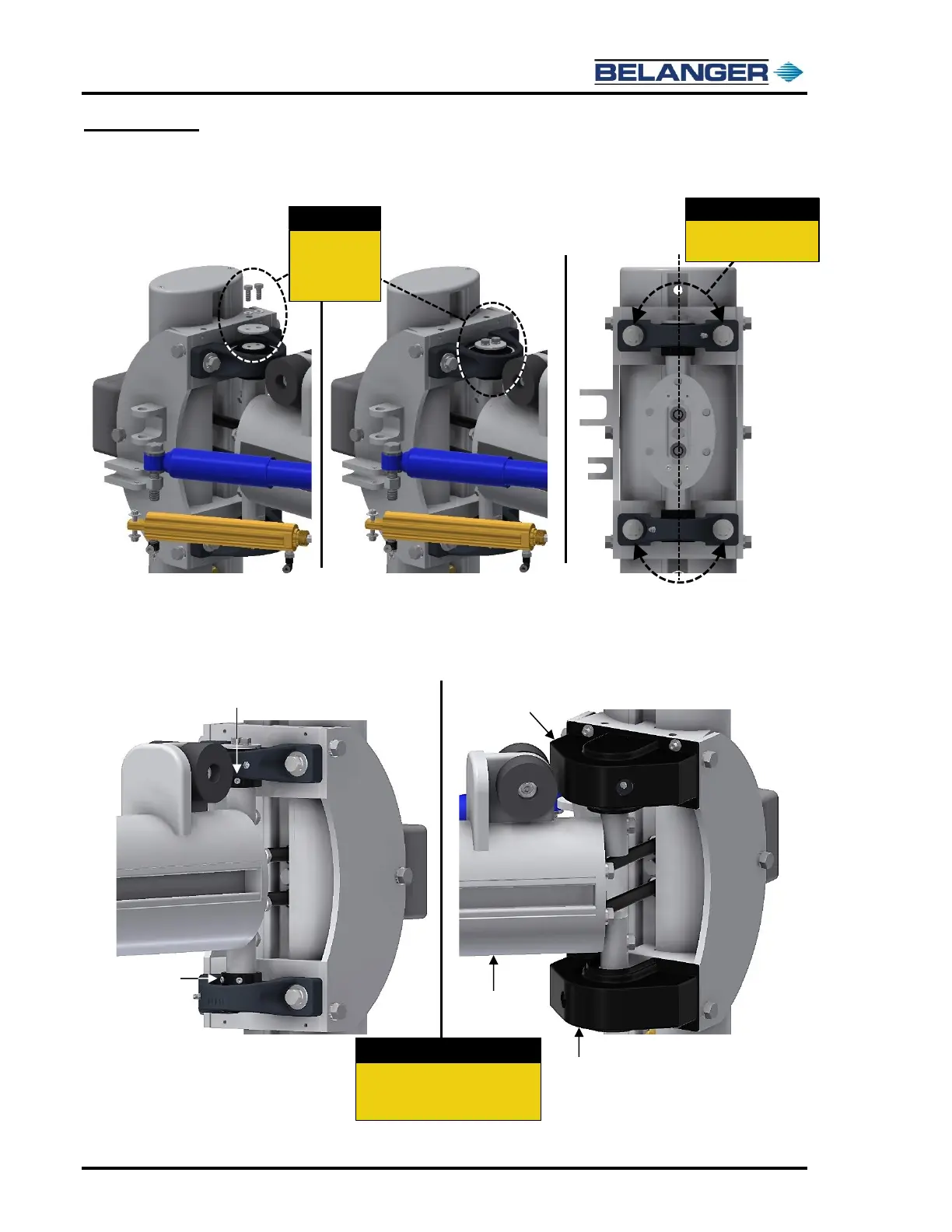

7) Assemble the Arm Pivot Washer onto the Pivot Shaft, shown in the images below.
8) Once in place, be sure to vertically level the Arm Assembly by loosening the bolts on the Bearings
as shown in the above, right image.
9) Tighten the two (2) Set Screws on each of the Shaft Bearings.
10) Replace the previously removed Bearing Covers. It will be necessary to swing the Arm Assembly
to one side to re-install the Bearing Covers.
Before
After
Alignment
Arm Pivot
Washer
Shaft Bearing
Set Screws
Shaft Bearing
Set Screws
Bearing
Cover
Bearing
Cover
Arm
Assembly
Step 9 & 10:
Tighten the two Set Screws on
each of the Shaft Bearings then
re-install the Bearing Covers.
Step 7:
Install the Arm
Pivot Washer
on the Drive
Shaft.
Step 8:
Adjust bolts on Shaft
Bearings to level Arm.
