SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 21
Installation
Attach the Arm Assemblies
3) Remove the two (2) Shaft Bearings, apply Anti-Seize™ to the inside diameter of each bearing,
and slide them onto the Pivot Shaft on the Arm Assembly.
4) Hold the Arm Assembly up to the Leg Assembly, route the Motor Cable and LED Cable from the
Arm Assembly through the holes in the Leg Assembly and into the Junction Box, see image below.
5) Secure the two (2) Shaft Bearings on the Arm Assembly to the Leg Assembly, shown above.
6) From the Accessory Box, locate the Arm Pivot Washer and Fasteners, shown below.
Arm Pivot Washer
(1 each per FSW Assembly)
Fasteners
(2 each per FSW Assembly)
5/16-18 x 3/4” HHCS
5/16” Lock Washer
Remove the two Shaft
Bearings and apply Anti-
Seize™ to the inside
diameter of each Bearing.
Step 3a:
Leg Assembly
Shaft Bearings
Arm
Assembly
Step 3b:
Slide the Shaft Bearings
onto the Pivot Shaft on the
Arm Assembly.
Pivot Shaft
Junction Box
Leg Assembly
Arm
Assembly
Shaft Bearing
& Fasteners
Shaft Bearing
& Fasteners
Motor Cable
& LED Cable

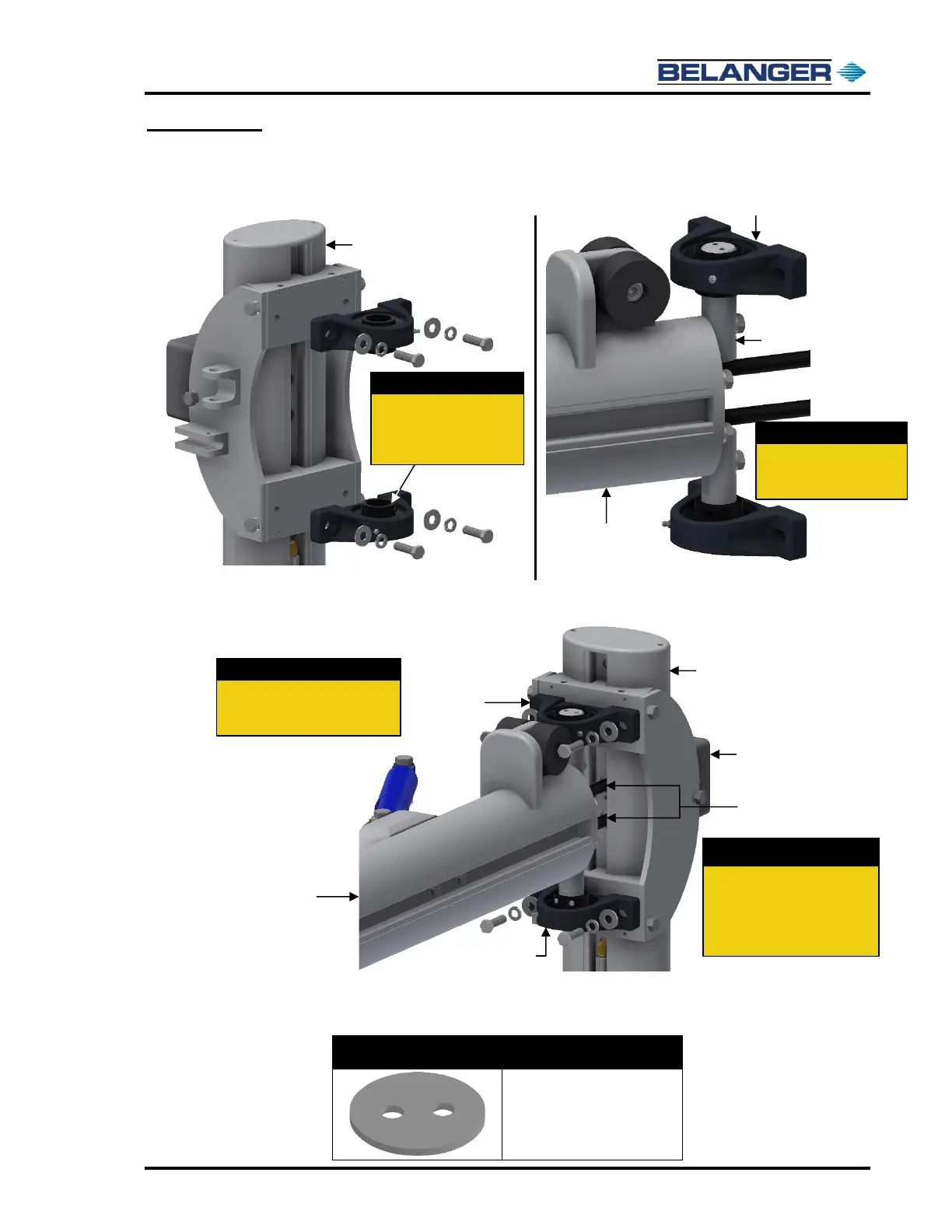

Step 5:
Secure the two Shaft Bearings on
the Arm Assembly to the Leg
Assembly.
Step 4:
Route the Motor Cable and LED
Cable from the Arm through the
holes in the Leg Assembly and
into the Junction Box.
