SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 25
Installation
Install the Drive Shaft Components

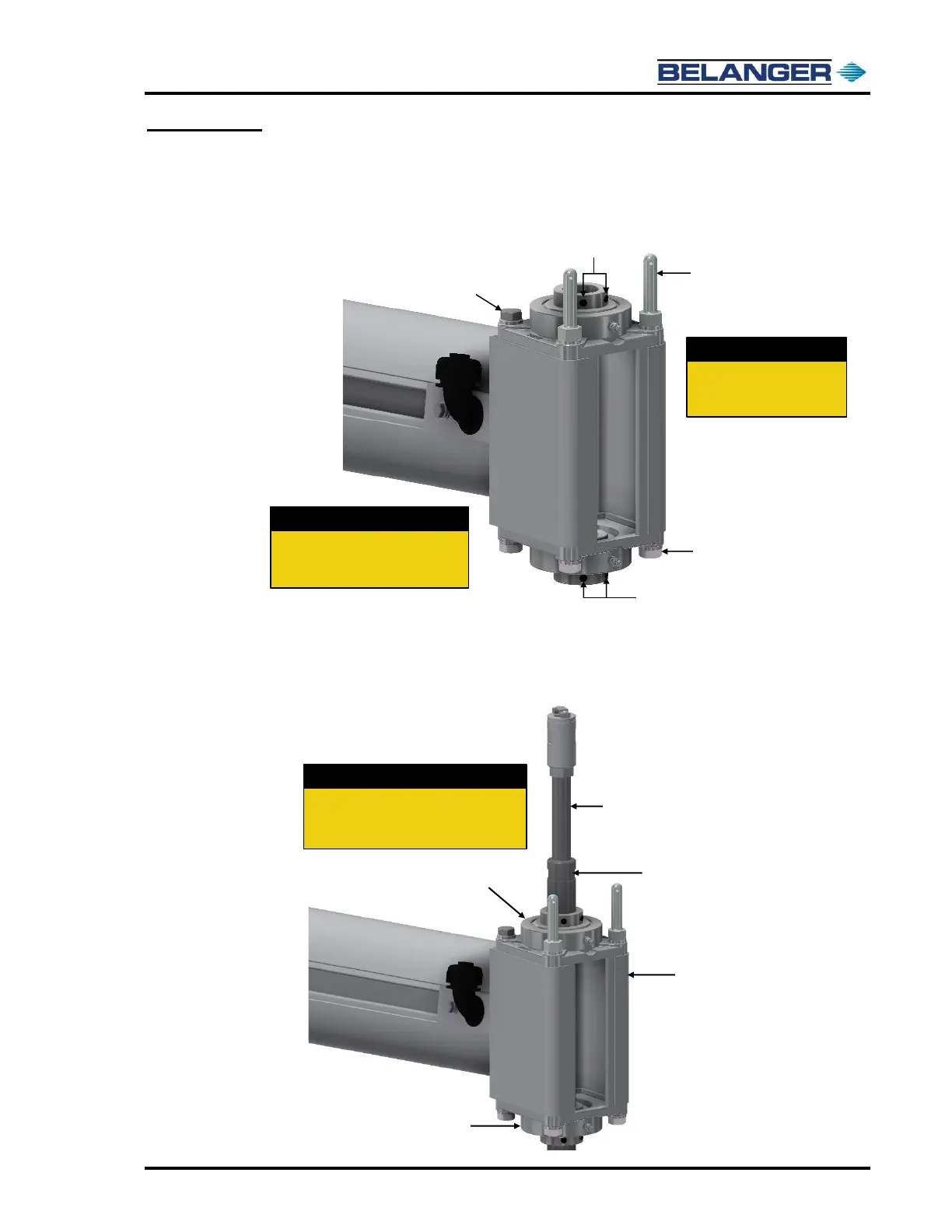

3) Starting with the driver side SpinLite® FSW assembly, loosen the four fasteners on each of the
two (2) Shaft Bearings located on the Bearing Mount on the Arm Assemblies as shown below.
This will ease the process of inserting the Drive Shaft into the Bearings.
4) Apply Anti-Seize™ to the inside diameter of both the upper and lower Shaft Bearings and loosen
their Set Screws.
5) Slide the Drive Shaft up through both Shaft Bearings until the groove for the Locking Collar has
cleared the upper Shaft Bearing.
Torque Studs (2)
Bolts (4)
Bolts (2)
Locking Collar Groove
Lower Shaft Bearing
Bearing Mount
Upper Shaft Bearing
Drive Shaft
Slightly loosen all of the Bolts
and Torque Studs on both
Shaft Bearings.
Step 3:
Set Screw (2)
Set Screw (2)
Apply Anti-Seize™ to the inside of
both Shaft Bearing diameters and
slightly loosen the Set Screws.
Step 4:
Slide the Drive Shaft up through the Shaft
Bearings until the Locking Collar Groove
is above the Upper Bearing.
Step 5:
