SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 26
Installation
Install the Drive Shaft Components

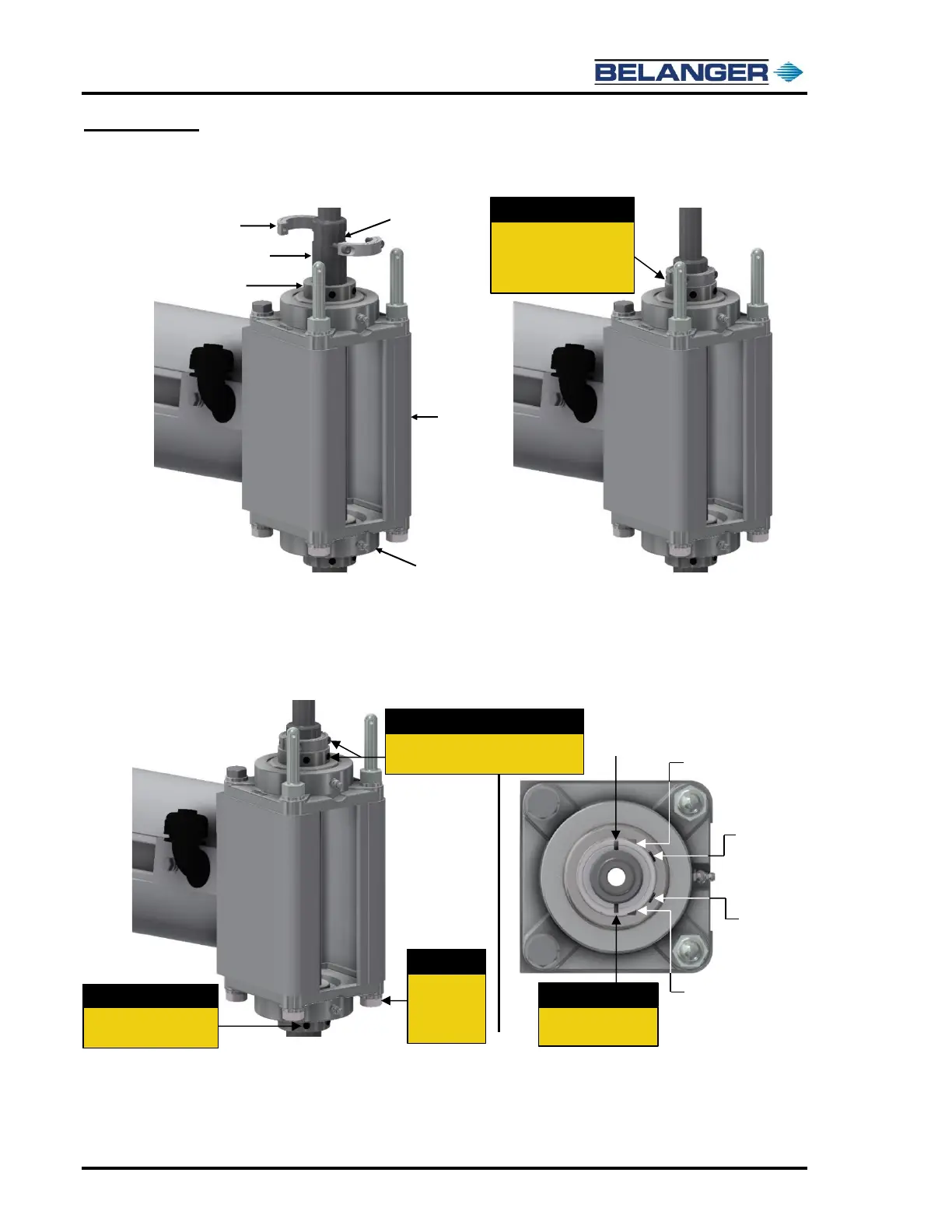

6) Place the split Locking Collar into the groove on the Drive Shaft and lightly secure it into place.
7) Allow the Drive Shaft to slide down until the Locking Collar rests on the upper Shaft Bearing as
shown above on the right.
8) Position the Locking Collar so that its’ screws are aligned with the Set Screws on the Bearing
which means the gaps are 90° from the Bearing Set Screws, shown in the images below.
9) Tighten the Locking Collar so that the gaps are evenly spaced, refer to the images below.
10) Tighten all of the fasteners securing the Shaft Bearings to the Bearing Mount that were
previously loosened.
11) Tighten both Set Screws on the upper and lower Shaft Bearings; verify they are aligned with
the screws on the Locking Collar.
12) Repeat this process for the passenger side SpinLite® FSW assembly.
