SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 47
Installation
Utilities

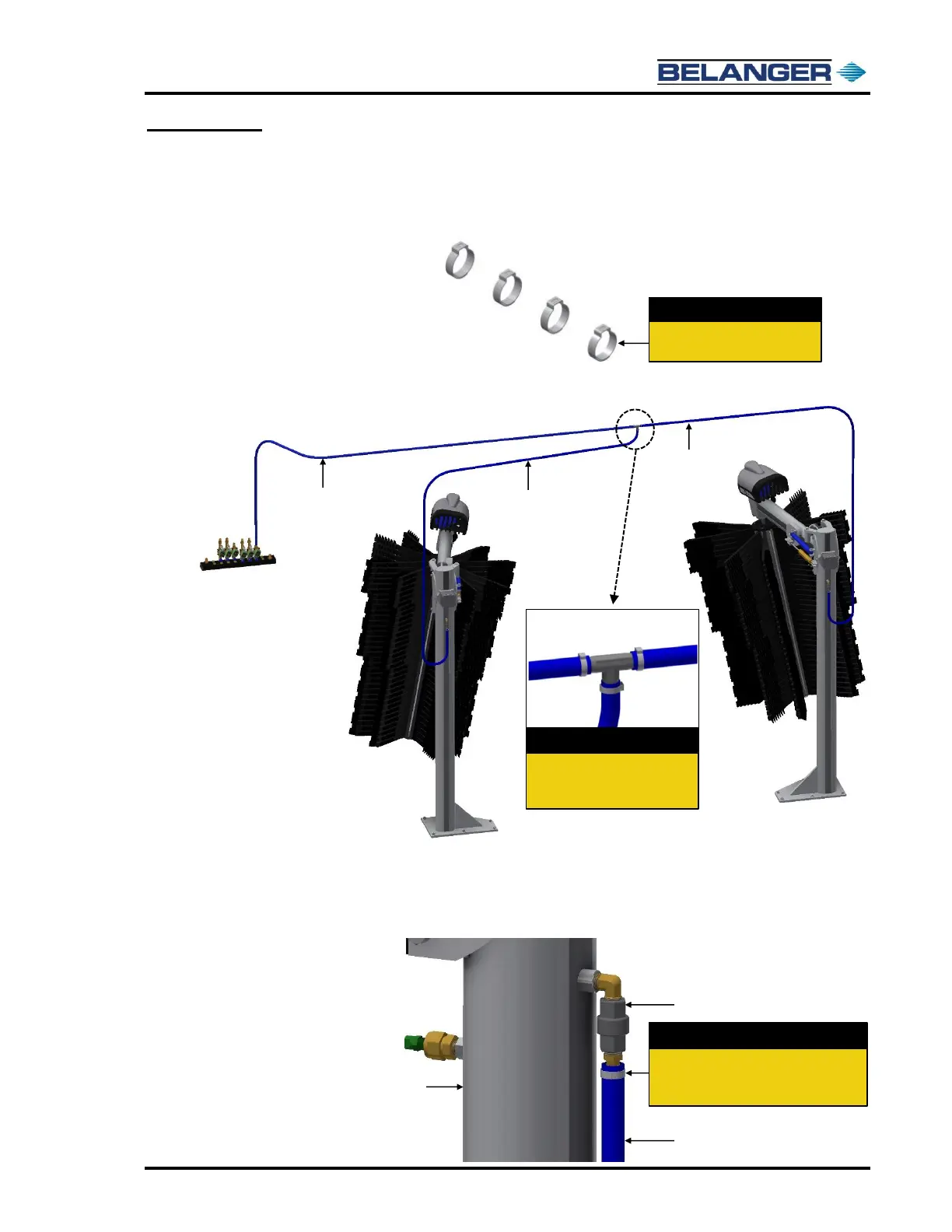

Water Connections: Water Line to the SpinLite® Full Side Washers
5) Locate the four (4) 1/2” Hose Clamps in the Accessory Box that came with the SpinLite® FSW
assemblies.
6) Using the Hose Clamps secure the 1/2" water hoses to the tee fitting and route them to the
driver side and passenger side SpinLite® FSW assemblies, as shown below.
7) Before connecting the lines to the SpinLite® FSW assemblies turn on the water to clean out
any debris in the lines.
8) Secure the water hoses to the hydraulic fitting on the Water Manifold on each SpinLite® FSW
assembly using the 1/2" Hose Clamps, as shown below.
1/2” Water Hose to
PS SpinLite® FSW
1/2” Water Hose to
DS SpinLite® FSW
Driver Side
Passenger Side
1/2” Water Hose
(Field Supplied)
Water Manifold
1/2” Hose Clamp
3/4” Main
Water Hose
Line from
Manifold in
Back Room
Leg Assembly
1/2” Hose Clamps
Use the supplied 1/2” Clamps to
secure the two 1/2” Water Hose
Lines to the 3/4” x 1/2” tee.
Step 6:
Use the supplied 1/2” Clamps to secure
the two 1/2” Water Hose Lines to the
Water Manifold on the Leg Assemblies.
Step 8:
Locate the 1/2" Hose Clamps in
the Accessory Box.
Step 5:
