Installation

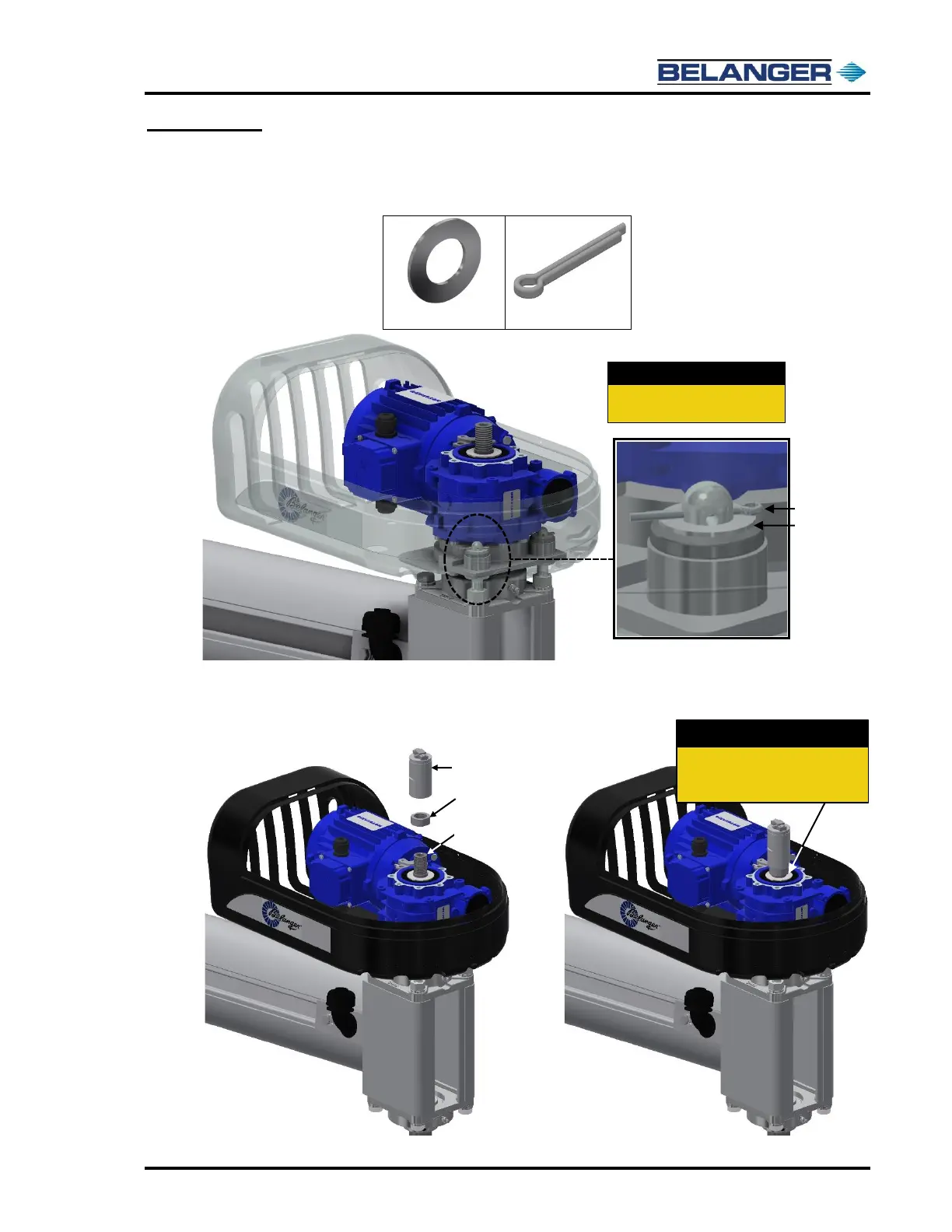

Connect the Motor/Gearbox and Slip Ring to the Drive Shaft
8) Locate the four (4) Flat Washers and four (4) Cotter Pins from the Accessory Box and install them
as shown below. Bend the ends of the Cotter Pins to lock them into place.
9) Rethread the Jam Nut and Slip Ring Shaft back onto the Drive Shaft so that it sits on top of the
Gearbox, shown below.
Assemble Jam Nut and Slip Ring
Shaft onto the Drive Shaft; the Jam
Nut is to sit on top of the Gearbox.
