SpinLite® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 19
Installation
Tunnel Placement: Staggered Installation with QuickFire® Plus
4) Once the driver side and passenger side SpinLite® FSW Leg assemblies are in place verify that
they are square to the conveyor.
5) Check to make sure they are level by placing a torpedo level on the Baseplate.

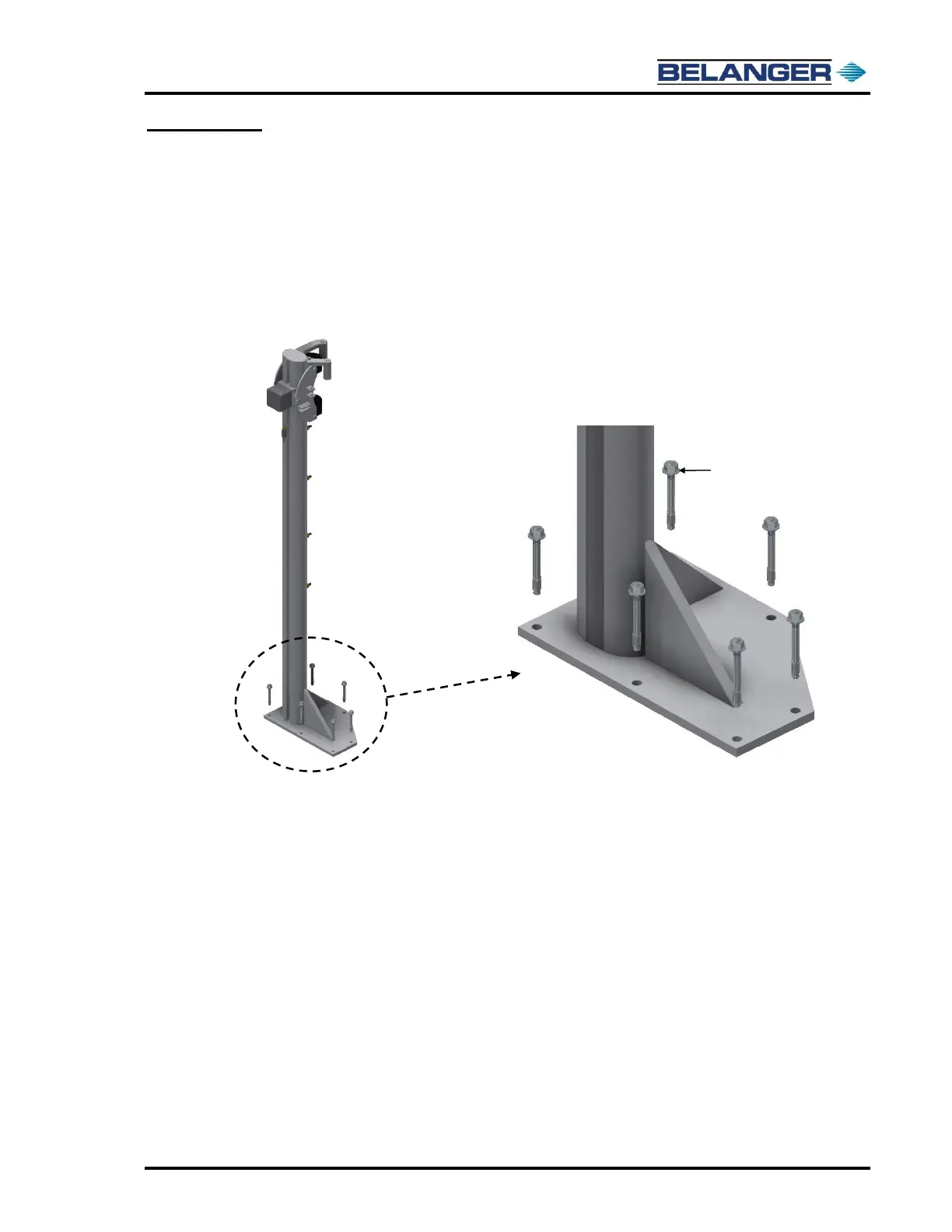

6) If necessary, level the units by using shims. Note, shims are not supplied by Belanger, Inc.
7) From the Accessory Box retrieve the twelve (12) 5/8” Lag Bolts.
8) Lag both the driver side and passenger side SpinLite® FSW Leg Assemblies to the floor.
