6.4.5 Current output for external measuring instruments
Factory setting: 0…20 mA
The current output of the IRDH575 can be set to "0…20 mA" or "4…20 mA" via
the menu point "M+/M-:". The maximum load is 500 Ω.

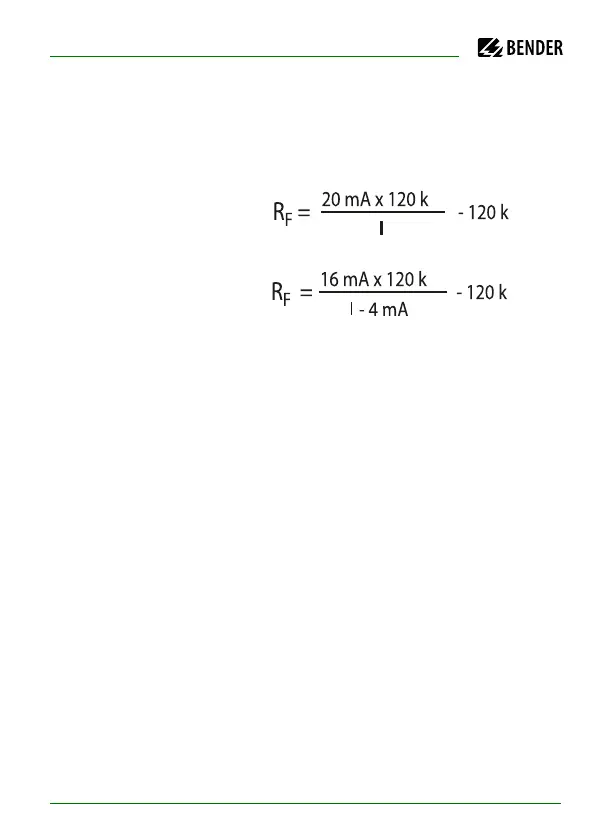

Function 0…20 mA:
R
F
= insulation fault,
I = current in mA
Function 4…20 mA:
R
F
= insulation fault,
I = current in mA
The associated characteristic curves are illustrated on page 98.
