PL-6000DC/DCX Two-Post Parking Lift 71 P/N 5900273 — Rev. A6 —July 2024
Space Requirements – PL-6000DCX Multiple Lift Installations
Typical spacing required for two PL-6000DCX Lifts sharing one Post as detailed below. Each Lift
requires its own Power Unit and Electrical supply.
Unit A: PL-6000DCX (5175625) 6,000 lb. Capacity/Two-Post Parking Lift/Shared Columns with
Power Unit.
Unit B: PL-6000DCX-Add-On (5175643) Shared Column Add-On Platform and Column Set
with Power Unit.
Refer to the figure below.

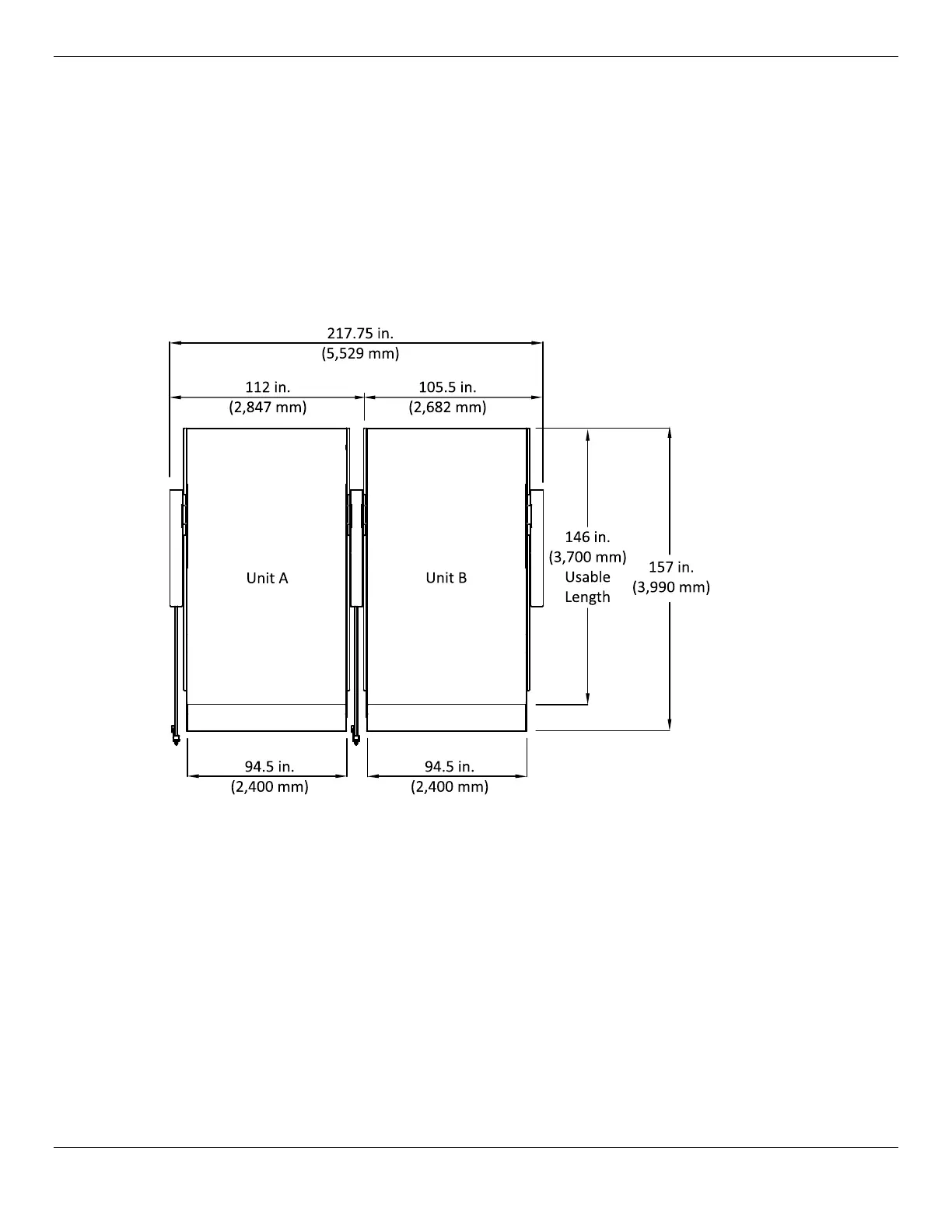

Top View PL-6000DCX
Drawing not to scale.
