PL-6000DC/DCX Two-Post Parking Lift 73 P/N 5900273 — Rev. A6 —July 2024
Wiring Diagrams
⚠ WARNING All electrical work (including the installation of thermal and electrical disconnects)
must be performed by a licensed, Electrician in accordance with all applicable local
and national electrical codes. Damage caused by improper electrical
installation may void your warranty.

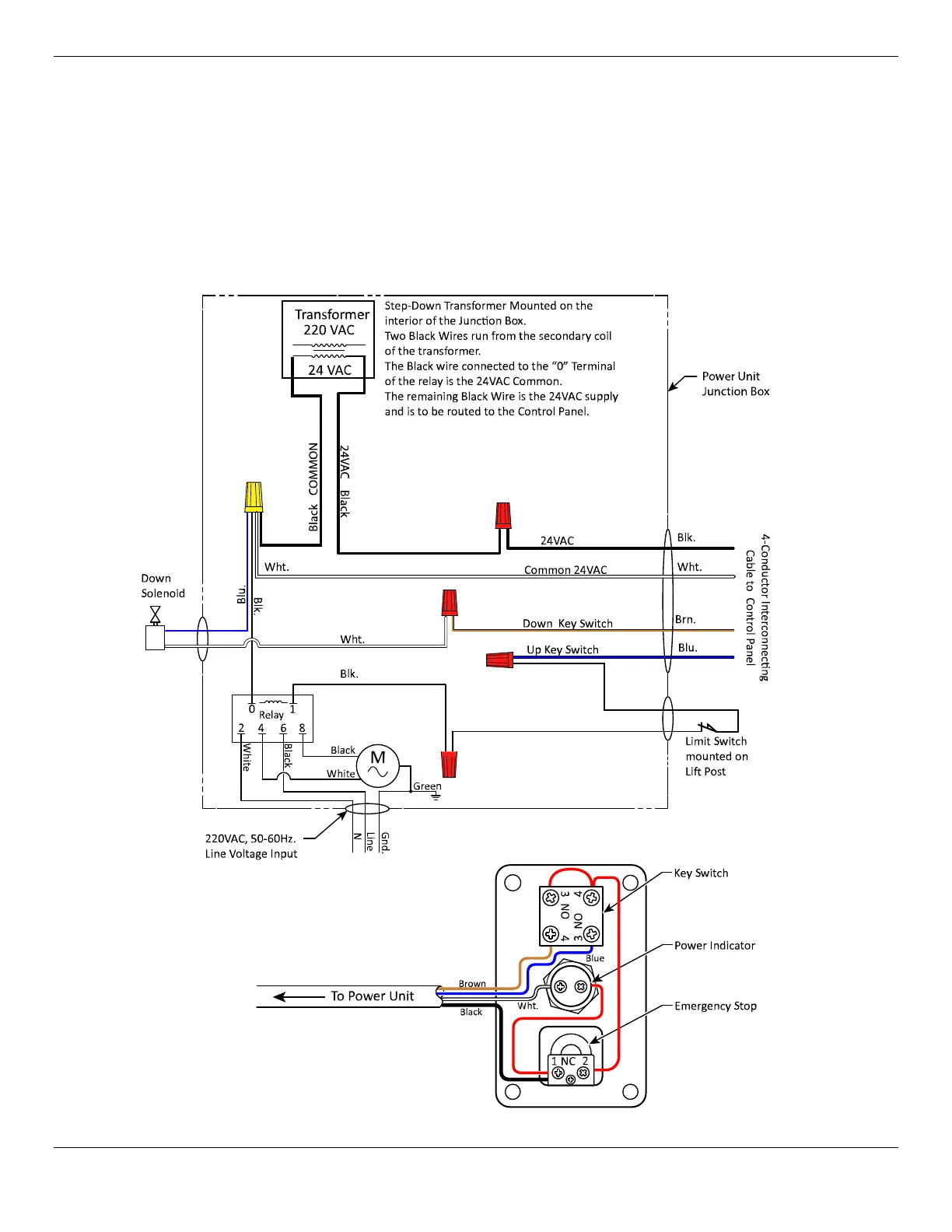

Junction Box Controls Wiring Diagram Power Unit 5585152
Control Panel Wiring Diagram
Drawing not to scale. Control Panel wire side view.
