Adjusting the Safety Locks and Safety Release
Perform a visual inspection of the Safety Release System as the Lift is moving up and down.

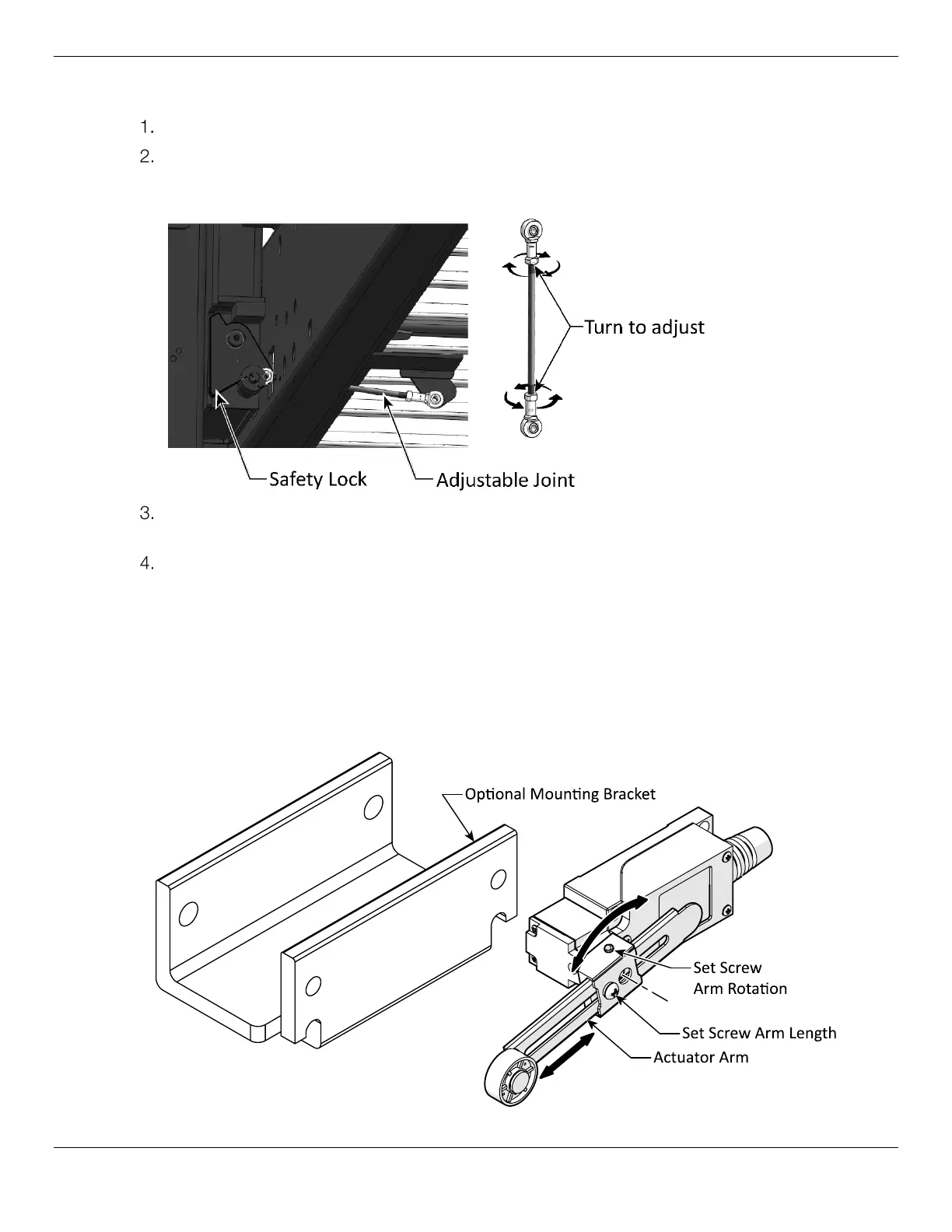

Rotate the two ends of the Adjustable Joint clockwise and counterclockwise to verify that the locks
may be easily unlocked when pulling the Safety Release Handle and will also engage the Locks
when the Safety Release Handle is released. Refer to the figure below.
Operational Test Two. Run the Lift up and down (5) five times while verifying the Safety Locks are
engaging/disengaging correctly, that the Lift does not jerk or jump as it runs.
Verify the Hydraulic Fluid level is correct with the Lift on the Ground.
Adjusting the Limit Switch
The Limit Switch will stop the upward motion of the Lift and may be adjusted within the range of the
Limit Switch Arm travel. When mounted at the top of the Lift Post, adjust the Limit switch to the 5 or 7
o’clock position to trigger when the Lift Carriage contacts the Limit Switch Actuator Arm. Additionally,
the Limit Switch may be mounted to a bracket allowing the switch to be moved up and down the Post
using the Optional Mounting Bracket supplied. Refer to the figure below.
