Components

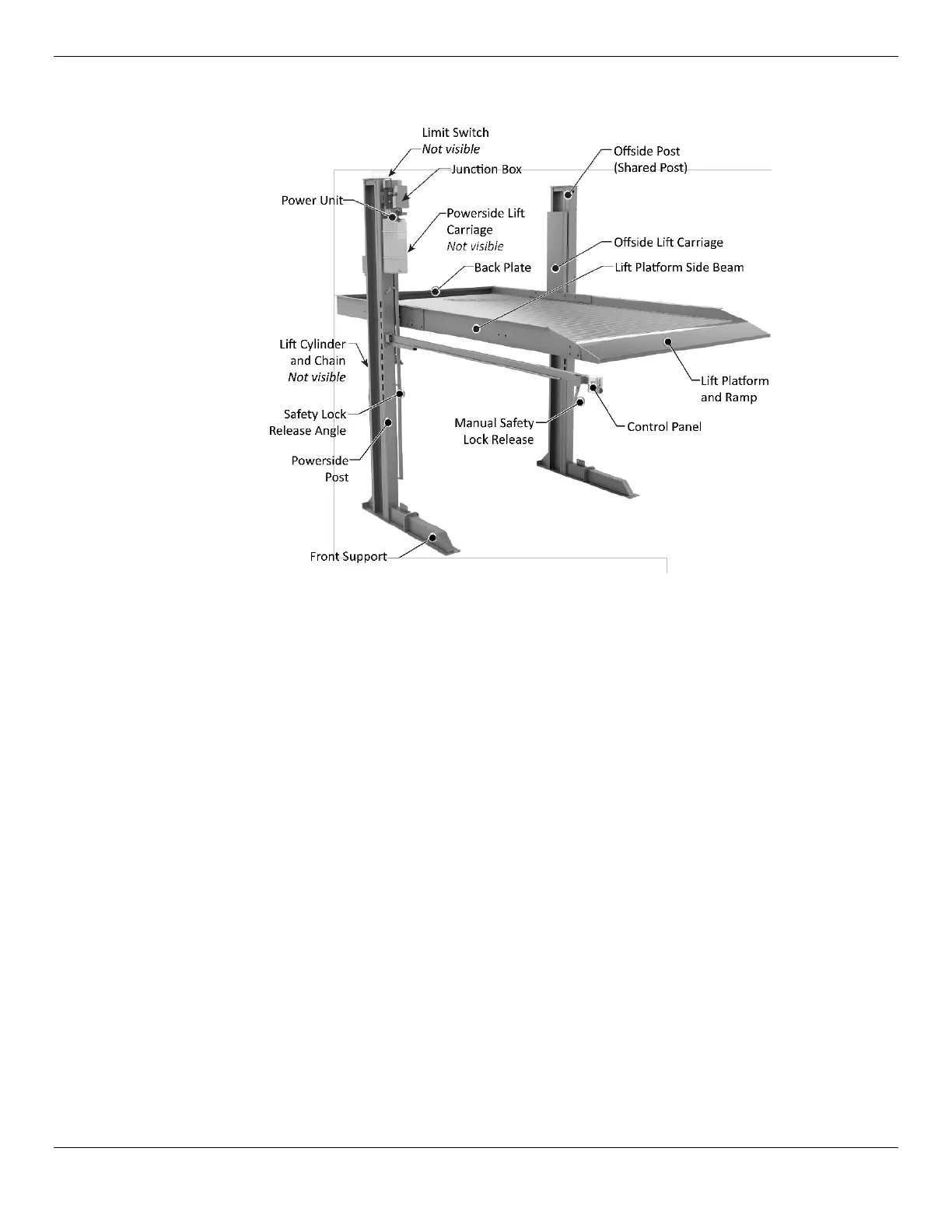

The components of your Lift include:
• Lift Platform and Ramp. The metal surface that holds raised Vehicles.
• Control Panel. Houses the Key Switch, Power Indicator, and Emergency Stop controls.
• Manual Safety Lock Release. Releases the Safety Locks to Lower the Lift Platform.
• Front Support. A bolt-on section of the Lift Post support.
• Powerside Post. The Post (sometimes called a column), on which the Power Unit is mounted.
• Safety Lock Release Angle. A section of the Safety Lock Release mechanism.
• Hydraulic Cylinder. Drives the Lift Chain to raise and lower the Lift Platform.
• Power Unit. Provides hydraulic power to the Hydraulic Cylinders that raise and lower the Lift
Platforms.
• Junction Box. Mounted on the Power Unit. Houses the wiring and electrical controls for the Lift.
• Limit Switch. Limits the upward travel of the Lift.
• Lift Carriage. Rides up and down in the Lift Post driven by a Lift Chain. Attaches to the Lift
Platform.
• Offside (Shared) Post. The Offside Post is opposite the Powerside Post. When installing
multiple Lifts next to each other, the Offside Post becomes the Shared Post. The Shared Post
for the first Lift becomes the Powerside Post for the second Lift.
• Powerside and Offside Lift Carriages. Lift Carriages move up and down in the Lift Posts.
The Carriages are connected to the Lift Platform.
• Lift Platform Side Beam. Part of the structure connecting the Lift Carriage to the Lift Platform.
• Back Plate. Limit of Vehicle travel on the Lift Platform.
