PL-6000DC/DCX Two-Post Parking Lift 53 P/N 5900273 — Rev. A6 —July 2024
To Wire the Junction Box:
Verify power is disconnected and locked-out before beginning any work on the Lift.
Verify the control panel wiring. A Control Panel Wiring Diagram is included for your reference.
Connect the Control Panel wiring to Power, the Limit Switch, Power Unit and Solenoid as indicated
by the
Wiring Diagram.
Verify the wiring against the Wiring Diagram before applying Power to the Lift.
First Operational Test and Level Adjustment
Apply power to the Lift and raise the platform approximately 70 in. / 1800 mm.
Adjust the Balance Chain. Using a four-foot Level, measure and adjust the level of the platform
using the threaded rod on top of the Offside Post. Check the level condition of the platform in at
least four places to verify the Platform is level front to back and side to side.
Verify the levelness and perpendicularity of the Offside Post. Verify that both posts are parallel to
each other. Shim Lift Posts as required to make perpendicular. Do not exceed .5 in (12.7 mm) in
Shim height.
Operational Test one. Operate the Lift from ground to maximum height at least two times.

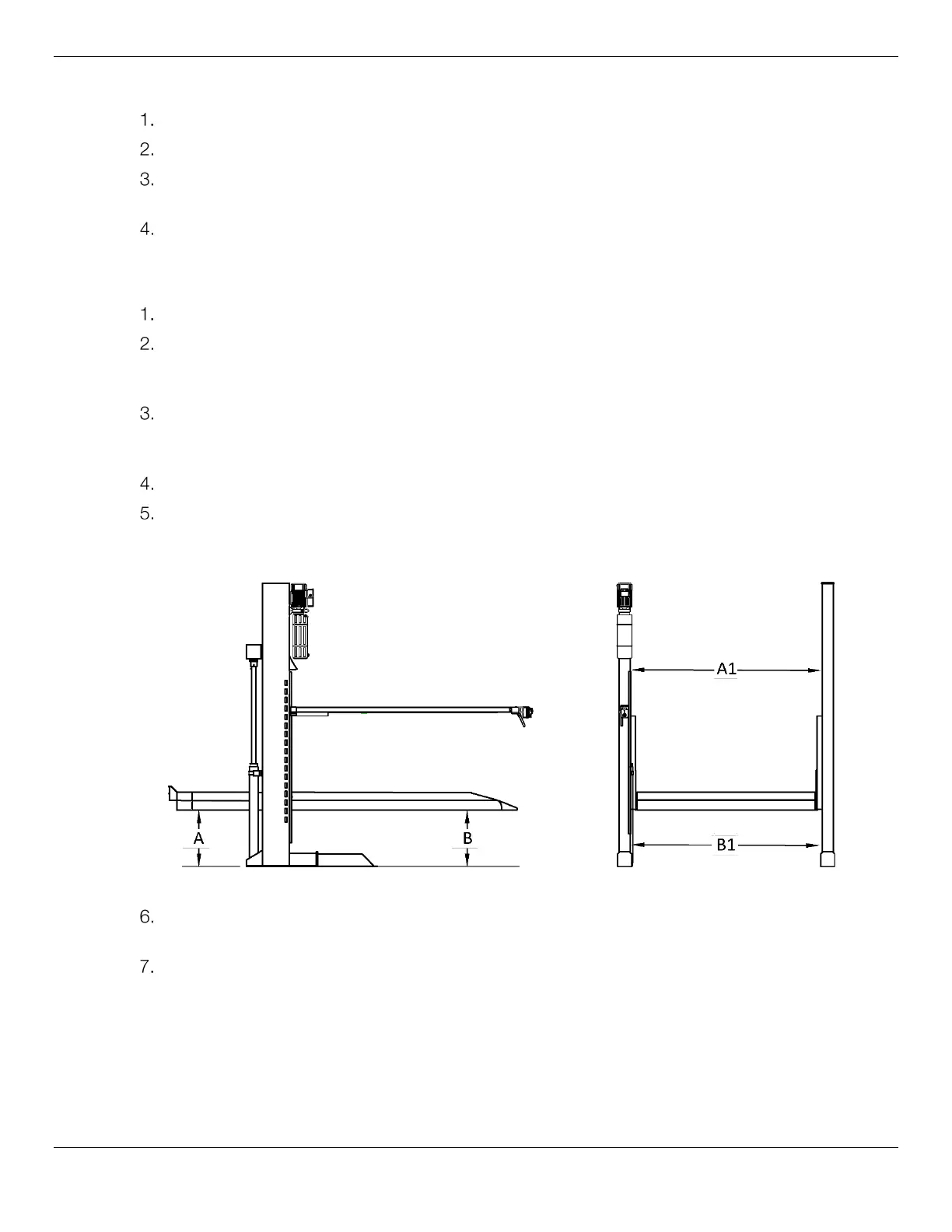

At the completion of this test, verify the Posts are parallel and the Lift Platform is level. A = B and
A1 = B1. Refer to the figure below.
Measure the diagonal distances of the Lift Platform corner to corner. Verify the diagonals are equal
within .25 in. (5mm). Adjust as required to make the diagonals equal.
Tighten all bolts and fasteners on the Platform and the Lift Structure, except the Anchor
Bolts. Final tightening of the Anchor bolts will be completed after drilling the Offside Post Anchors.
