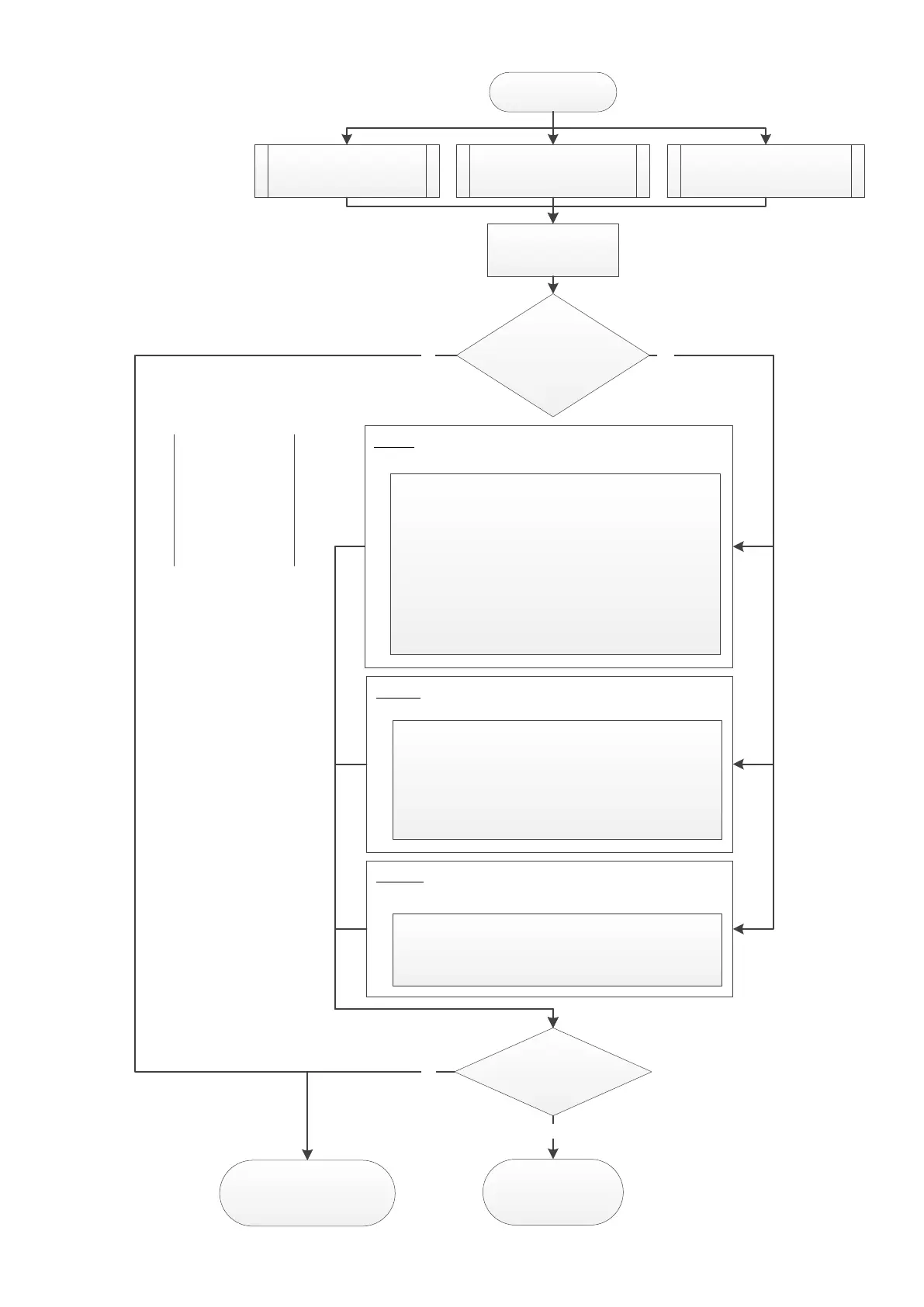

12.2 Test procedure overview
CLASS I
CLASS II
CLASS III
VDE 0701-0702
Devices without PE,
Class II
Devices with
extra-low voltage (SELV/ PELV),
Class III
Devices with PE,
Class I
Visual inspection
(standard, advanced,
customer-specific)
Visual inspection passed?
 RPE (protective conductor resistance)
 RInsu-1 (insulating resistance LN-PE)
 RInsu-2 (insulating resistance sec.-PE)
 RInsu-3 (insulating resistance LN-sec.)
 RInsu-4 (insul. res. LN-access. parts without PE)
 IPE (protective conductor current)
 ICont (contact current)
 Funct. (functional test)
 Cable (continuity test)
 Ua (voltage at output)
 PRCD (portable residual current protection device)
 RInsu-1 (insulating resistance LN-test body)
 RInsu-2 (insulating resistance sec.-test body)
 RInsu-3 (insulating resistance LN-sec.)
 ICont (contact current)
 Funct. (functional test)
 Cable (continuity test)
 Ua (voltage at output)
 RInsu-1 (insulating resistance LN-test body)
 RInsu-2 (insulating resistance sec.-test body)
 RInsu-3 (insulating resistance LN-sec.)
 Ua (voltage at output)
Test passed?
Test failed
Test successful
No
No
Individual tests:
Specification,
selection and order
of the individual
tests are determined
by the qualified
electrician carrying
out the test.
Yes
Yes
