Benning ST 760 - Individual Tests: Device Leakage Current (ILeak) Measurement; Performing ILeak Measurement

53

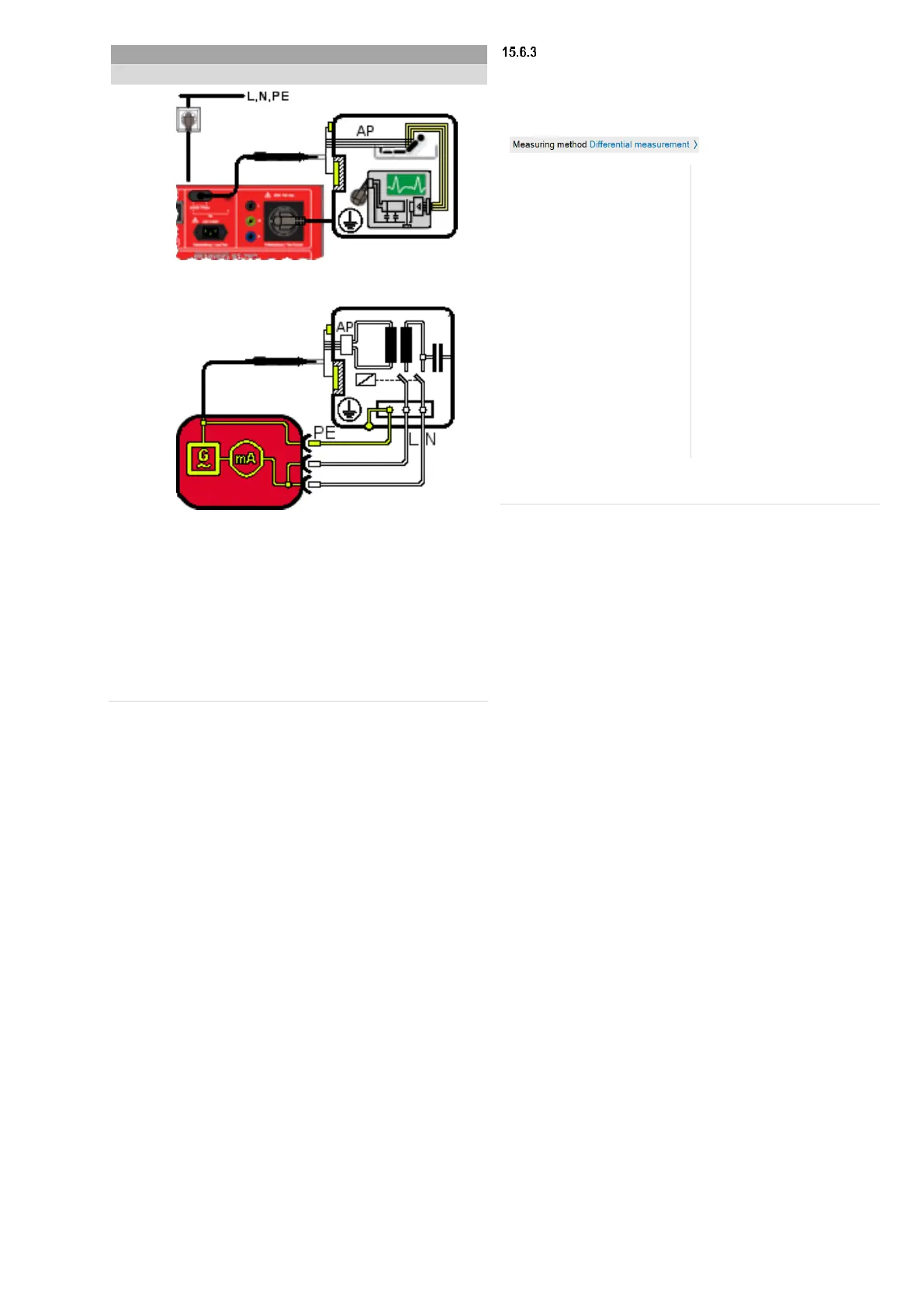

Class I, ILeak, alternative leakage current measurement
L and N conductors are bridged
Connection diagram
VDE 0751-1
Circuit diagram
VDE 0751-1
 Insert the shock-proof plug of the portable test sample into the
test socket of the appliance tester.
 The testing voltage is applied and must be tested in all switch
positions (device functions).
 Use the test probe to scan all accessible conductive parts.
 If the measured value of the alternative leakage current
measurement exceeds 1 mA, the direct current measurement
must be carried out.
Measurement
 Make sure that the test sample is free of mains voltage.
 Connect the mains plug of the test sample to the test socket of
the appliance tester.
 Select a measuring
method.
Direct / differential current
measuring method
Alternative leakage current
measurement
 Tap the “Start” button.
 Tap the “Start” button.
 Use the test probe to scan all
of the following parts of the test
sample:
o Active parts,
o Accessible conductive parts
connected to the housing.
 Use the test probe to scan all
of the following parts of the test
sample:
o Active parts,
o Accessible conductive parts
connected to the housing.
 Tap the “L<->N” button.
 Use the test probe again to
scan all of the following parts of
the test sample:
o Active parts,
o Accessible conductive parts
connected to the housing.
 Tap the “Stop” button to stop the test.
The “Test result” screen opens.
