Benning ST 760 - Individual Tests: Protective Conductor Current (IPE) Measurement; Performing IPE Measurement

48
Class I, IPE, alternative leakage current measurement
Only after passed RInsu measurement

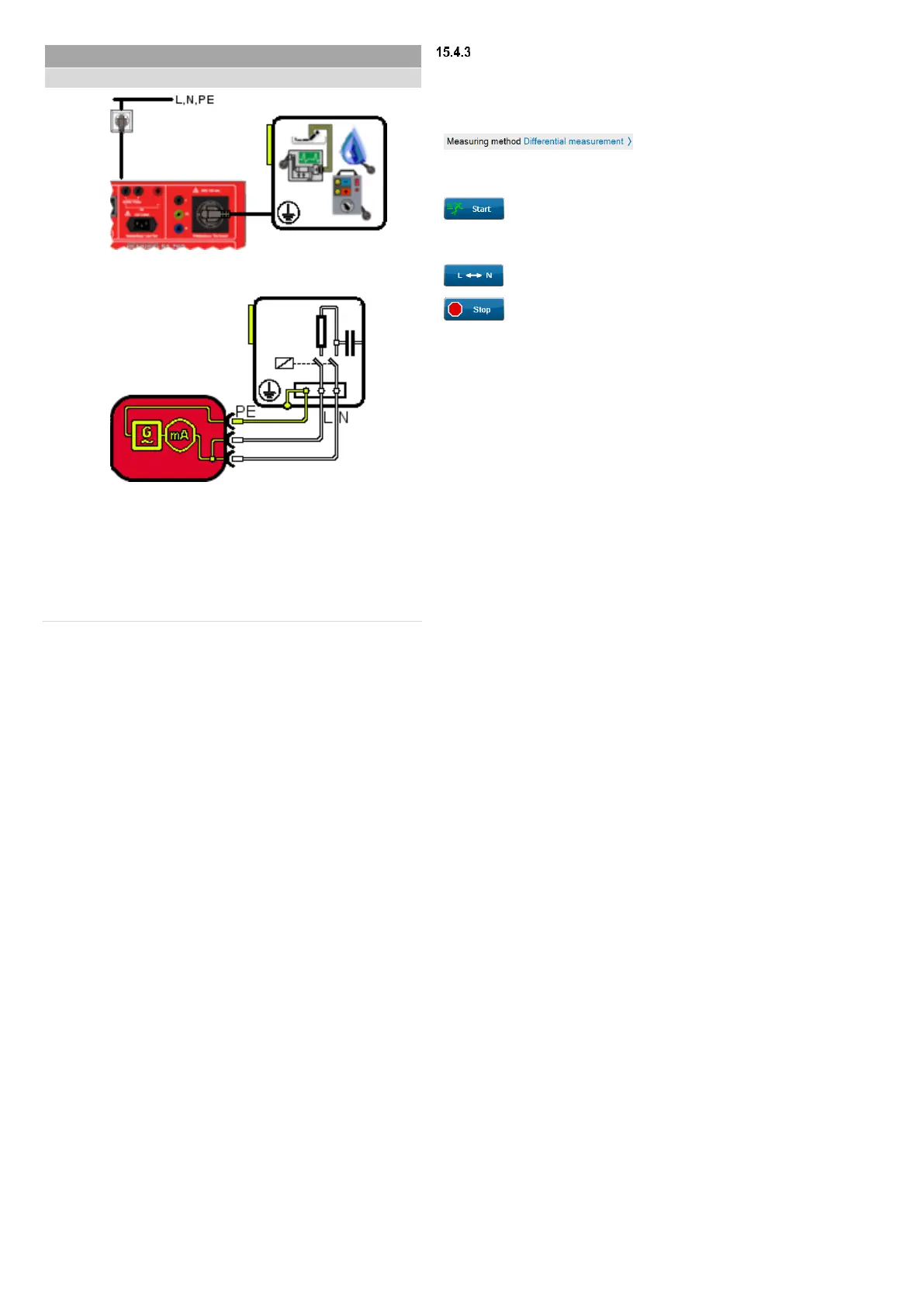

Connection diagram
VDE 0701-0702, VDE 0544-4, VDE 0751-1
Circuit diagram
VDE 0701-0702, VDE 0544-4, VDE 0751-1
 Insert the shock-proof plug of the portable test sample into the
test socket of the appliance tester.
 The testing voltage is applied and must be tested in all switch
positions (device functions).
 Please observe inductive/capacitive circuits.
Measurement
 Make sure that the test sample is free of voltage.
 Connect the mains plug of the test sample to the test socket of
the appliance tester.
 Select a measuring
method.
Measurement
 Tap the “Start” button.
o Observe the measured value
(the measured value must be lower
than (<) the limit).
 Change the polarity of the mains voltage at the test
socket.
 Tap the “Stop” button to stop the test.
The “Test result” screen opens.
