BENSHAW RSi GX Series User Manual

Keypad and Parameter Group Setting
4.1 Keypad and Parameter Group Setting
4.1.1 Keypad Description

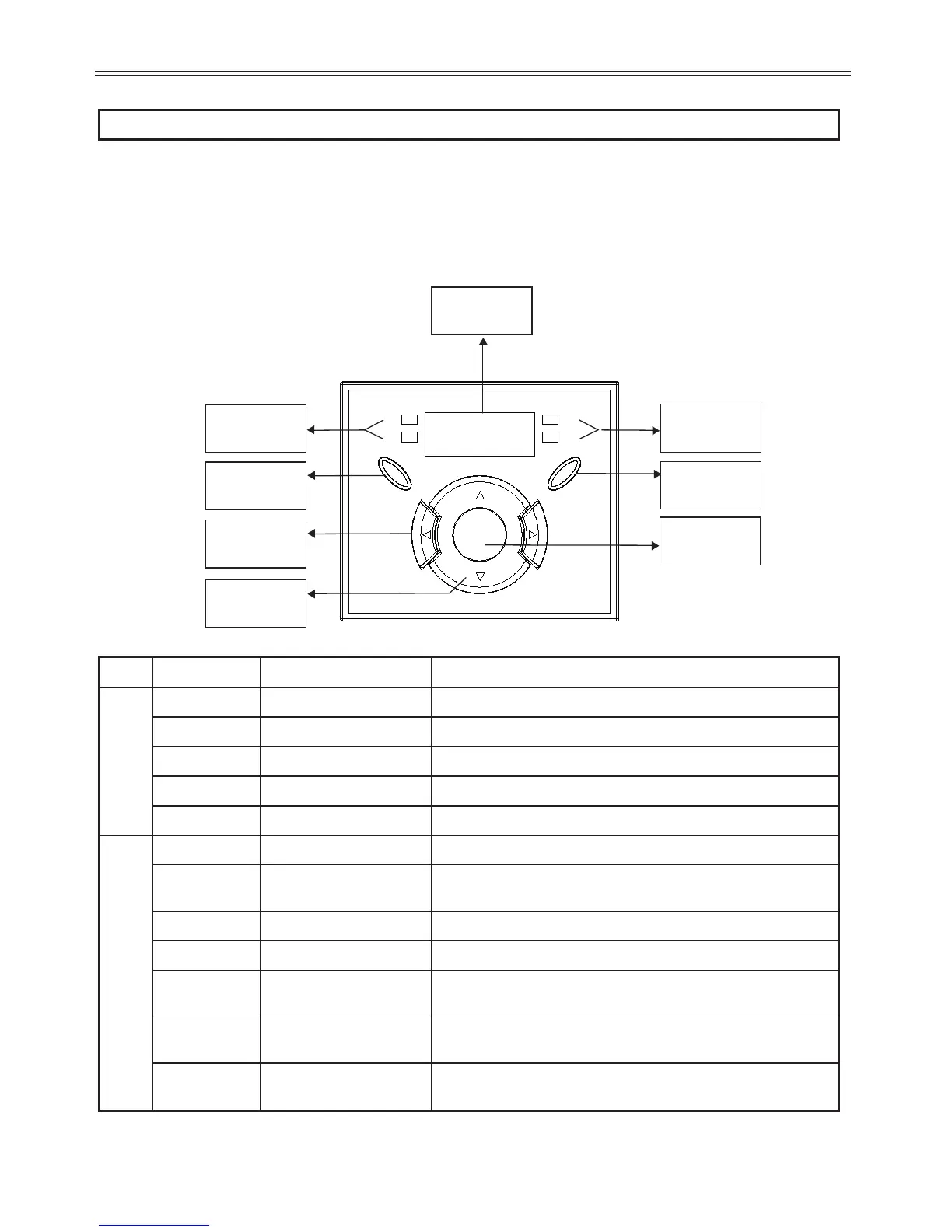

The RSi-GX 7-segment keypad displays up to 4 english letters and numbers, and the user
can directly check various settings of the drive.The following is an illustration of the
keypad and the functions of each part.
36
4 - Operation
Class Display Name Description
LED
FWD Forward Run Display Lit during forward run. Blinks when a fault occurs.
REV Reverse Run Display Lit during reverse run. Blinks when a fault occurs.
RUN Operating. Lit during operation. Blinks when a fault occurs.
SET Setting. Lit during parameter setting. Blinks when a fault occurs.
7 Segment 7 Segment LED Displays operation status and parameter information.
Keys
RUN Run Key Run command.
STOP/RESET Stop/Reset key
Stop: Stop command during operation.
Reset: Reset command when fault occurs.
p Up Arrow Key Used to scroll through codes or increase parameter value.
q Down Arrow Key Used to scroll through codes or decrease parameter value.
t Left Arrow Key
Used to jump to other parameter groups or move cursor
to the left to change the parameter value.
u Right Arrow Key
Used to jump to other parameter groups or move cursor
to the right to change the parameter value.
 Enter Key
Used to set the parameter value or save the changed
parameter value.
RUN
ENT
RESET
STOP
SET
RUN
FWD
REV
LCD Display
(7 Segment)
Set LED
Run LED
Forward LED
Reverse LED
Run Key
Stop/Reset
Key
Enter Key
Left/Right
Arrow Keys
Up/Down
Arrow Keys
