BENSHAW RSi GX Series User Manual

Frequency Setting and Basic Operation

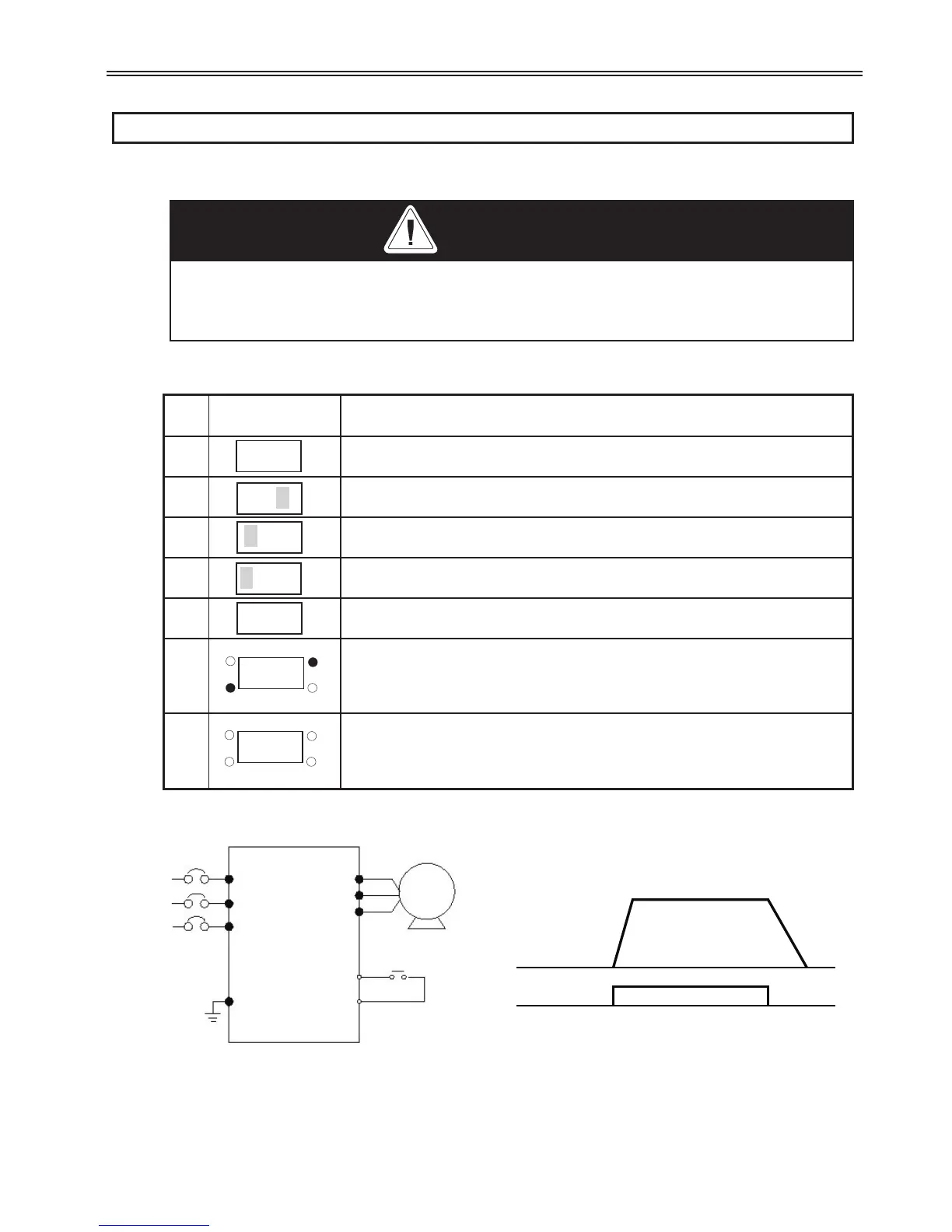

4.3 Frequency Setting and Basic Operation
•
Frequency Setting via keypad and operating via terminals
43
4 - Operation
The following instructions are given based on the fact that all parameters are set to
factory defaults. Results could be different if parameter values are changed. In this case,
initialize parameter values back to factory defaults and follow the instructions below.
CAUTION
1
Apply AC input power to the drive.
2
When 0.00 appears, press the Ent () key once.
3
The second digit in 0.00 is lit as shown left.
Press the Left (t) key three times.
4
00.00 is displayed and the first 0 is lit.
Press the Up (p) key.
5
10.00 is set. Press the Ent () key once.
10.00 is blinking. Press the Ent () key once.
6
Run frequency is set to 10.00 Hz when the blinking stops.
Turn on the switch between P1 (FX) and CM terminals.
7
RUN lamp begins to blink with FWD (Forward Run) lit and accelerating
frequency is displayed on the LED.
When target run frequency 10Hz is reached, 10.00 is displayed.
Turn off the switch between P1 (FX) and CM terminals.
8
RUN lamp begins to blink and decelerating frequency is displayed on
the LED.
When run frequency is reached to 0Hz, Run and FWD lamp turn off and
10.00 is displayed.
0.00
10.00
10.00
10.00
0.00
00.00
10.00
Freq.
P1(FX)-CM
ON
OFF
10 Hz
Operating pattern
3P
AC
Input
G
P1 (FX)
CM
U
R
V
S
W
T
Motor
Wiring
