Low Freq Th FUN 33
Timer 1 Type FUN 34
Timer 1 Time FUN 35
FUN: Timer 1 Type
34 On Delay
FUN: Timer 1 Time
35 1.0 sec
FUN: Low Freq Thr
33 0.0 Hz
7 - PARAMETER DESCRIPTION
LCD Display
Range 0 to Max Freq (Default 0.00 Hz)
Description Low Frequency Threshold is a comparator between the drive output frequency and the value entered into
the Low Freq Thr. When the drive output frequency goes below this set level, the associated
digital output will be activated. The digital outputs are congured in I/O 08-I/O 11.
LCD Display
Range On Delay, Off Delay, On/Off Delay (Default On Delay)
Description The drive has 2 internal timers. A digital input can be programmed to control the timer “coil” and a digital
output can be programmed to be the timer “contact”. See I/O 01 to I/O 06 and I/O 08 to I/O 11 starting on
page 97 to program the timer input and output. The timer can be congured for On or Off Delay or for
both On and Off Delay. The time value is set by FUN 35 - Timer 1 Time. If congured for On and Off
Delay, the time value is the same for the On and Off Delay.
LCD Display
Range 0.00 to 320.00 seconds (Default 1.0s)
Description The Timer 1 Value is the time setting for Timer 1.

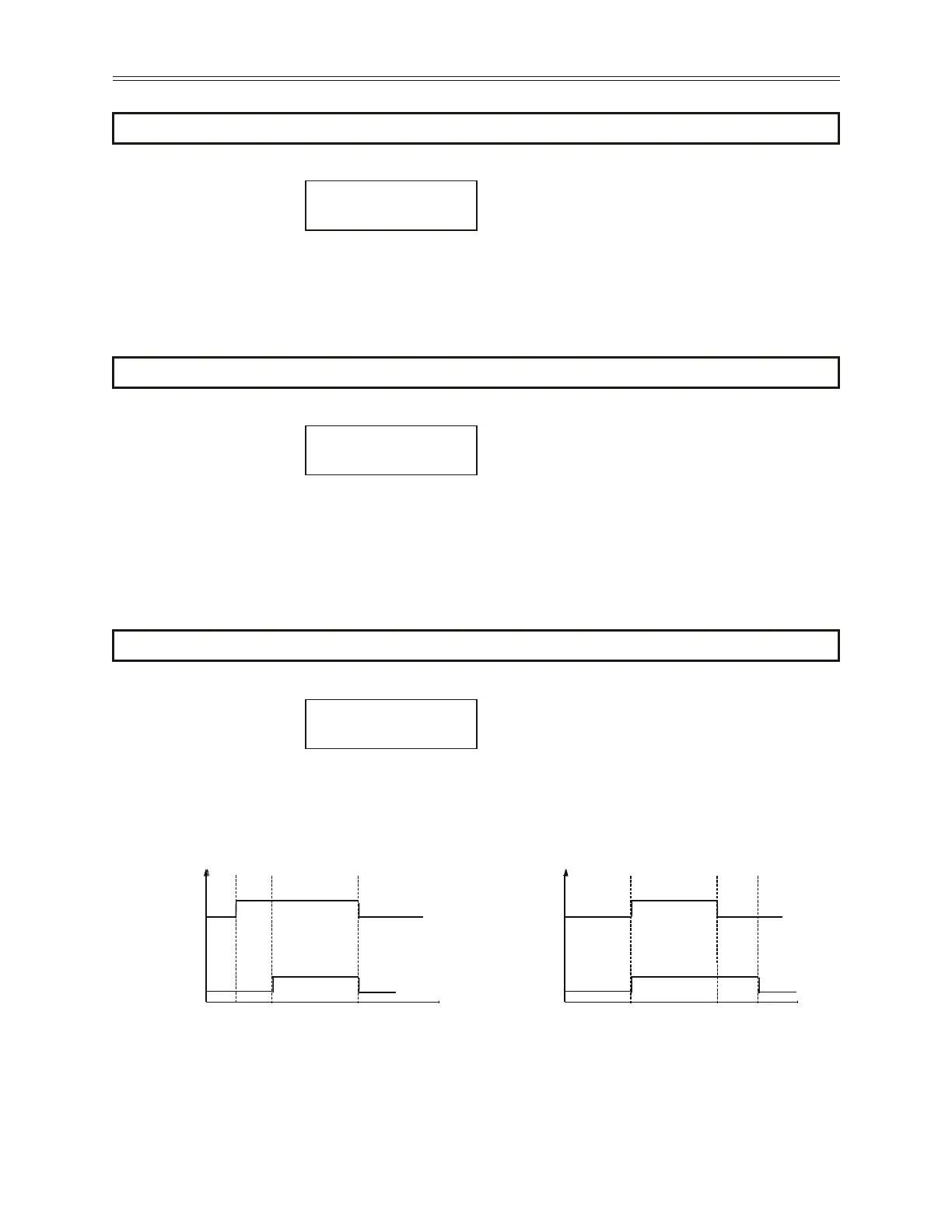

On
Digital
Input
Digital
Output
Off
On
Off
Time Delay
FUN 35
t
On Delay
On
Off
On
Off
Time Delay
FUN 35
t
Off Delay
Digital
Input
Digital
Output
