Density Meter LB 444 SECTION 3. INSTALLATION
32

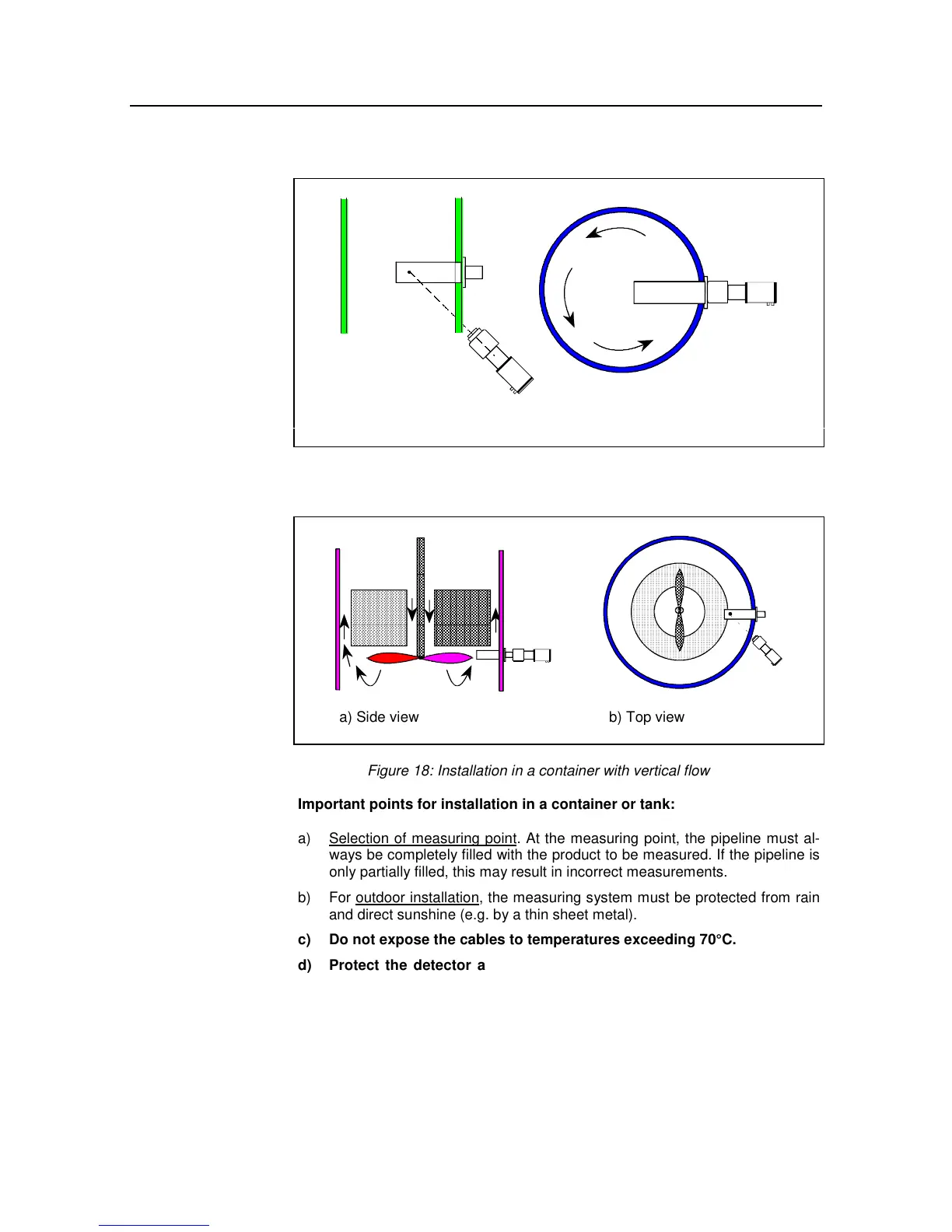

a) Side view b) Top view
Figure 17: Installation in a container with horizontal flow
a) Side view b) Top view
Figure 18: Installation in a container with vertical flow
Important points for installation in a container or tank:
a) Selection of measuring point. At the measuring point, the pipeline must al-
ways be completely filled with the product to be measured. If the pipeline is
only partially filled, this may result in incorrect measurements.
b) For outdoor installation, the measuring system must be protected from rain
and direct sunshine (e.g. by a thin sheet metal).
c) Do not expose the cables to temperatures exceeding 70°C.
d) Protect the detector against temperatures > 50°C by a water-cooling
jacket.
e) Prevent water entry via cable bushings.
f) Avoid vibration at the detector.
g) The product temperature for temperature compensation must be measured
directly next to the density measurement.
