Density Meter LB 444 SECTION 3. INSTALLATION
34
Cooling Medium
Water should preferably be used as the cooling medium, because air does not
ensure adequate cooling with high temperatures. The water must be clean to
avoid dirt deposits in the cooling jacket.
The enclosed diagram shows the quantity of cooling water required for the de-
tectors LB 44... / LB 54.... The ambient temperature was taken into considera-
tion when calculating the required quantities, but not heat emission by the sur-
rounding components, e.g. containers, pipelines, etc.
10
40°C
30°C
20°C
10°C
Ambient detector temperature °C
Water flow rate for scintillation counter
Inlet water temperature in °C
Flow rate l/h
max. pressure 6 kg/cm
2
50
100
150
200
220
60 80 100 150 200

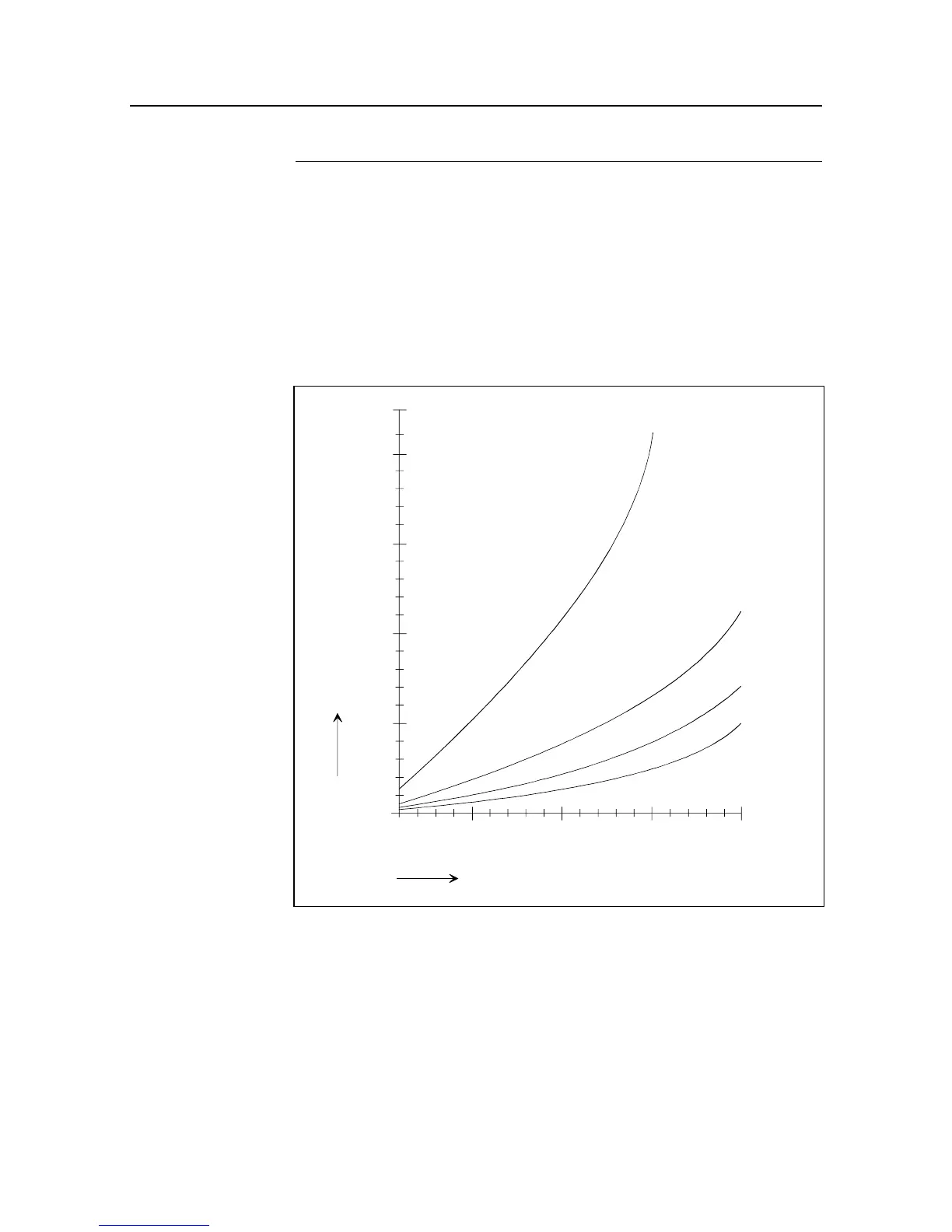

Figure 20: Required amount of water-cooling
